KYStar S4 DVI LED Sending Box – 2.6 Million Pixels
$ 248.00
DVI-D LED sending box with four network outputs and a stated 2.6-million-pixel capacity. Supports EDID management, USB control, backup-data restoration and automatic brightness control with a suitable light sensor.
1000 in stock
KYStar S4 DVI LED sending box

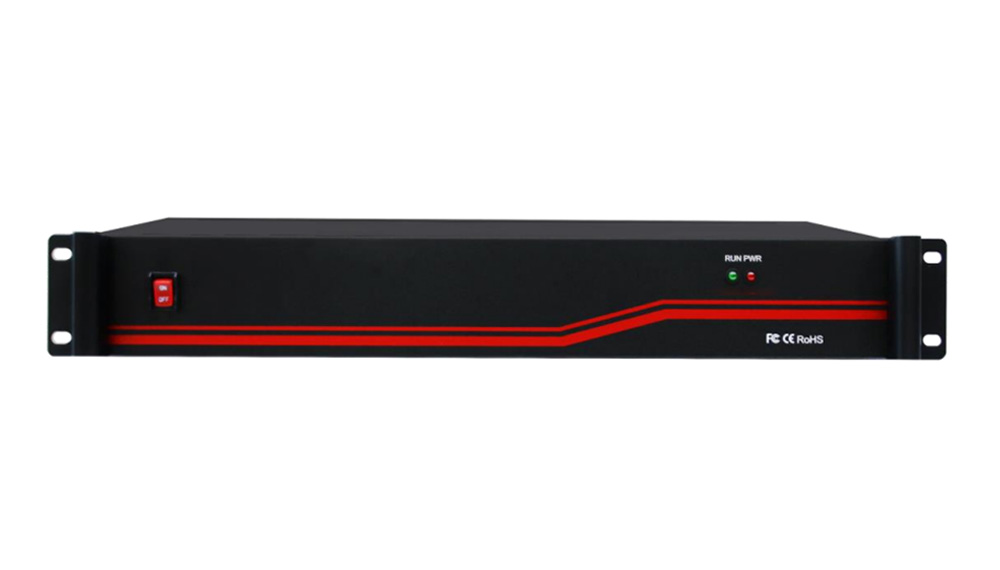

The KYStar S4 converts a DVI video signal into network data for compatible LED receiving cards. It provides four network outputs and a stated total capacity of 2.6 million pixels, with an independent power supply and front-panel power and run indicators.
Configuration, audio and brightness control

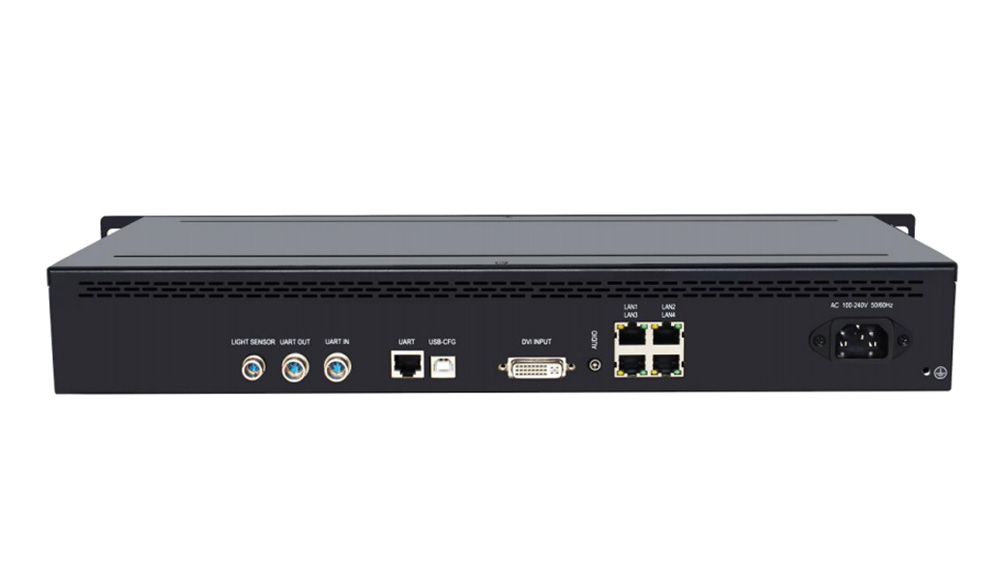

The S4 supports standard and custom input resolutions through EDID management. USB provides control from a host computer, and stored backup data supports one-click restoration. A 3.5 mm stereo input enables audio transmission when used with a compatible multifunction card.
A light-sensor connection allows automatic brightness control using a suitable sensor. UART input and output connections support cascading for automatic brightness control.
Technical specifications
| Parameter | Specification |
|---|---|
| Video input | 1 × DVI-D; custom input resolutions supported |
| Network outputs | 4 |
| Total pixel capacity | 2.6 million pixels |
| Maximum per-port capacity | 655,360 pixels |
| Per-port width / height limits | 4,000 / 2,000 pixels; separate limits within port capacity |
| Audio input | 1 × 3.5 mm stereo input |
| PC control | USB |
| Brightness control | Light-sensor port and UART cascade connections |
| Power input | 100–240 V AC, 50/60 Hz, 2.1 A |
| Power consumption | 102 W |
| Operating temperature | 0–45°C |
| Net weight | 5 kg |
| Dimensions in specification table | 432 × 240 × 66 mm (L × W × H); see dimensional note below |
Dimensional note: The PDF specification table and its mechanical drawing show different measurements. The table lists 432 × 240 × 66 mm, while the drawing includes mounting and enclosure dimensions that do not match that set. Confirm the applicable enclosure and mounting measurements before installation.
Frequently asked questions
Does the S4 have an HDMI input?
The S4 specification lists one DVI-D video input. It does not list an HDMI input.
What is the S4 pixel capacity?
The stated total capacity is 2.6 million pixels. Each of its four network outputs supports up to 655,360 pixels, subject to the listed width and height limits.
Can the S4 transmit audio?
It has a 3.5 mm stereo audio input. Audio transmission requires a compatible multifunction card.
Can screen brightness change automatically?
Yes. A suitable light sensor can connect to the light-sensor port for automatic brightness adjustment. The unit also has UART connections for brightness-control cascading.
Download Specification:
Kystar S4 LED Screen Control System Sending Box Specification
| Weight | 5 kg |
|---|
