Linsn X2000 LED Video Processor with Integrated Sender
$ 251.00
Linsn X2000 two-in-one LED video processor with four outputs, PIP, scaling and HDMI/DVI inputs. Check the hardware-specific loading limit and optional SDI.
9998 in stock
Product overview

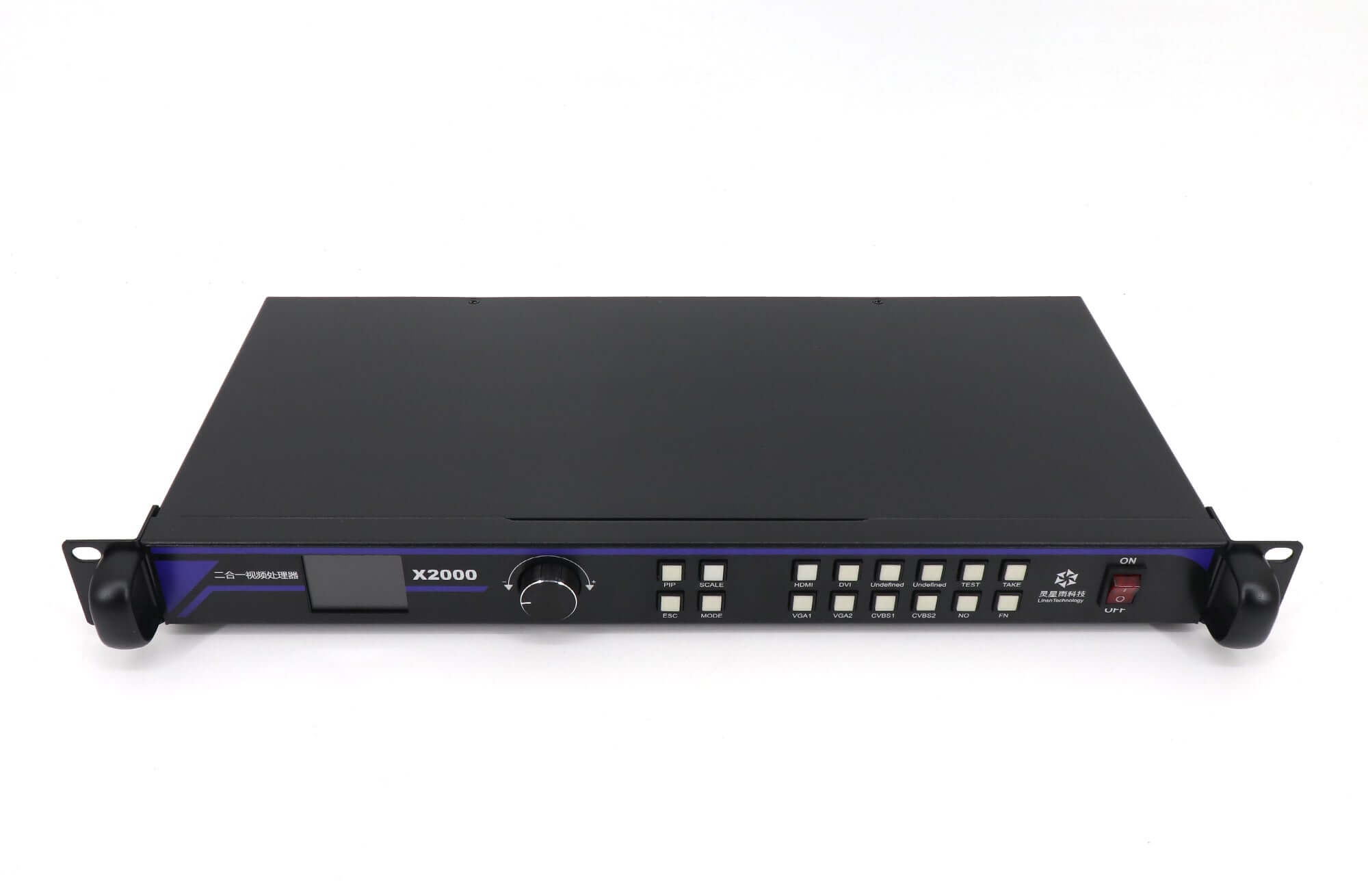

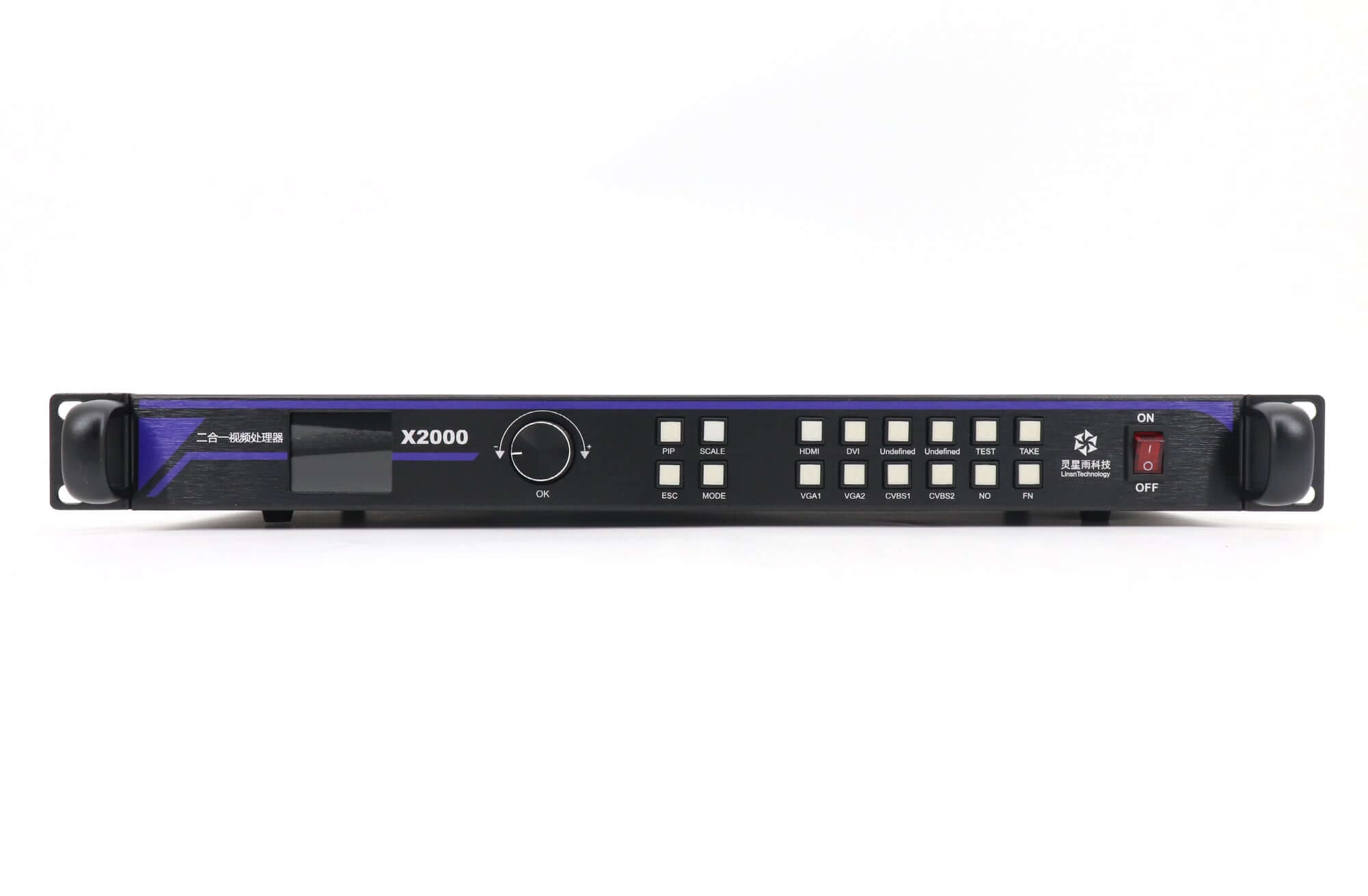

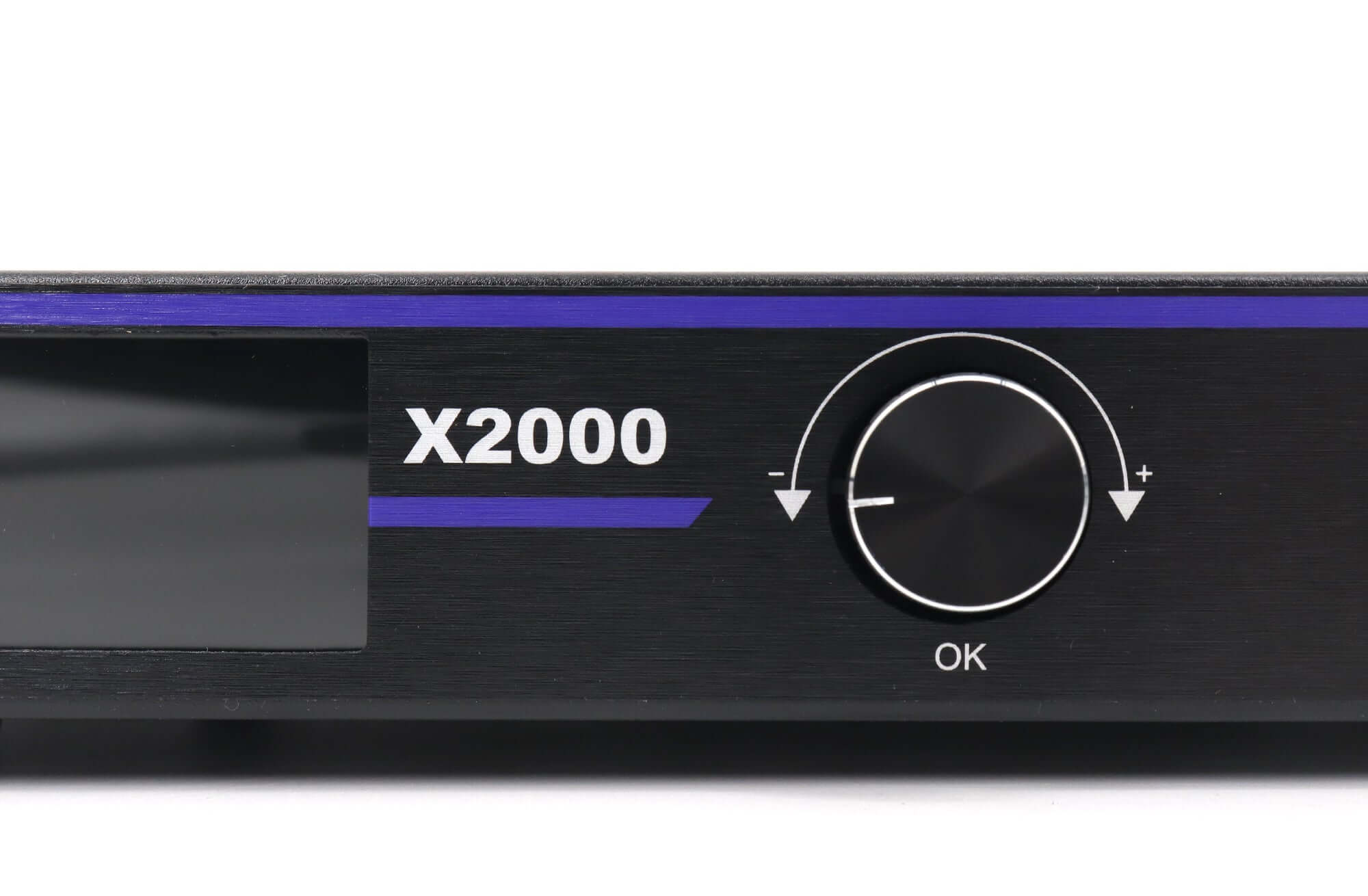

The Linsn X2000 combines a video processor and LED sender in one unit. It offers scaling, two-image display, picture-in-picture and source switching with fade effects. This listing requires Linsn receiving cards. The attached V3.0 manual for hardware V4 specifies a total LED load of 2.3 million pixels through four outputs.
Product specifications
| Parameter | Specification |
|---|---|
| Model / document | X2000; document V3.0, hardware V4, January 2020 |
| LED output | 4 network ports |
| Documented total load | 2.3 million pixels; original listing stated 2.62 million—see version note |
| Per-port maximum | 650,000 pixels, subject to the device total |
| Maximum width / height | 3840 pixels wide or 1920 pixels high, within total load |
| Video signal types | HDMI 1.3, DVI, VGA, CVBS; optional SDI |
| Digital input timing | HDMI 1.3 and DVI: up to 1920 × 1080 at 60 Hz |
| Processing | Full-screen and pixel-to-pixel scaling; PIP; two-image display; fade/seamless switching |
| Outputs for monitoring | DVI and VGA |
| Configuration | USB with LEDSet; UART cascade |
| Power | AC 100–240 V, 50/60 Hz; 19 W rated |
| Operating environment | −20°C to +70°C; 0–95% RH |
| Dimensions | 482 × 241 × 44.5 mm |
| Weight | 3 kg |
Check the hardware and source combination
The original page states a 2.62-million-pixel load, while the attached V3.0 manual repeatedly states 2.3 million for hardware V4. Do not derive total capacity by adding the individual port ratings. Match the hardware version to its specification before sizing the display.

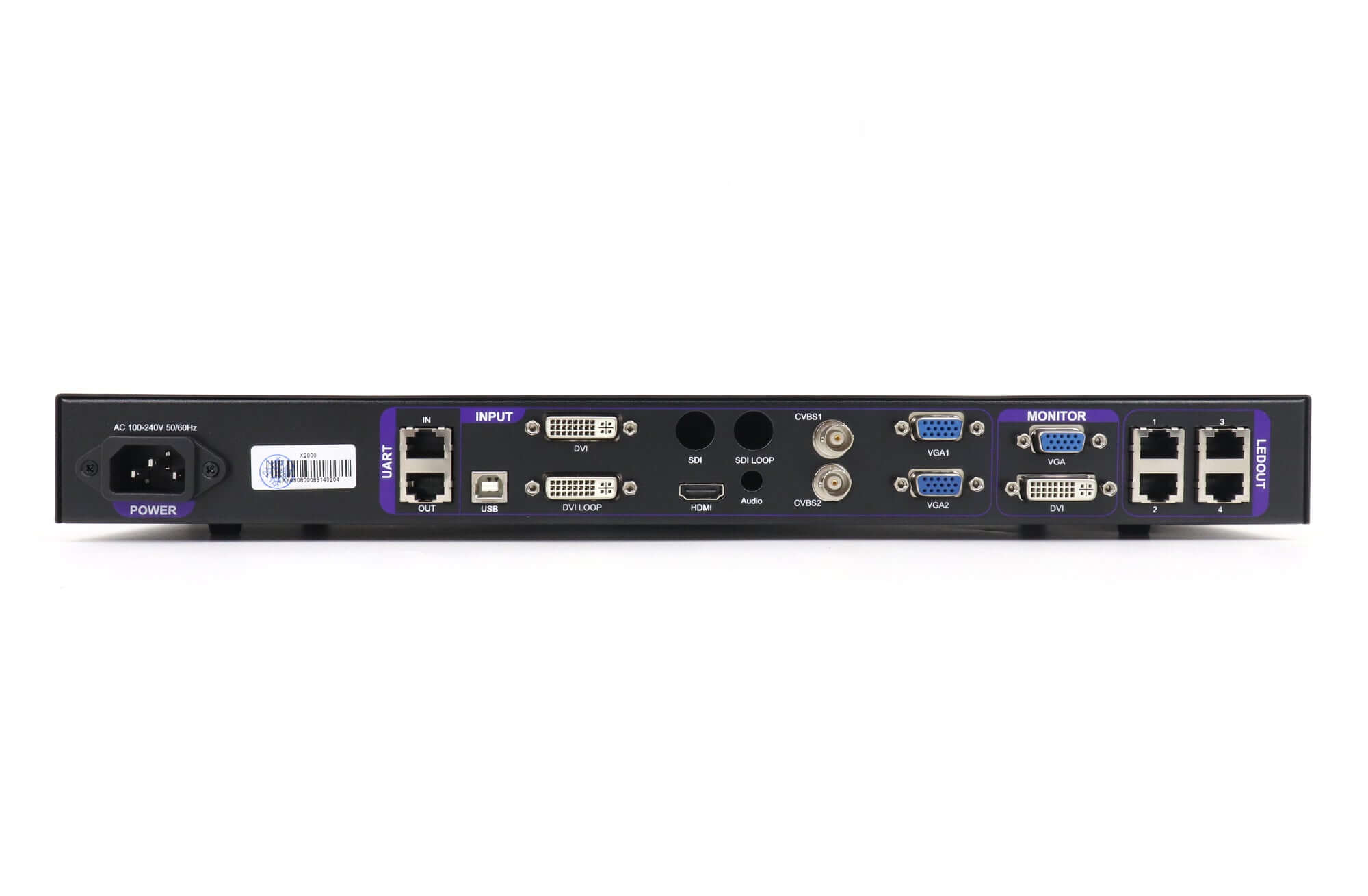

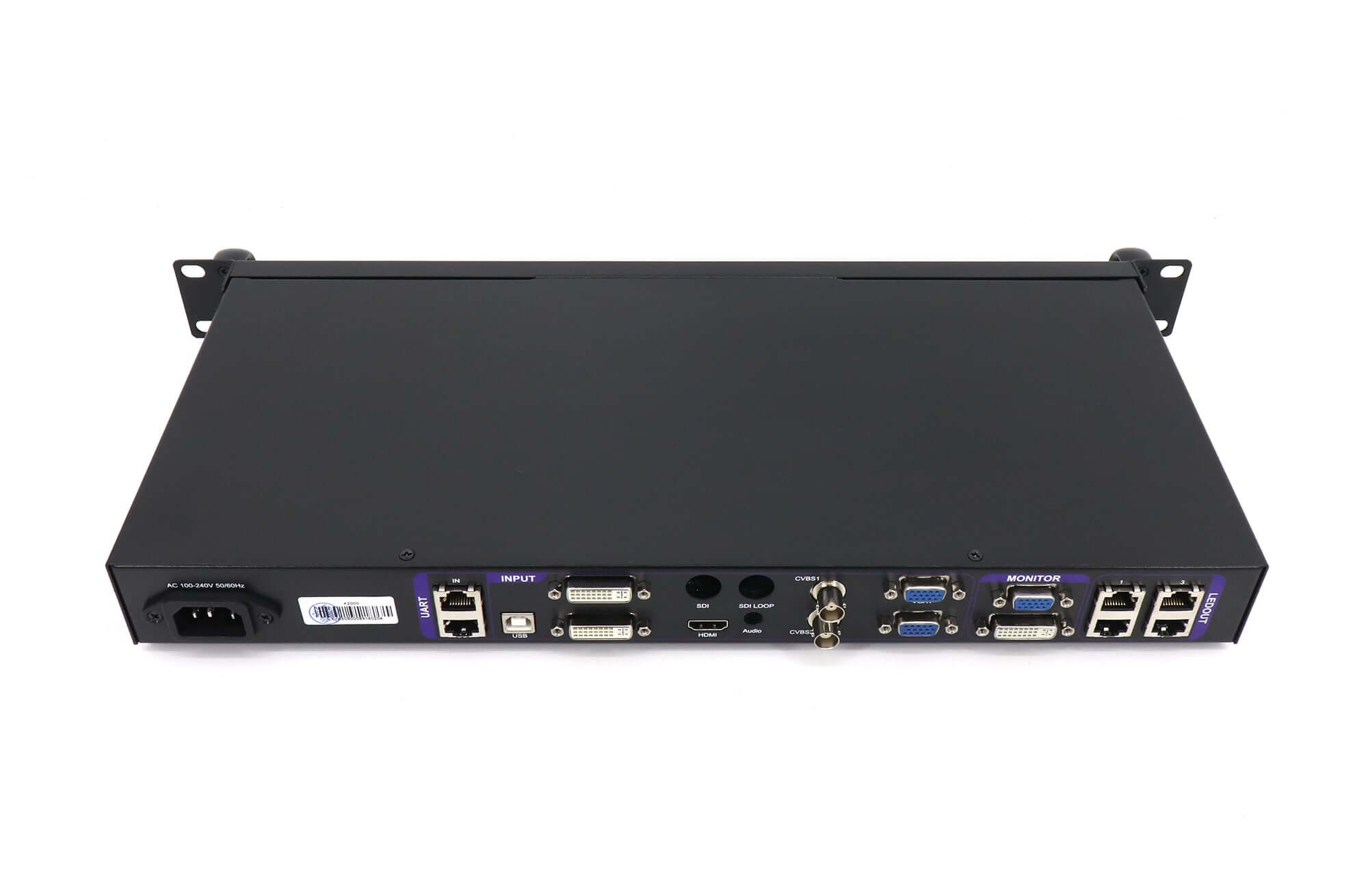

Input counts also differ between the original description, the manual’s front-panel discussion and its input table. HDMI and DVI are each listed once; confirm the physical VGA and CVBS connectors on the supplied version. SDI input and loop output are optional.
PIP availability depends on the pair of inputs. Consult the manual’s source-collision table when planning two simultaneous images. HDMI audio output through a multifunction board is supported by the manual and requires the appropriate additional hardware.
Frequently asked questions
1. Does the X2000 need a separate LED sending card?
The X2000 is described as a two-in-one processor with an integrated sender and four LED output ports. This product listing specifies Linsn receiving cards.
2. Is the X2000 capacity 2.3 or 2.62 million pixels?
The original listing says 2.62 million, but the attached V3.0 manual for hardware V4 says 2.3 million. Verify the unit’s hardware revision and matching documentation before choosing the screen size.
3. Can X2000 show two sources with picture-in-picture?
Yes, but not every input pair is supported. Use the PIP input-source collision table in the manual to check the proposed combination.
4. Is SDI included on every X2000?
No. The specification identifies SDI input and SDI loop output as optional. Confirm that the SDI module is installed if it is required.
