Magnimage MIG-F4 4K Video Mosaic Box
$ 1,018.00
Magnimage MIG-F4 multi-screen video processor with two DP and two HDMI inputs, customizable output resolution and four-output mosaic layouts.
1000 in stock
MIG-F4 multi-screen video processing

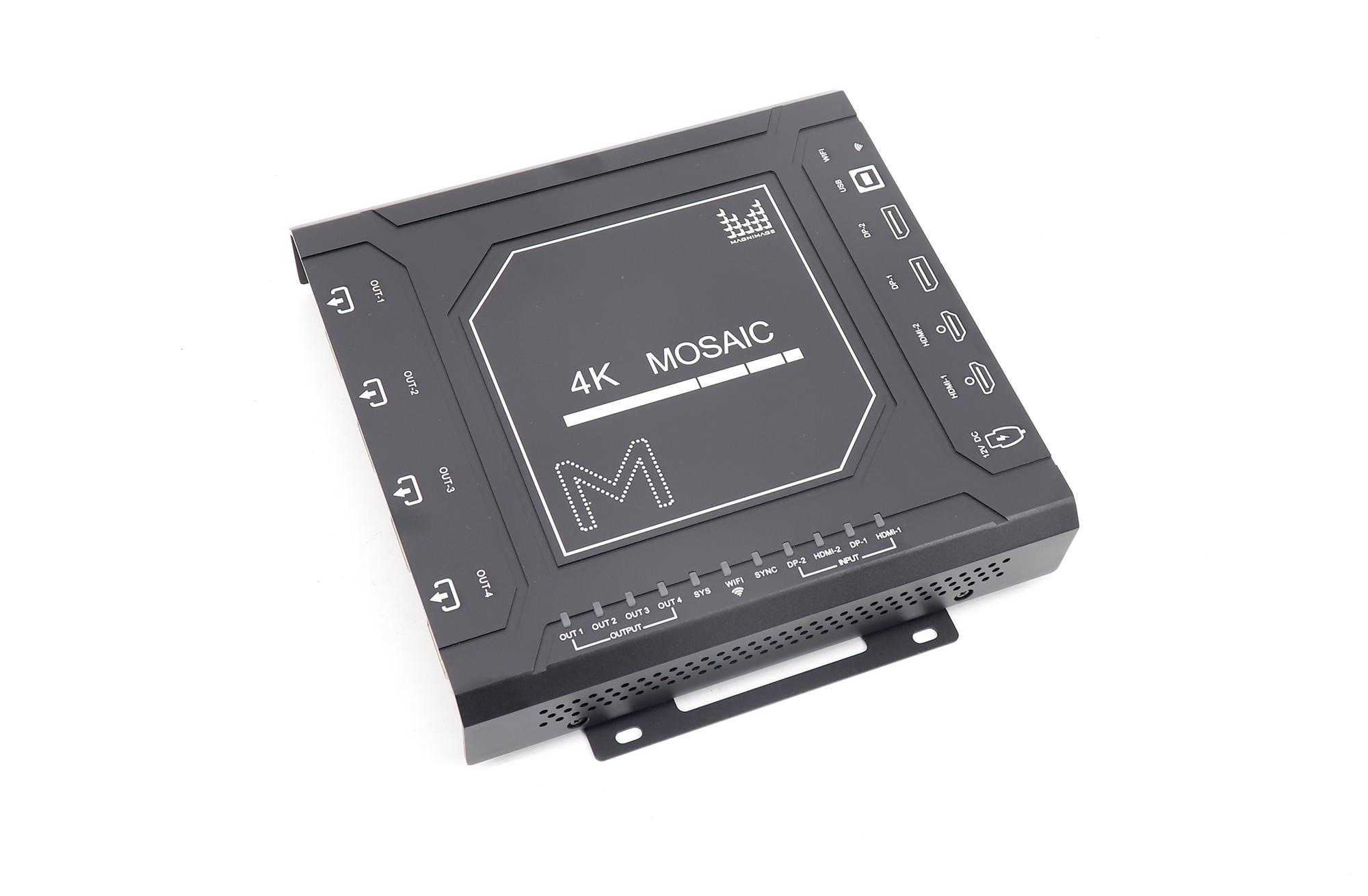

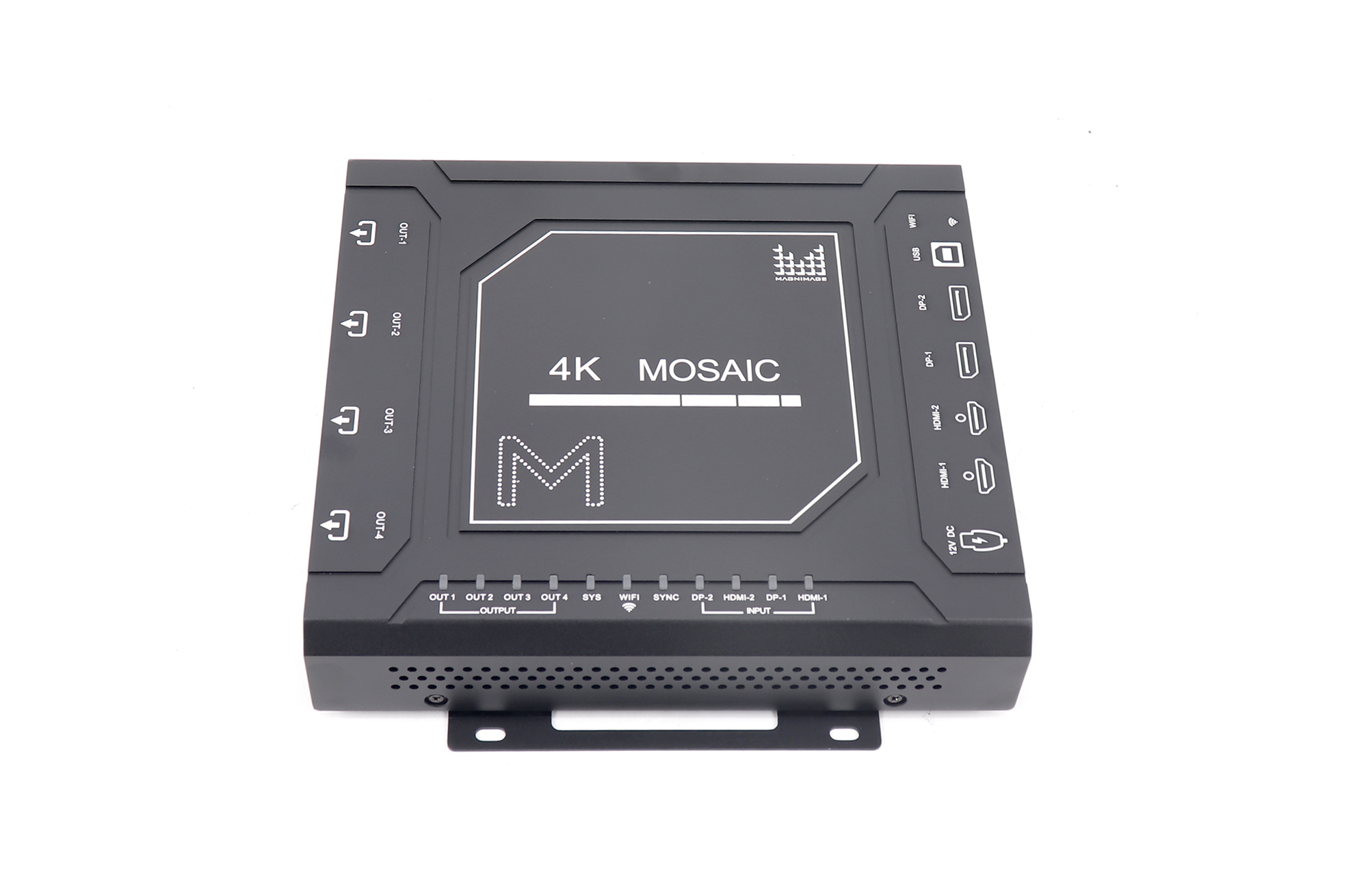

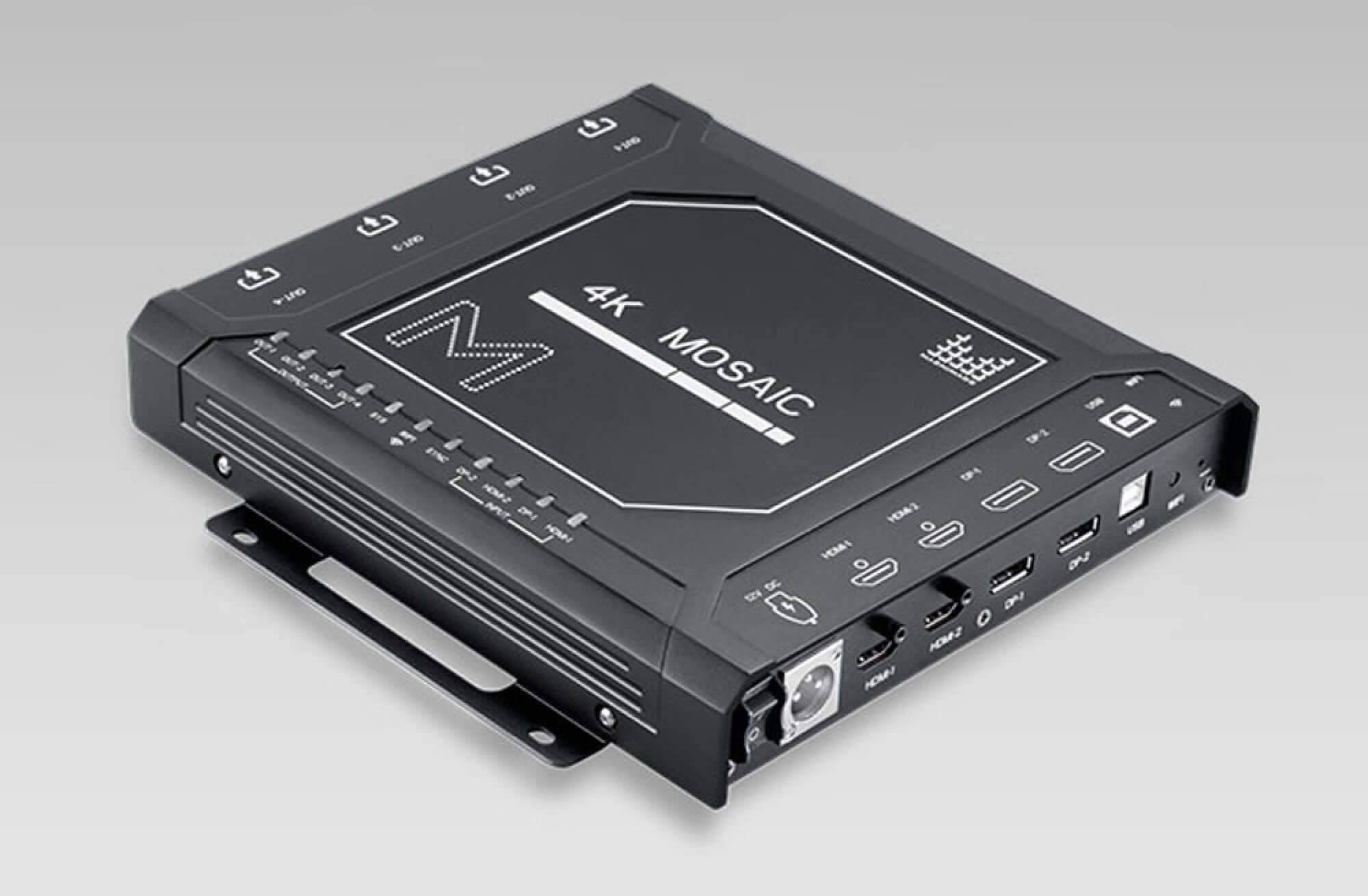

The Magnimage MIG-F4 is a 4K video mosaic box for distributing and arranging video across multiple screens. It combines source selection, image cropping and synchronized screen layouts in one device.
Product specifications
| Parameter | Specification |
|---|---|
| Inputs | 2 DP and 2 HDMI |
| Single-input formats | 4K × 2K / 60 Hz, 4:4:4; 8K × 1K / 60 Hz |
| Output versions | 4 DVI or 4 HDMI outputs |
| Processing capacity | 9 million pixels |
| Output resolution | Customizable |
| Control | PC software and Android app; Wi-Fi hotspot |
Configuration and screen layout
Choose the output version to match your downstream equipment. EDID management, input backup and preset recall support repeatable operation. Image cropping, layer zoom, edge blending and synchronized multi-unit splicing help arrange the source for the required display layout.
Product images and downloads
Magnimage MIG-F4 Series 4K Video Mosaic Box Specification
Frequently asked questions
1. Does the MIG-F4 support 4K at 60 Hz?
Yes. A single input supports 4K × 2K / 60 Hz with 4:4:4, and 8K × 1K / 60 Hz.
2. Does one unit include both four DVI and four HDMI outputs?
The specifications list four DVI or four HDMI outputs. Confirm the output version before ordering.
3. How many input connectors are listed?
The MIG-F4 lists two DP and two HDMI inputs.
4. Can I reuse a saved screen layout?
Yes. The unit supports saving and recalling presets.
| Weight | 3 kg |
|---|
