MEAN WELL LRS-200-24 24V 8.8A Power Supply
$ 16.50
MEAN WELL LRS-200-24 enclosed supply with 24V 8.8A output, 211.2W rated power and fanless cooling. Input voltage range is selected by a switch.
10000 in stock
MEAN WELL LRS-200-24 24V 8.8A Power Supply

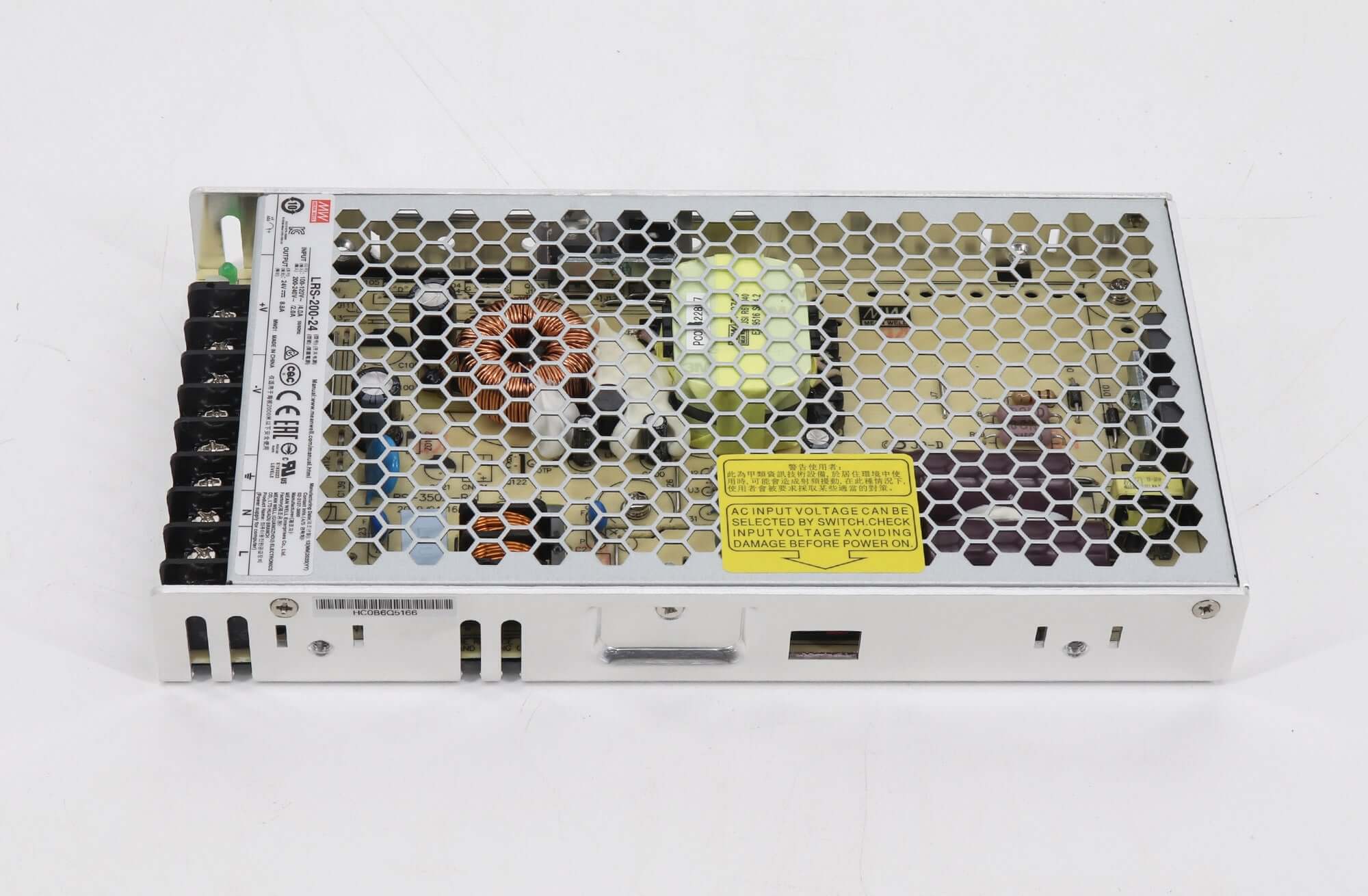

The MEAN WELL LRS-200-24 is a 24V enclosed switching power supply rated at 8.8A and 211.2W. It is intended for compatible 24V loads, including LED display equipment, and uses natural air convection in a low-profile metal case.
Product parameters
| Parameter | Specification |
|---|---|
| Model | LRS-200-24 |

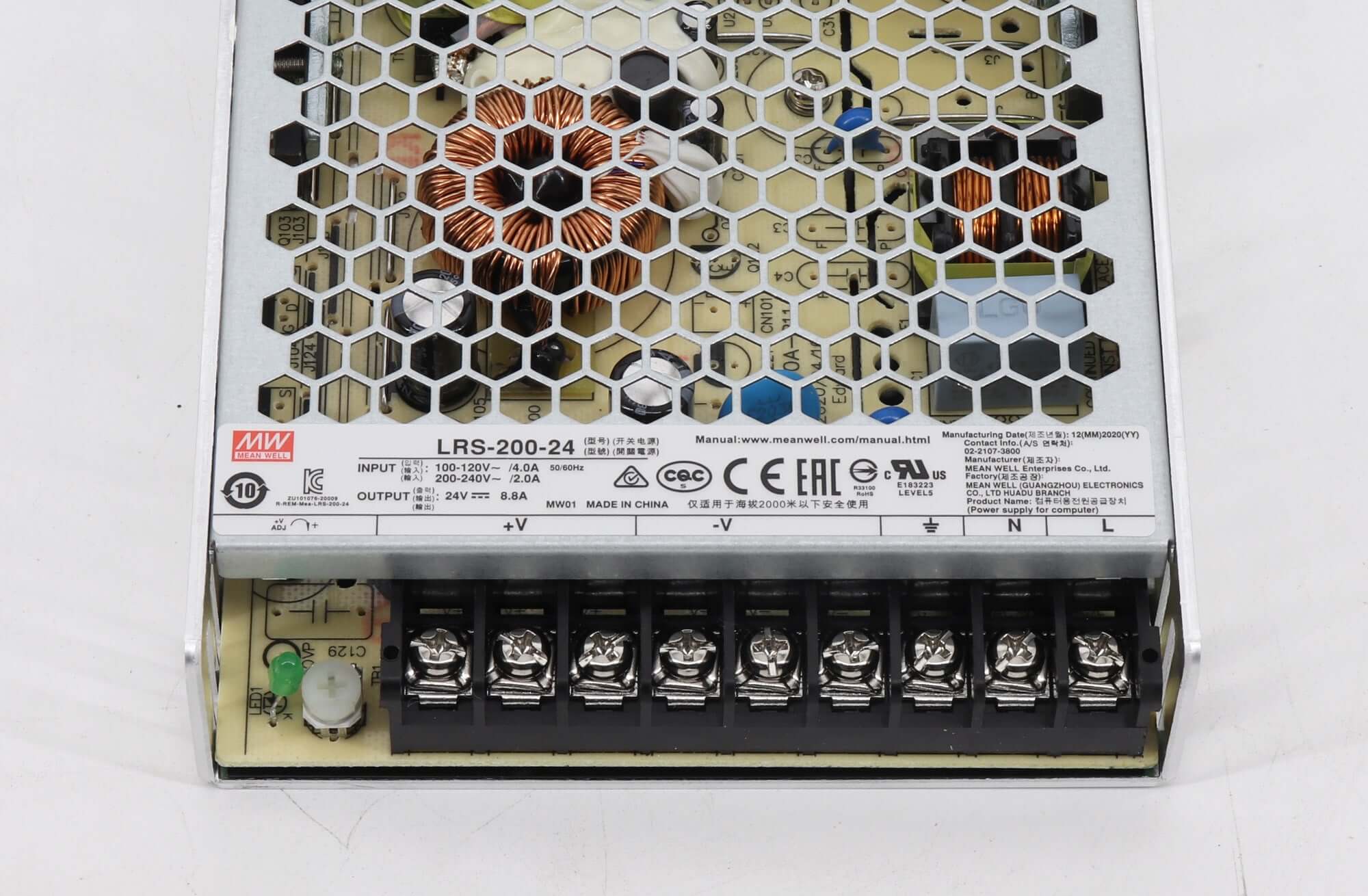

| Rated output | 24V, 8.8A, 211.2W |
| Voltage adjustment | 21.6–28.8V |
| AC input | 90–132VAC / 180–264VAC, selected by switch |
| Input frequency | 47–63Hz |
| Typical efficiency | 89.5% |
| Cooling | Natural air convection |
| Height | 30mm |
Select the correct AC input range before use. Check the specification’s derating curve, wiring diagram and mounting requirements for the finished installation.
Product images and documents
Meanwell LRS-200-24 LED Video Screen Power Supply Specification
Frequently asked questions
1. What is the rated power of the LRS-200-24?
The model-specific rating is 211.2W at 24V and 8.8A. The LRS-200 series name does not replace this output rating.
2. Is its AC input automatic or switch selectable?

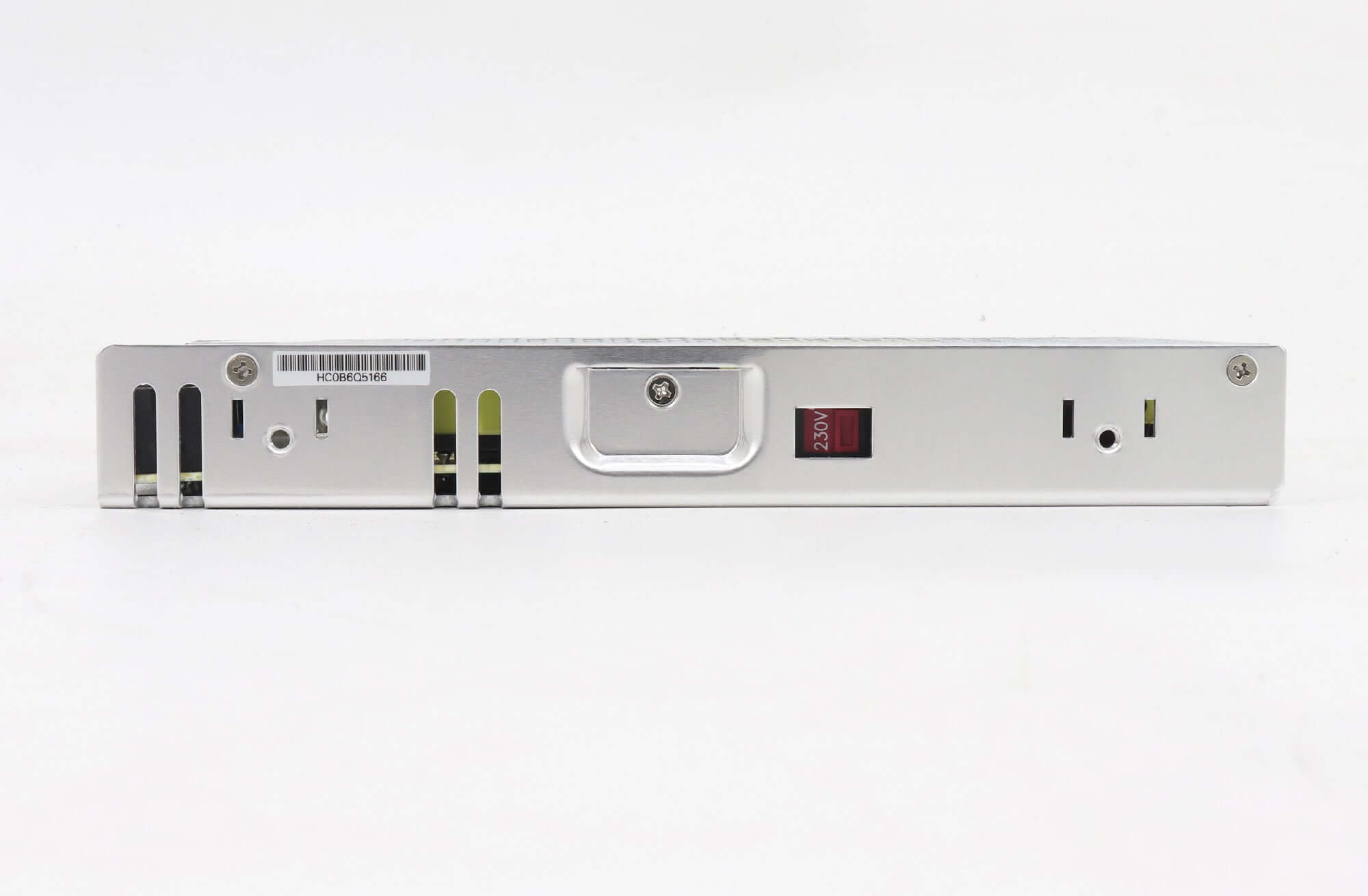

The input is switch selectable: 90–132VAC or 180–264VAC. Confirm the switch position matches the mains before powering the unit.
3. Can this model power a 5V LED module?
Its nominal output is 24V, with adjustment from 21.6–28.8V. That range is unsuitable for a module requiring 5V directly.
4. Does the LRS-200-24 require forced-air cooling?
The supply uses natural air convection. Provide ventilation and follow the PDF load-versus-temperature limits when installing it in a cabinet.
| Weight | 0.73 kg |
|---|
