MEAN WELL LRS-50-24 24V 2.2A Enclosed Power Supply
$ 7.50
24V 2.2A single-output supply rated at 52.8W, with universal AC input and natural-convection cooling for compatible equipment.
10000 in stock
MEAN WELL LRS-50-24 24V 2.2A Enclosed Power Supply

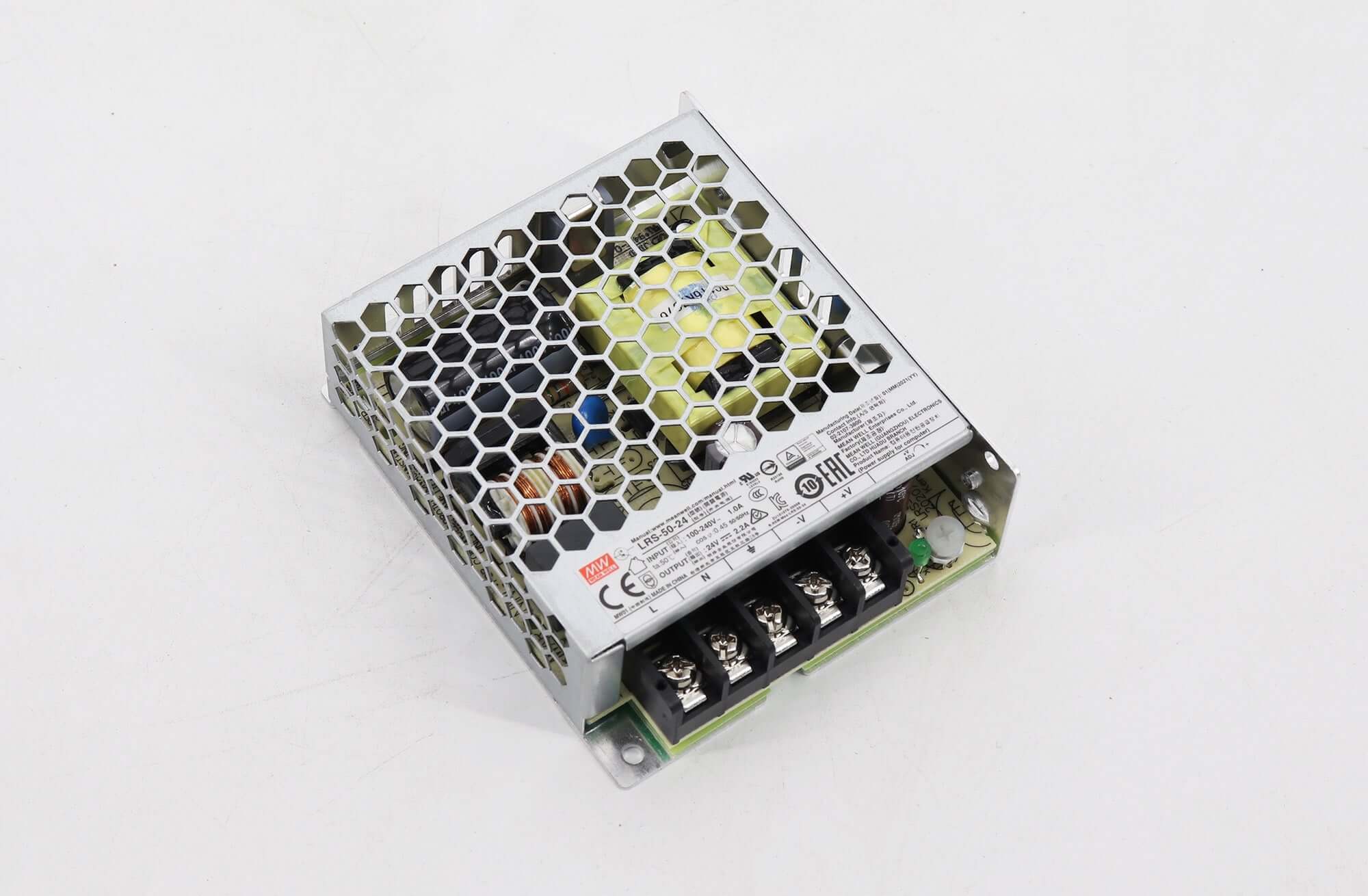

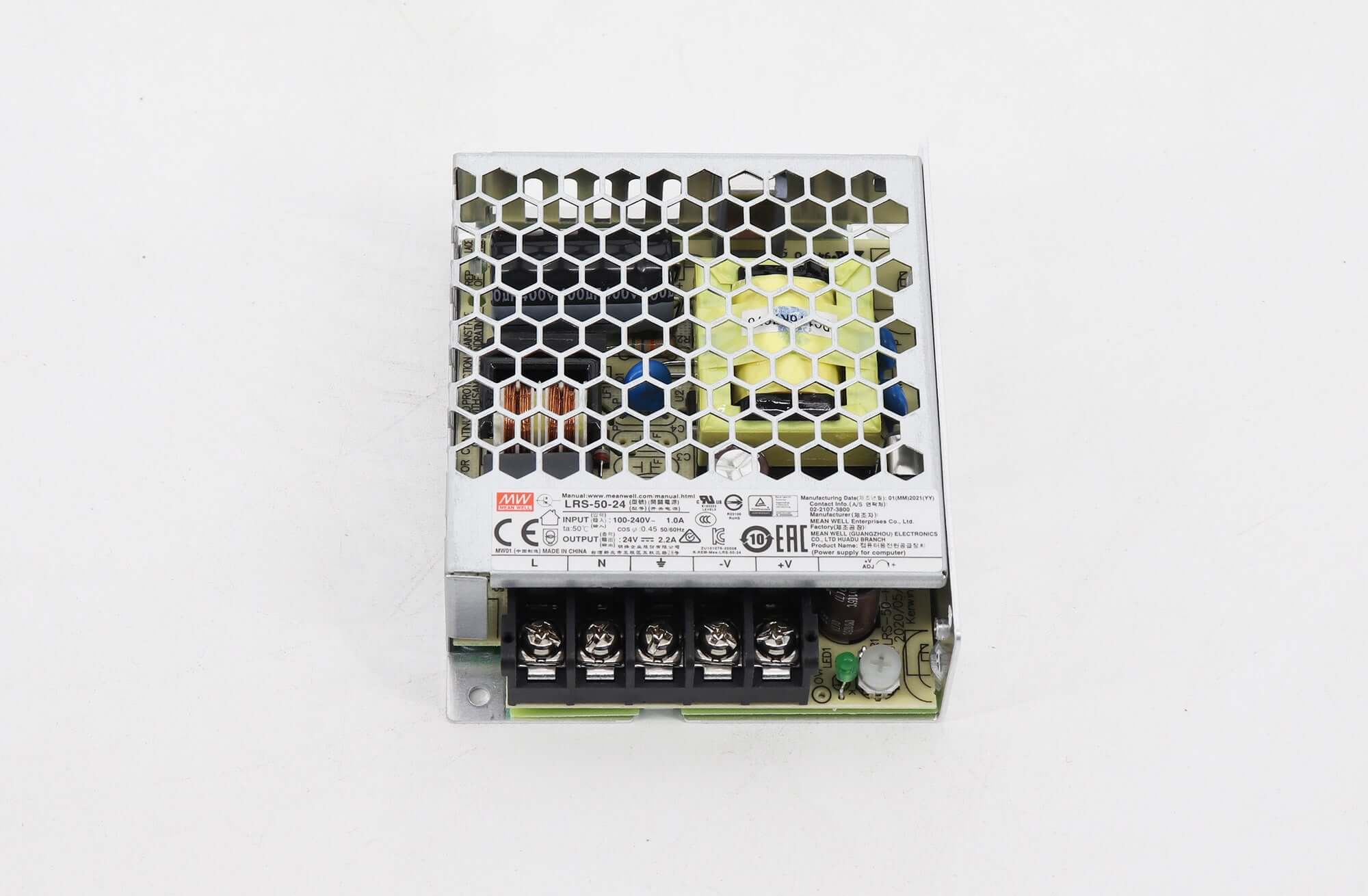

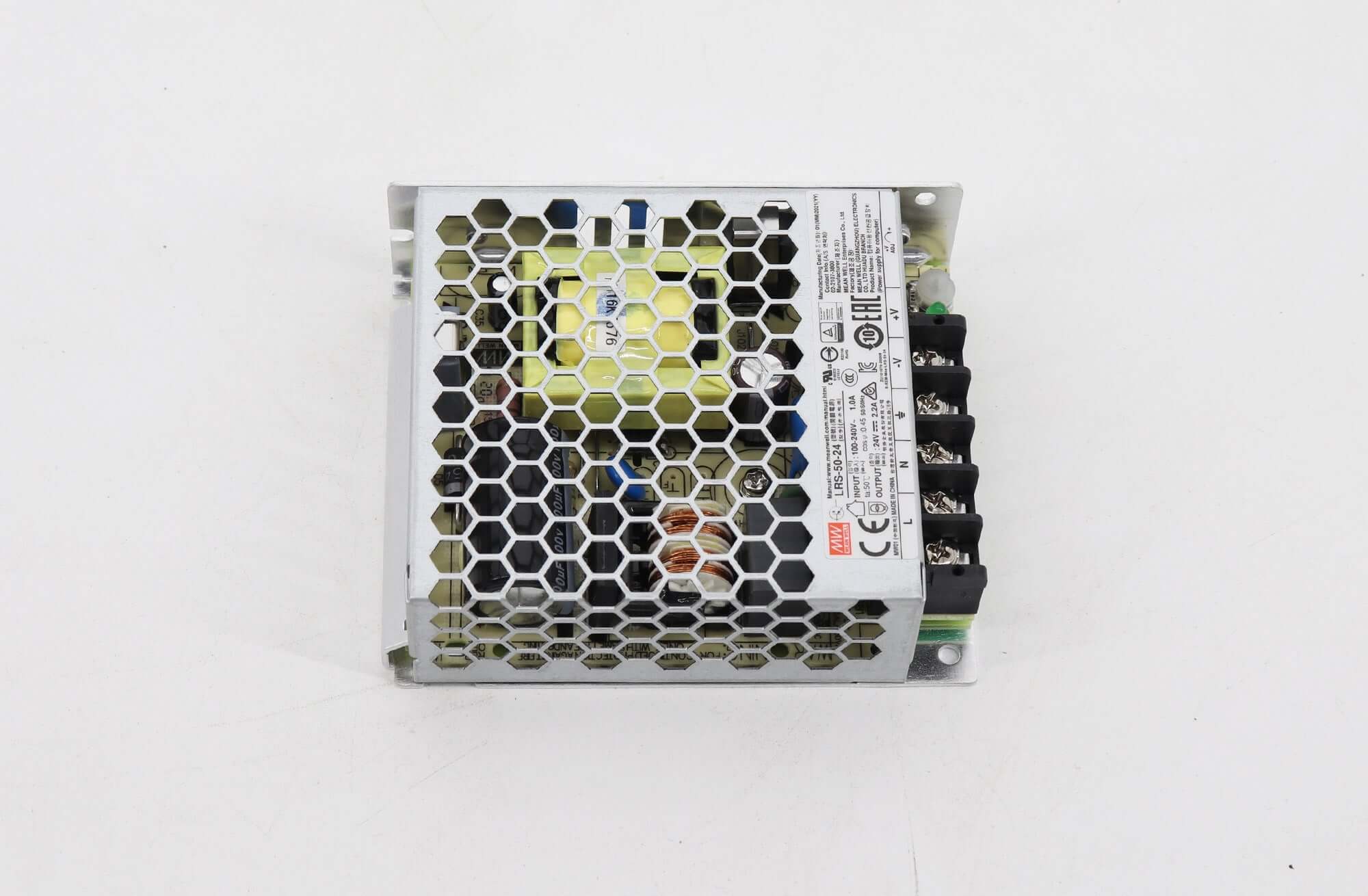

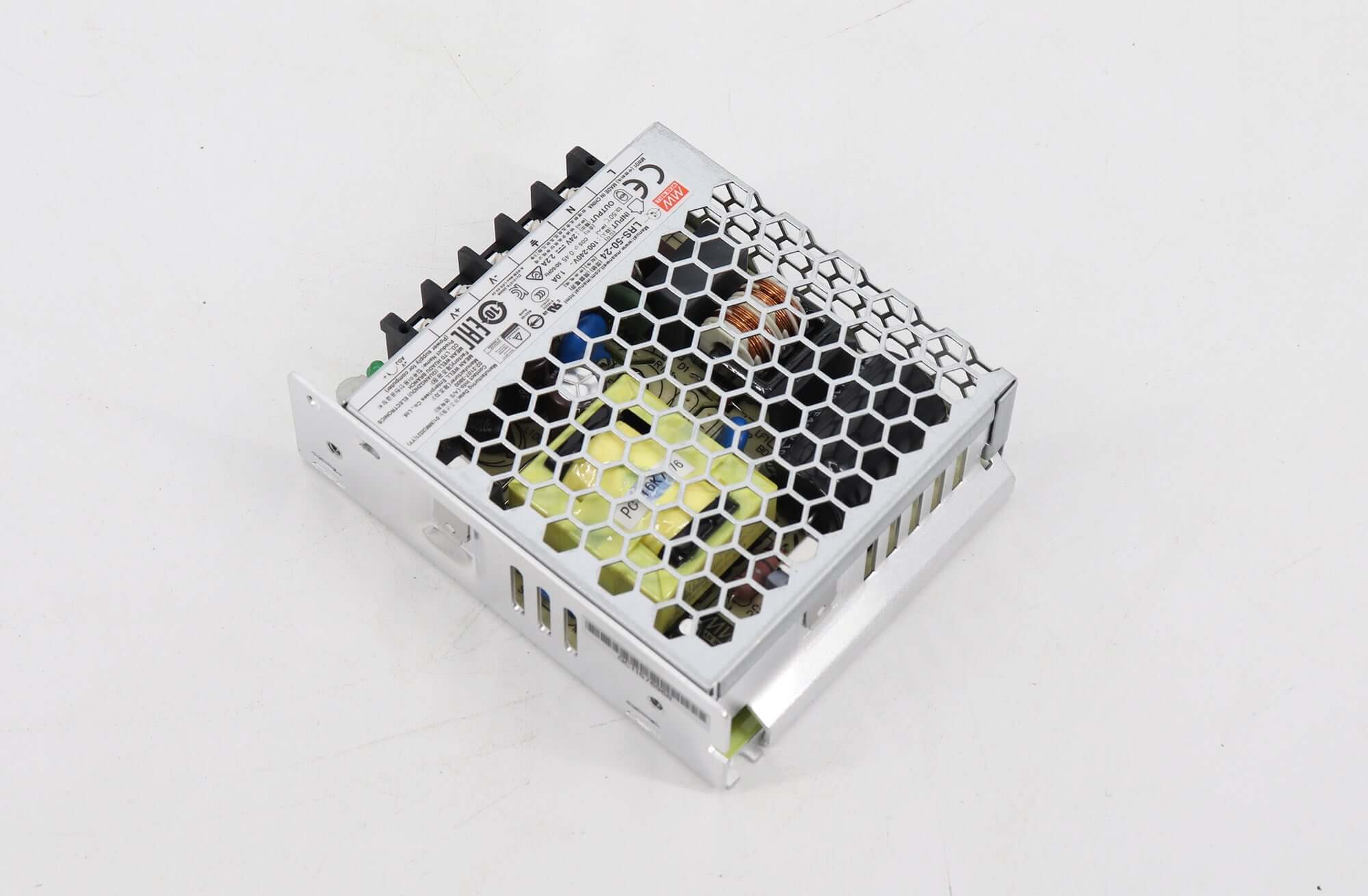

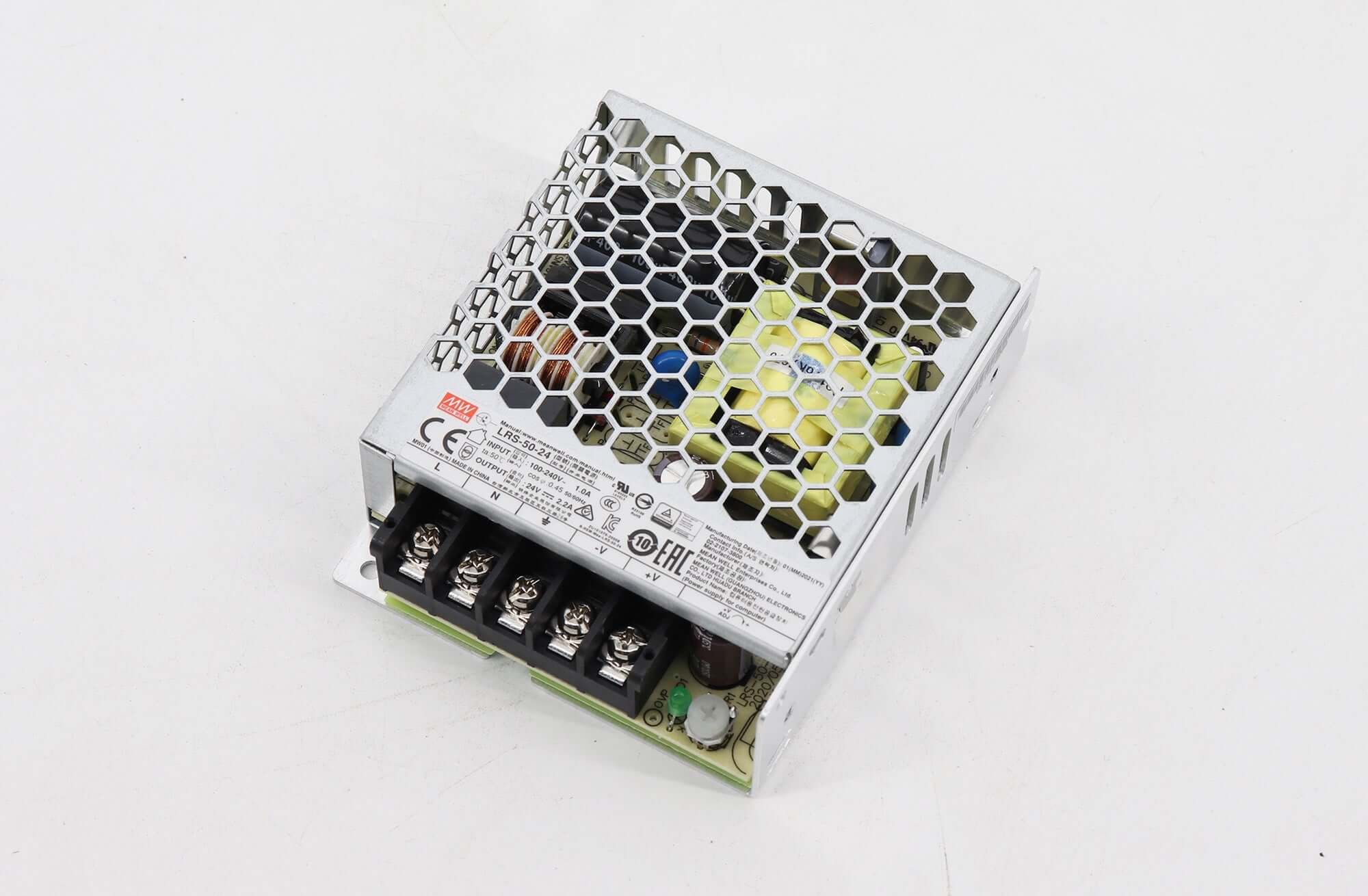

The LRS-50-24 is a compact enclosed supply for compatible 24V equipment. It provides a single DC output with natural-convection cooling and a metal mesh enclosure.
Product parameters
| Parameter | Specification |
|---|---|
| DC output | 24V |
| Rated current | 2.2A |
| Rated power | 52.8W |
| AC input | 85–264VAC |
| Voltage adjustment | 21.6–28.8V |
| Typical efficiency | 88% |
| Cooling | Free-air convection |
The 24V model has a 52.8W rated output. Allow for the datasheet derating conditions when matching it to the load.
Product images and documents
Meanwell LRS-50-24 Single-output Enclosed Power Supply Specification
Frequently asked questions
1. Is LRS-50-24 rated at exactly 50W?
The manufacturer lists 52.8W for the 24V version, with 2.2A rated current.
2. What input voltage does it accept?
The specified AC operating range is 85–264VAC. Refer to the datasheet for input-related derating.
3. Can it be used as a constant-current LED driver?
It is a single-output switching supply. Use it with a load designed for its voltage output; do not assume it replaces a dedicated constant-current driver.
4. How do I choose a replacement?
Match output voltage, load current, mounting and terminals. Check thermal requirements rather than selecting by the LRS series name alone.
| Weight | 0.26 kg |
|---|
