MEAN WELL RSP-320-5 5V 60A 300W Power Supply with PFC
$ 38.00
5V 60A 300W enclosed power supply with active PFC, a 30mm profile and built-in fan cooling. Check load, airflow and terminal layout before replacement.
9894 in stock
MEAN WELL RSP-320-5 5V 60A 300W Power Supply with PFC
The RSP-320-5 is a 5V enclosed AC/DC supply with active PFC and a built-in cooling fan. Use it for compatible LED display loads where a 60A output and forced-air cooling fit the cabinet design.
Product parameters
| Parameter | Specification |
|---|---|
| DC output | 5V |
| Rated current | 60A |
| Rated power | 300W |
| Voltage adjustment | 4.5–5.5V |
| AC input | 88–264VAC |
| Typical efficiency | 83% |
| Profile height | 30mm |
| Cooling | Built-in DC fan with fan-speed control |
The 5V model is rated at 300W. The series maximum efficiency must not be used as this model’s typical efficiency. Apply the specification derating curves.

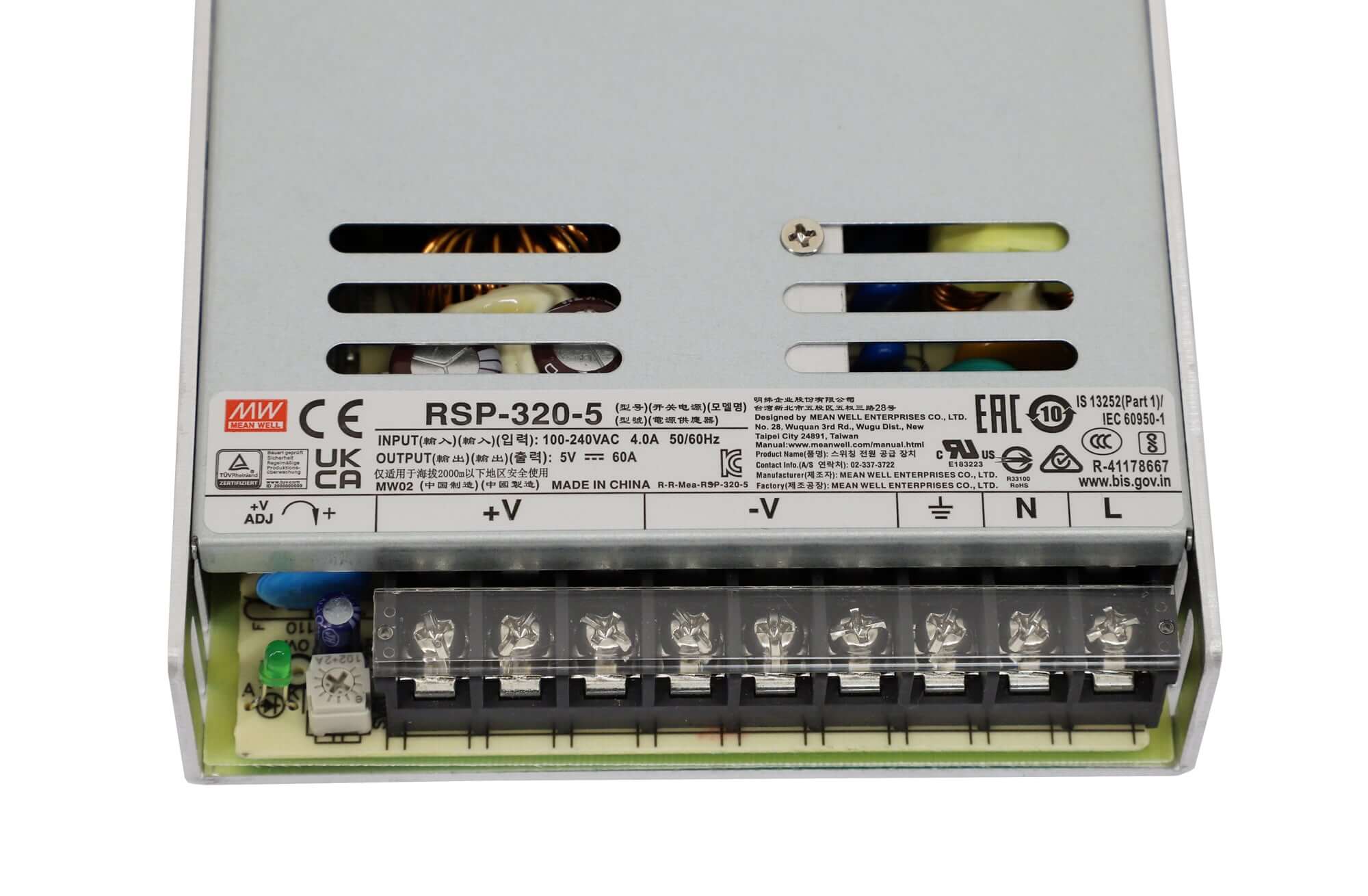

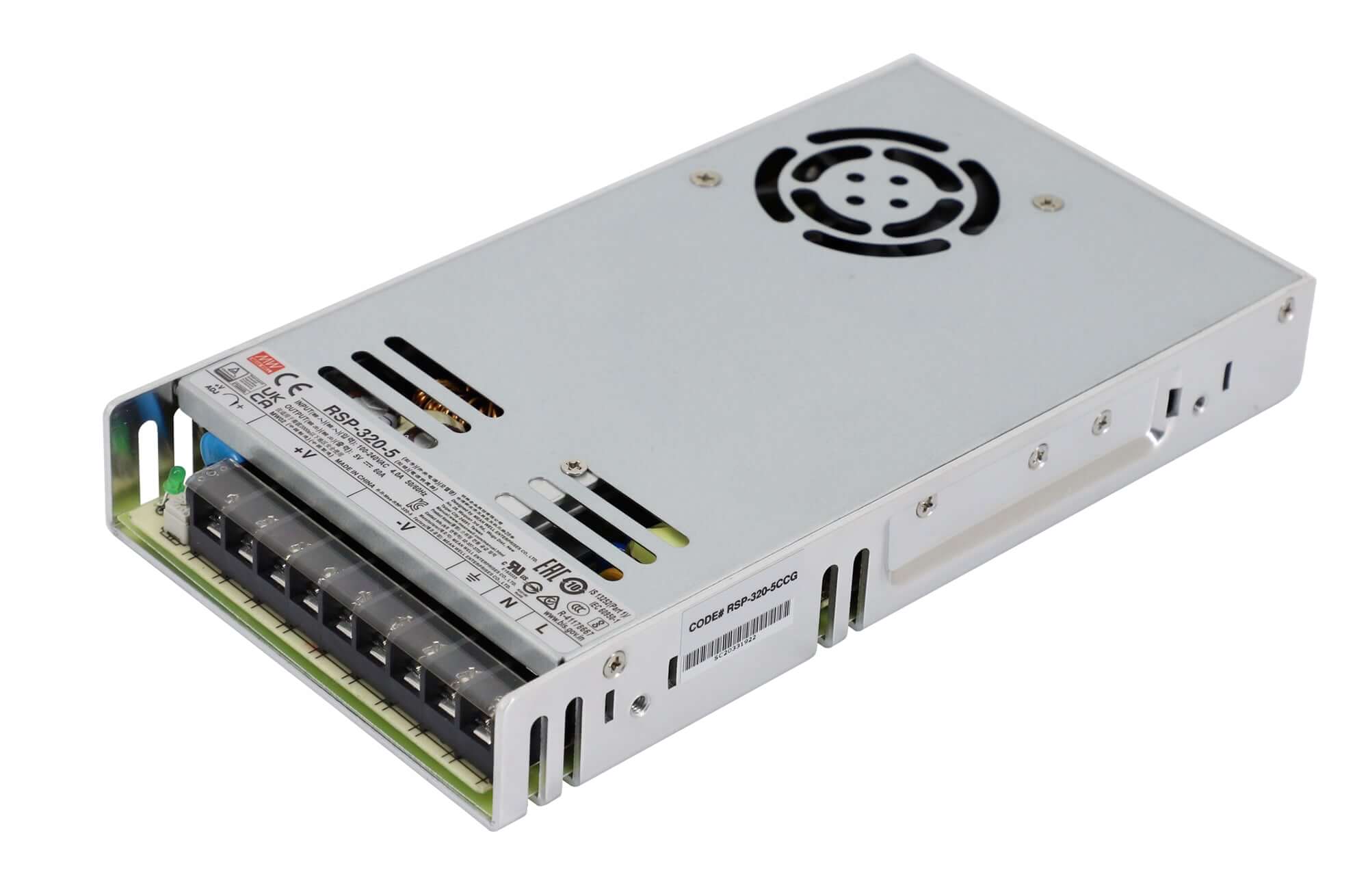

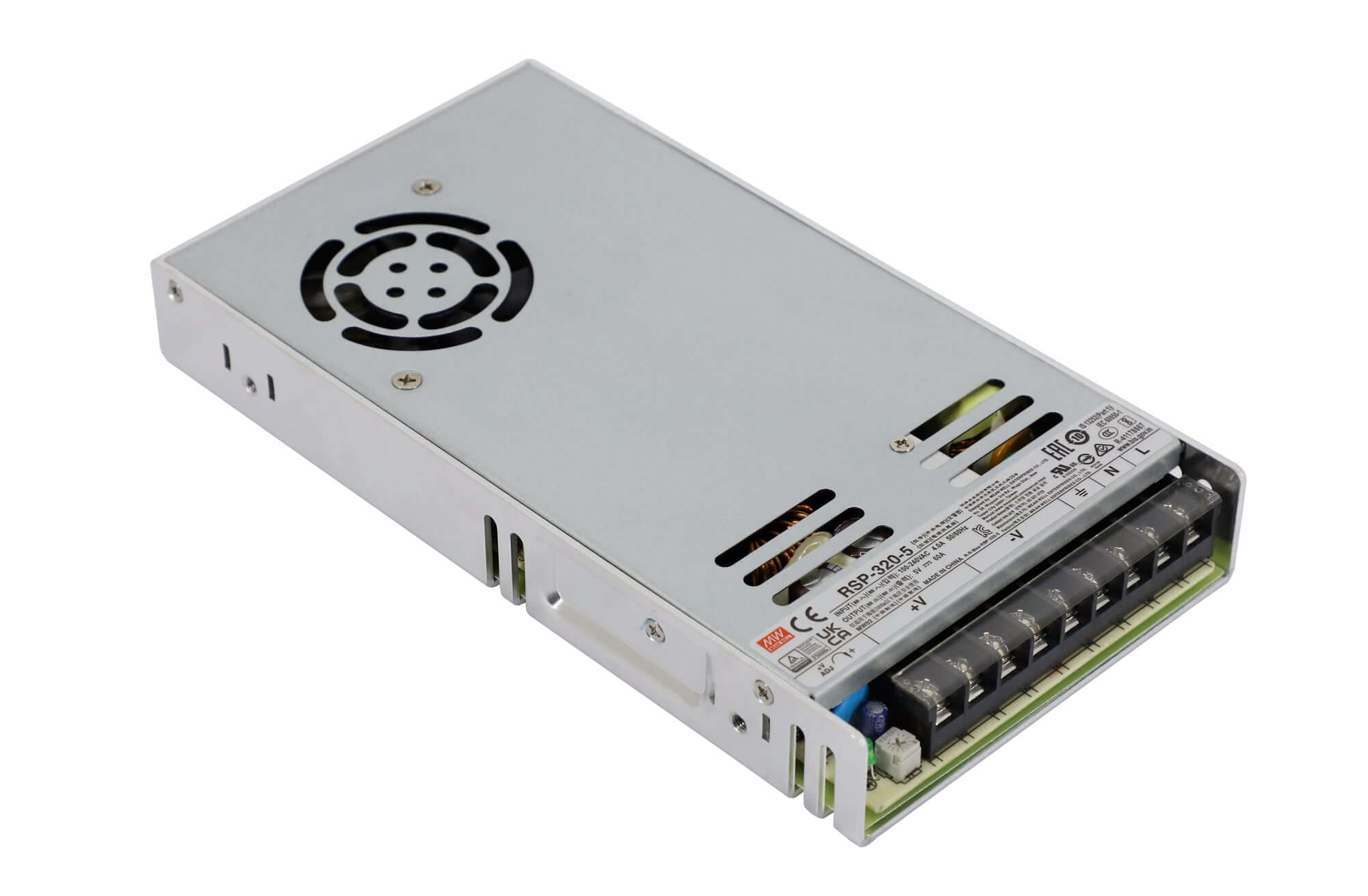

Product images and documents
Meanwell RSP-320-5 Ultra-thin LED Power Source PFC Specification
Frequently asked questions
1. Is RSP-320-5 a 320W power supply?
The 5V model has a 300W rated output. RSP-320 identifies the series.
2. What is its typical efficiency?
The manufacturer specifies 83% for the 5V model under the datasheet test conditions.
3. Does RSP-320-5 need fan clearance?
Yes. It uses a built-in fan, so cabinet layout must leave the required airflow path unobstructed.
4. Is conformal coating standard?
The original series documentation identifies conformal coating as an option. Confirm the ordered version rather than assuming every RSP-320-5 includes it.
| Weight | 1.03 kg |
|---|
