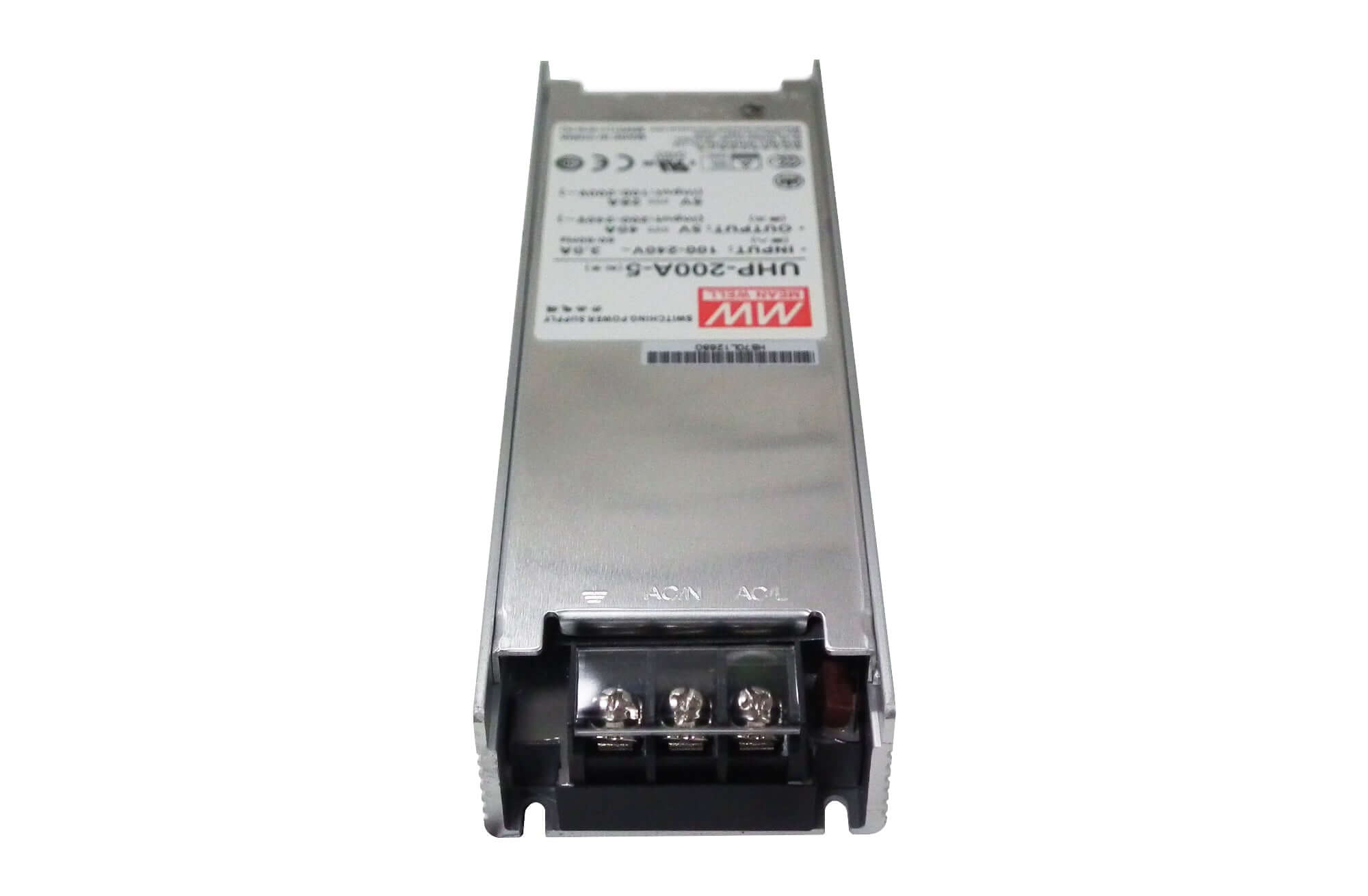

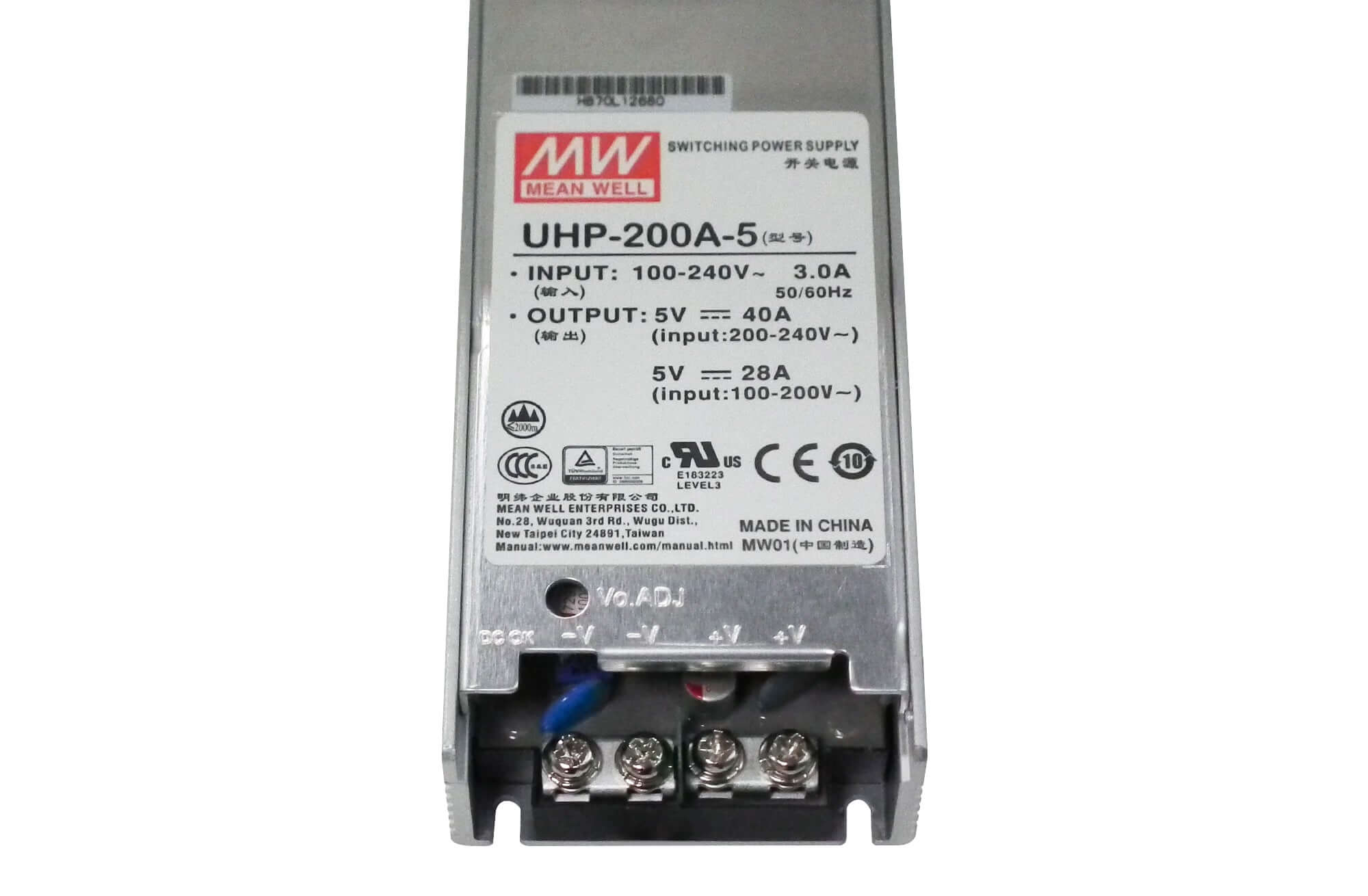

MEAN WELL UHP-200A-5 5V 40A 200W LED Power Supply
$ 30.50
Compact 5V 40A 200W LED power supply with active PFC and fanless cooling. The UHP-200A-5 measures 167 × 55 × 26mm.
9998 in stock
MEAN WELL UHP-200A-5 5V 40A 200W LED Power Supply
The UHP-200A-5 is a compact 5V supply for LED signage and display cabinets. Its 200W output, fanless construction and active PFC make it a candidate for installations that need a slim power unit with a defined 5V load.
Product parameters
| Parameter | Specification |
|---|---|
| Model | UHP-200A-5 |
| DC output | 5V |
| Rated current | 40A |
| Rated power | 200W |
| Voltage adjustment | 4.7–5.3V |
| AC input | 90–264VAC |
| Dimensions (L × W × H) | 167 × 55 × 26mm |
| Typical efficiency | 88.5% |
Values are for the UHP-200A-5 model in the manufacturer specification. Check the input-voltage and temperature derating curves when sizing the load.
Product images and documents
Meanwell UHP-200A-5 Switch Power Supplier Specification
Frequently asked questions
1. What voltage and current does UHP-200A-5 provide?
Its nominal output is 5V DC and its rated current is 40A, with a rated output power of 200W.
2. Can I adjust the 5V output?
Yes. The specified range is 4.7–5.3V. Use the voltage required by the LED module rather than increasing voltage to compensate for an unsuitable cable design.
3. Is it the same as UHP-200-5?
No. UHP-200A-5 and UHP-200-5 are different model designations. Compare their dimensions, adjustment ranges and installation drawings before substitution.
4. What should I check before fitting it in an LED cabinet?
Check the module voltage, total current, mounting space, airflow and input supply. Use the PDF for terminal assignments and derating requirements.
| Weight | 0.6 kg |
|---|
