NovaStar A10s Pro LED Receiving Card
$ 54.00
NovaStar A10s Pro receiving card for LED display cabinets: up to 512 × 512 pixels at 60 Hz, HDR10/HLG and full-grayscale calibration. Confirm hub-board, driver-IC and controller compatibility before ordering.
9998 in stock
NovaStar A10s Pro Receiving Card Overview
The NovaStar A10s Pro is a compact receiving card for LED display cabinets, supporting up to 512 × 512 pixels at 60 Hz. It offers HDR10/HLG, Dynamic Booster and full-grayscale calibration. Before ordering, check the cabinet hub board, driver IC and sending controller together: advanced image functions depend on the complete system.
Buying a replacement? Send EagerLED photos of the existing card and hub board, the cabinet resolution and your controller model before selecting a quantity. This helps distinguish a like-for-like spare from a system upgrade.
A10s Pro Specifications
| Item | Specification |
|---|---|
| Brand / model | NovaStar / A10s Pro |
| Maximum loading | 512 × 512 pixels at 60 Hz |
| Data output | 32 parallel RGB groups or 64 serial groups; serial output expandable to 128 groups |
| Connection | High-density connectors; verify hub-board pinout |
| HDR formats | HDR10 and HLG with an HDR-capable sending card |
Source: NovaStar A10s Pro Receiving Card Specifications, V1.1.2. Download the A10s Pro specification PDF hosted on this website.
Image Quality Features and Requirements
- Dynamic Booster: improves contrast and image detail.
- Full-grayscale calibration: improves brightness and color consistency across grayscale levels.
- Image Booster: color management, precise grayscale and 22bit+; results depend on the driver IC. NovaLCT V5.4.0 or later is required.
- Low latency: receiving-card latency can reach one frame with driver ICs that have built-in RAM; this is not a total system latency specification.
- Monitoring and backup: temperature/voltage monitoring, configuration readback and dual-card backup are supported; backup needs the appropriate cabinet design.
Check Compatibility Before Ordering
A matching model name is only the start of a replacement check. Record the working cabinet configuration before removing any parts, and ask the installer to confirm the proposed replacement against the actual screen.
- Identify the hardware: provide clear photos of both sides of the current card, the hub board and connector labels.
- Describe the screen: include module model, driver IC, scan mode, cabinet pixel dimensions and the number of cabinets.
- Identify the control system: provide the sending controller model, firmware and configuration software version.
- State the requirement: specify replacement, spare stock or a new project, and list any required HDR, calibration or backup functions.
- Confirm the order: ask for the required card quantity, included accessories, delivery destination and shipping quotation before payment.
For related components, browse LED receiving cards and LED video controllers. Category membership alone does not confirm compatibility.

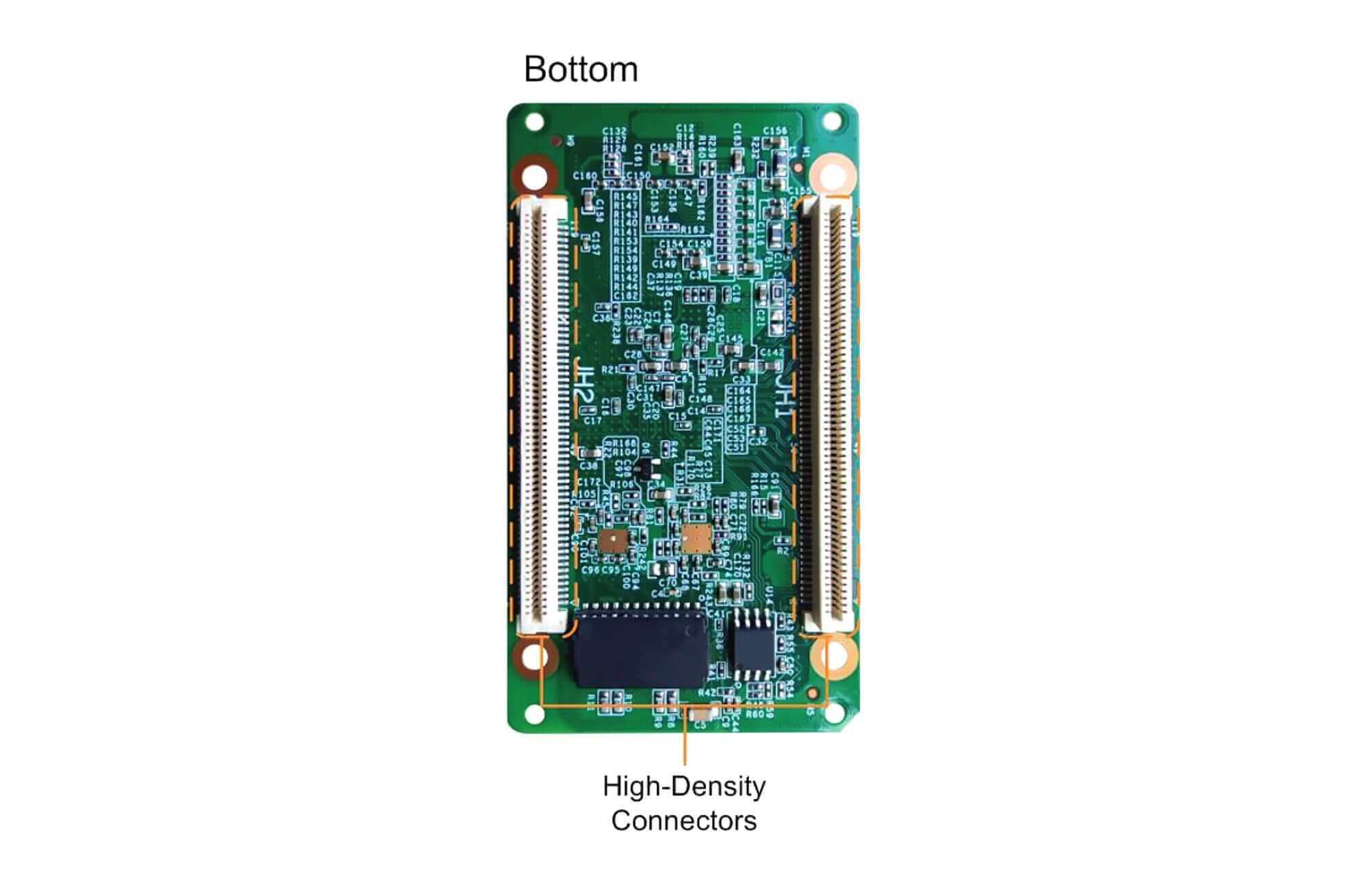

A10s Pro Product Images
Use these original product views to compare the board appearance with your existing hardware. For a replacement assessment, send photos of your actual card as well.
Frequently Asked Questions
How many pixels can one A10s Pro receiving card load?
The manufacturer specifies up to 512 × 512 pixels at 60 Hz. Check the actual cabinet mapping and driver configuration before selecting the card.
What is needed for HDR10 or HLG?
The A10s Pro must work with a sending card that supports HDR. Confirm the source, sending hardware and display configuration together.
Does one-frame low latency describe the complete LED system?
No. It is the receiving-card-end specification and applies when module driver ICs have built-in RAM. Other parts of the signal path must be considered separately.
Can A10s Pro replace A10s Plus or A7s without changes?
Do not assume interchangeability. Provide the exact card model, HUB-board pinout, module driver and configuration file for a replacement check.
What software is required for Image Booster?
The linked specification lists NovaLCT V5.4.0 or later. The effects of its color management, precise grayscale and 22bit+ functions also depend on the driver IC.
Get an A10s Pro Quote
Contact EagerLED for an A10s Pro quotation and compatibility check. Include your controller model, cabinet details, card photos, quantity and delivery destination.
