NovaStar DH436, DH3208 and MRV432 HUB320 LED Receiving Cards
Price range: $ 17.00 through $ 19.20
Compare NovaStar DH436, DH3208 and MRV432 HUB320 receiving cards. DH436 has six connectors and a listed 512 × 256 load; DH3208 and MRV432 have eight connectors. Check the model-specific data format and cabinet compatibility.
This listing covers the NovaStar DH436, DH3208 and MRV432 LED receiving cards. They use HUB320 connections for LED modules, but their connector counts and documented data arrangements differ. Select the exact model for the cabinet wiring and configuration.
Receiving-card comparison
| Specification | DH436 | DH3208 | MRV432 |
|---|---|---|---|
| Listed maximum pixel load | 512 × 256 | Not stated in the original listing; verify in the model-specific document | 512 × 512 |
| HUB320 connectors | 6 × 26-pin | 8 | 8 |
| Parallel RGB data | Up to 24 groups | Up to 32 groups | Up to 32 groups |
| Serial data | Not stated | Up to 64 groups | Up to 64 groups |
| Image rotation | Not stated | 90-degree rotation | 90-degree increments |
DH436 display adjustment and maintenance
DH436 supports pixel-level brightness/chromaticity calibration, quick bright/dark-line adjustment, independent RGB Gamma and 3D functions. Mapping and a prestored image help with screen setup. Listed maintenance features include temperature and voltage monitoring, cabinet LCD support, error monitoring, firmware/configuration readback, loop backup, configuration dual backup and program dual backup.
The original listing identifies DH436 as RoHS compliant. It leaves the monitoring-card connection and light-board Flash fields blank; those two capabilities are not confirmed here.
DH3208 and MRV432
Both models are described with pixel-level brightness/chromaticity calibration, quick bright/dark-line adjustment, 3D, independent RGB Gamma and 90-degree image rotation. Their listed hardware designs address EMC compatibility. The matching connector count does not establish that the cards are interchangeable in an existing cabinet.

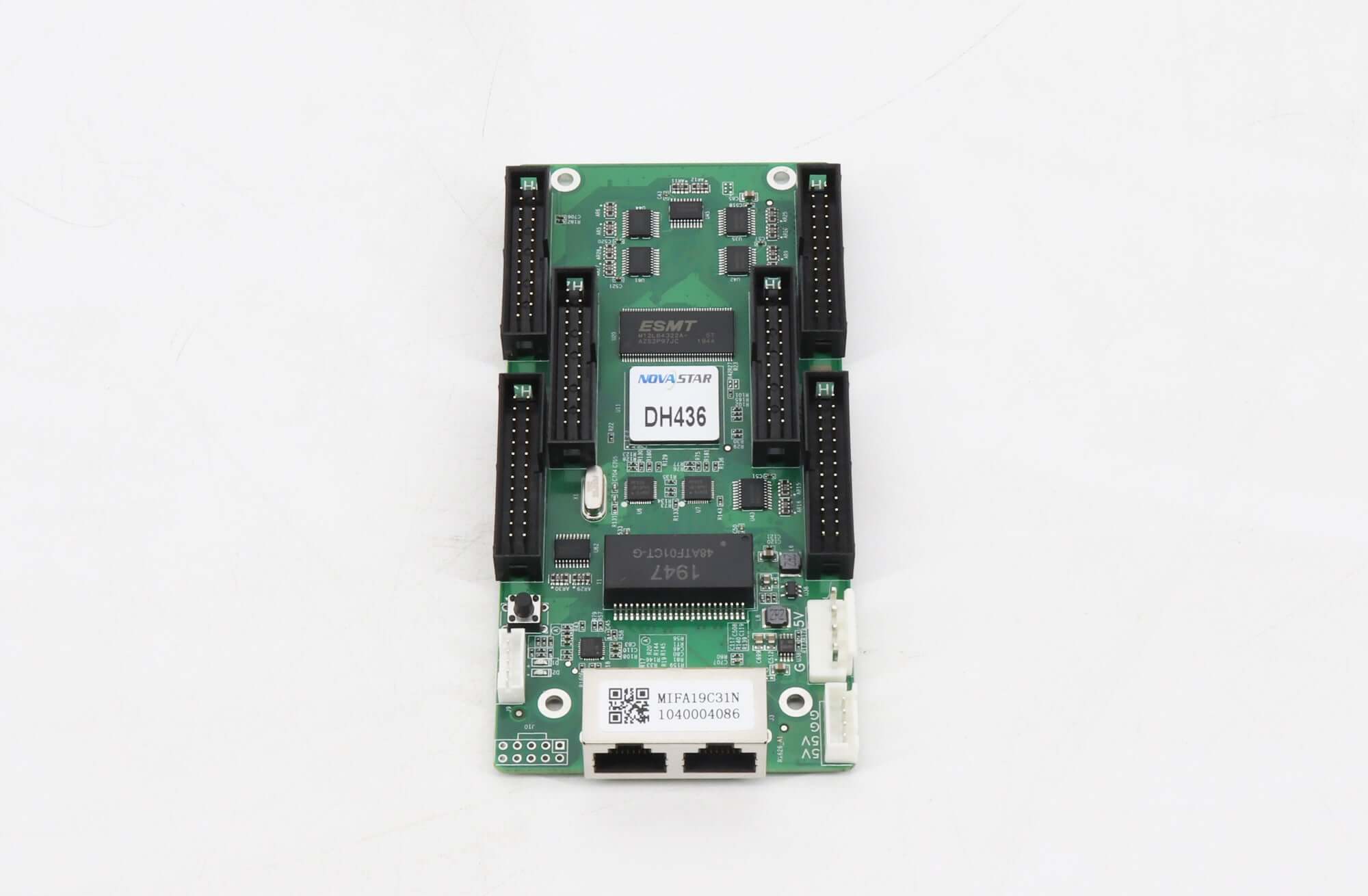

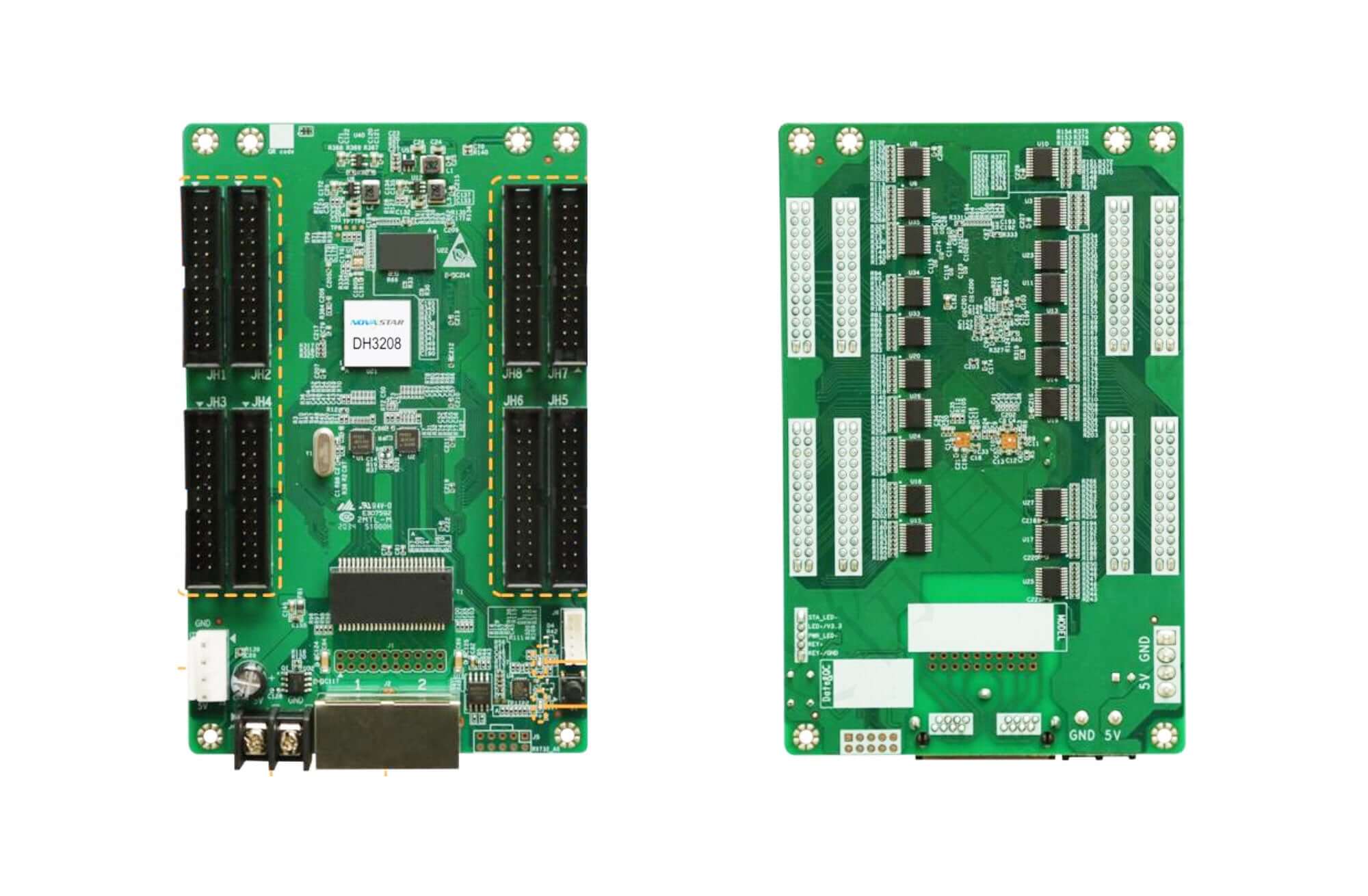

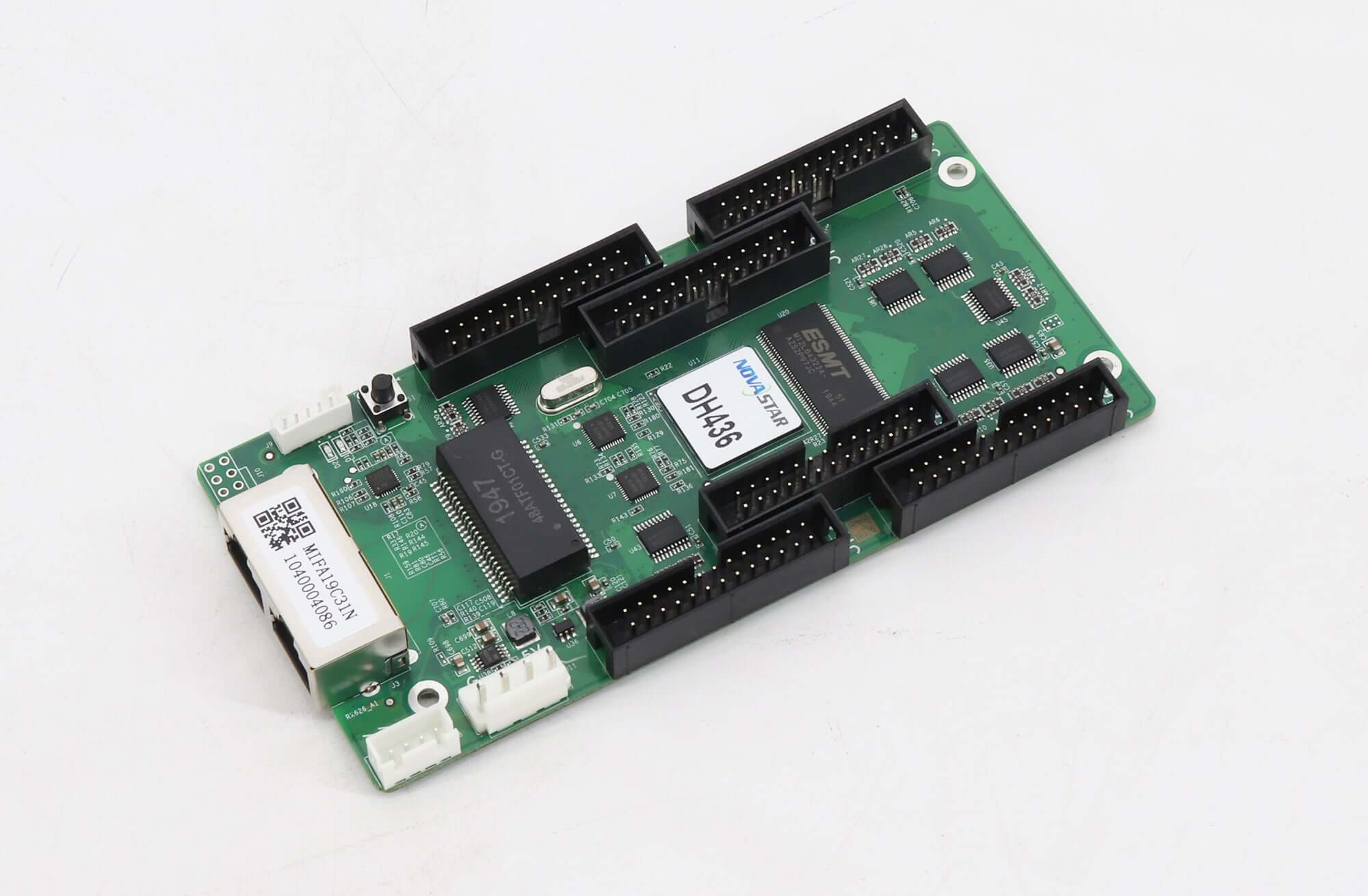

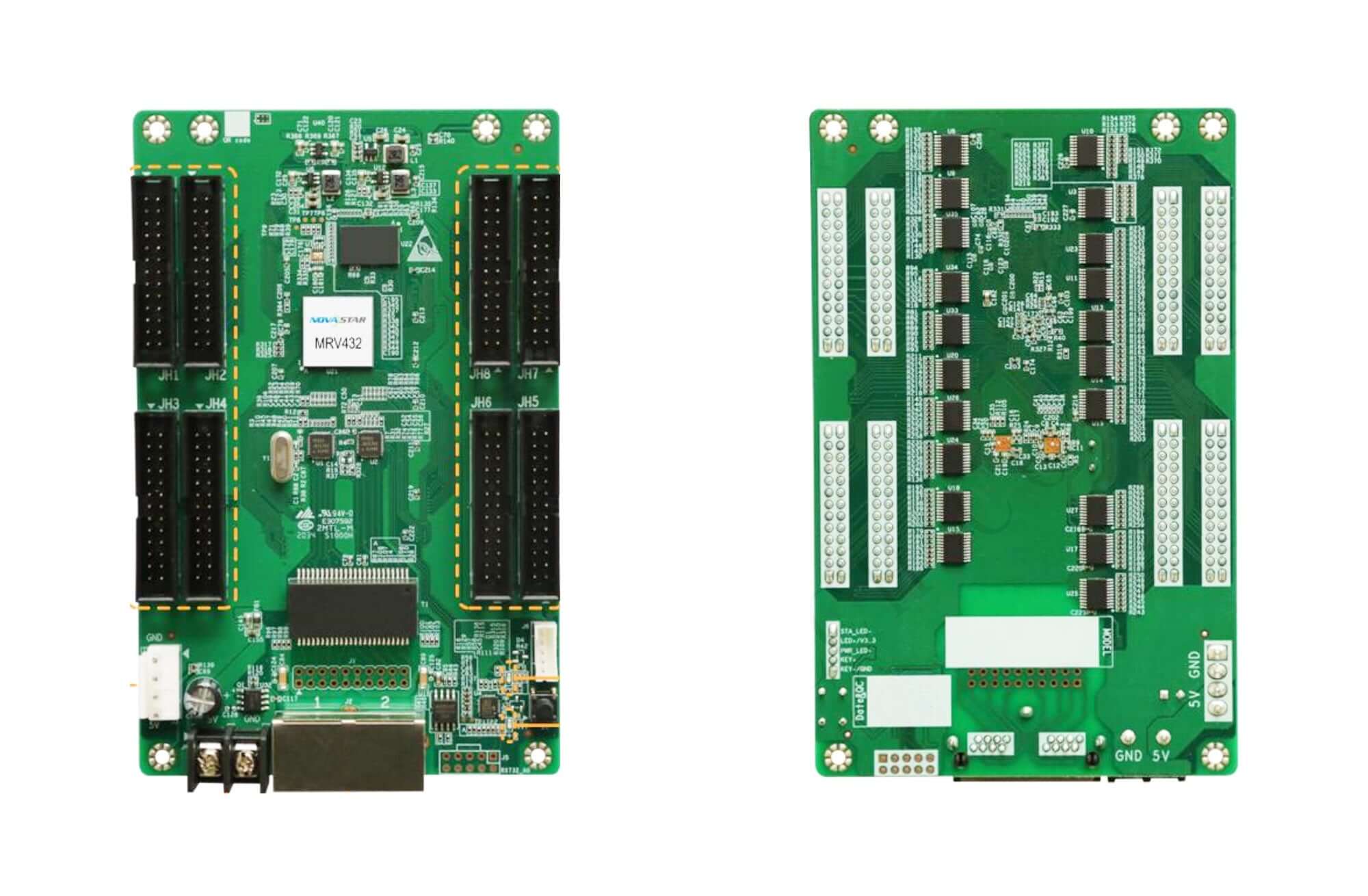

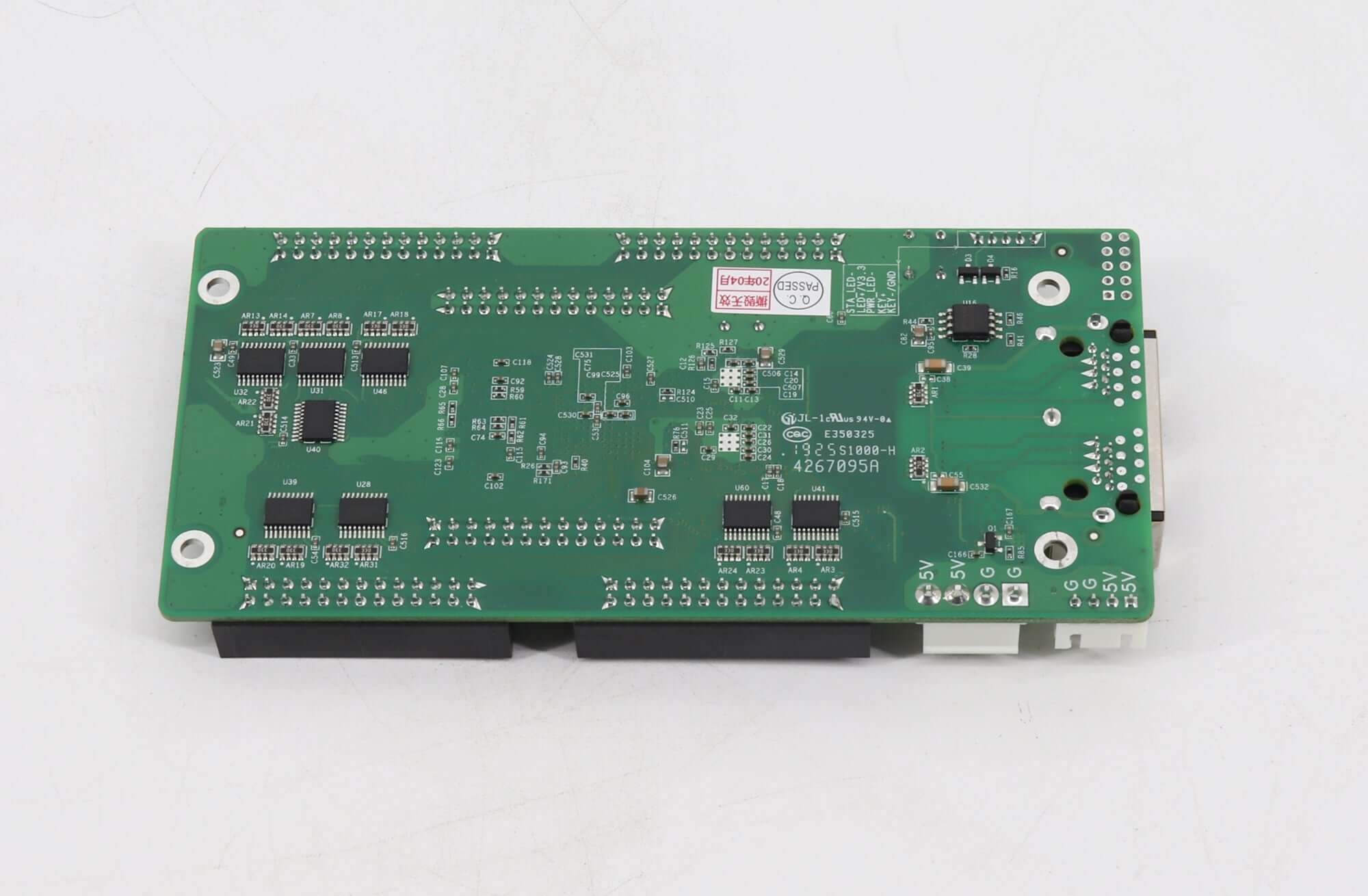

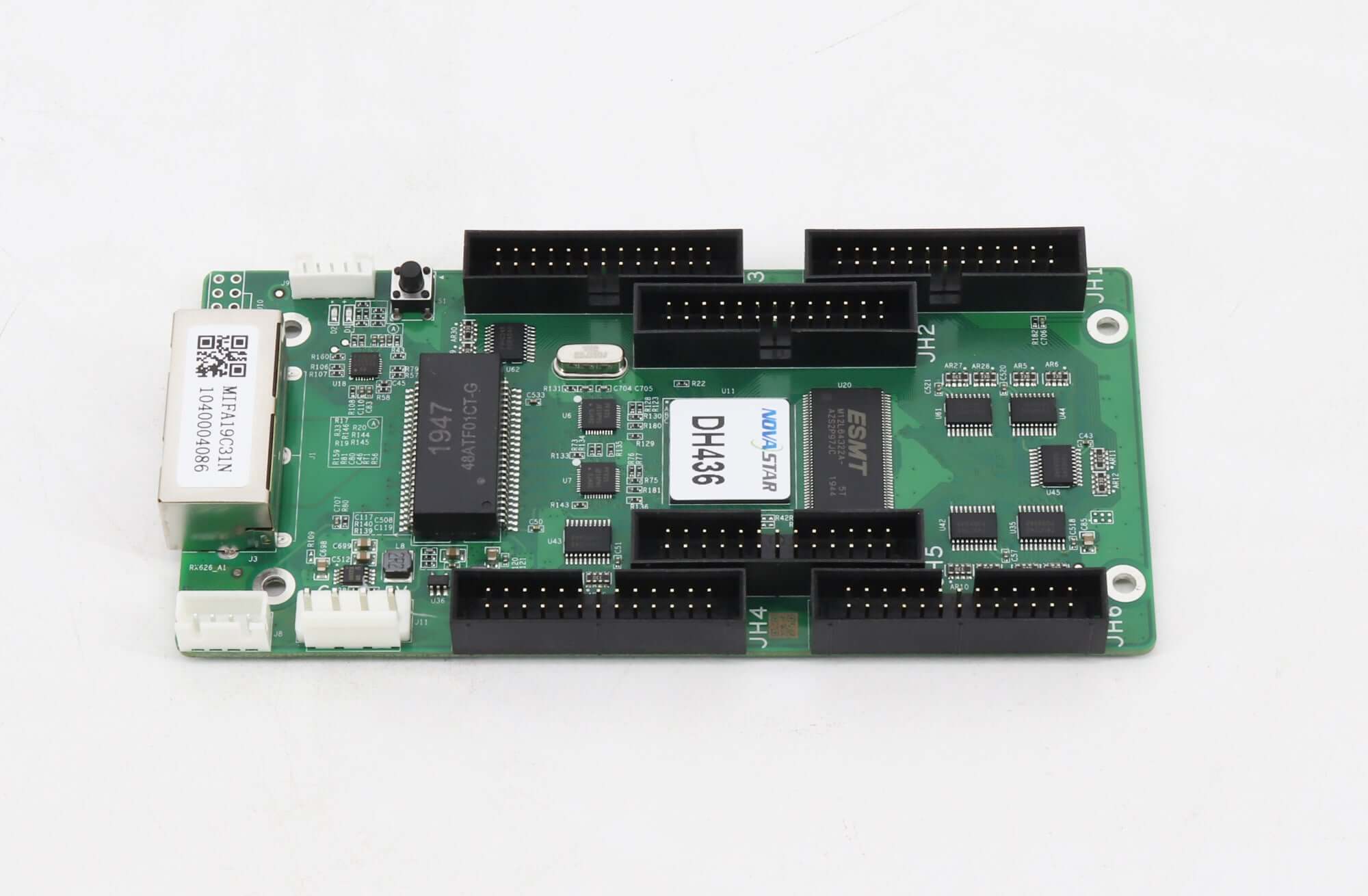

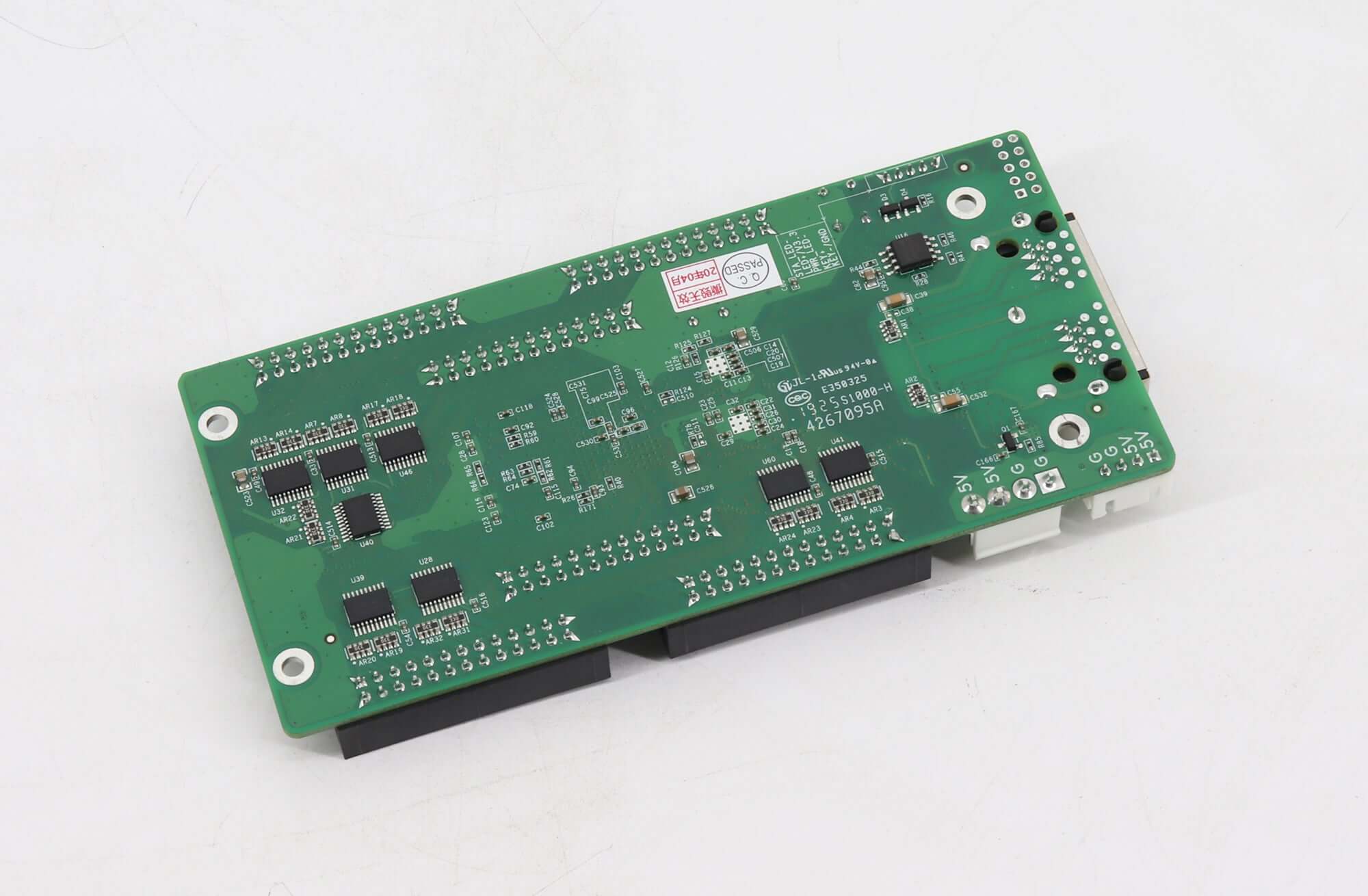

Product images
Model-specific specification downloads
DH436 V1.1.0 specification (Chinese)
DH3208 specification (Chinese)
MRV432 V1.0.1 specification (English)
Receiving-card FAQ
What is the difference between DH436 and MRV432?
The listing gives DH436 six HUB320 connectors, 24 RGB groups and a 512 × 256 load. MRV432 has eight HUB320 connectors, 32 parallel RGB or 64 serial groups, and a 512 × 512 load.
Does DH3208 have the same pixel capacity as MRV432?
The original listing does not state DH3208 capacity. Do not copy the MRV432 limit to DH3208; verify the exact model specification and configuration.
Do DH3208 and MRV432 support image rotation?
Yes. Both are listed with rotation in 90-degree increments.
Can these receiving cards be swapped without reconfiguration?
Compatibility is not established by this listing. Compare model revision, connector pinout, module scan and driver IC, then validate the correct configuration file before replacement.
Does DH436 support status monitoring and backup?
The listed functions include temperature, voltage and error monitoring, loop backup, configuration dual backup and program dual backup.
