NovaStar MRV570-1 LED Receiving Card | 512 × 256
$ 30.00
NovaStar MRV570-1 LED receiving card with up to 512 × 256 pixels at 60 Hz, pixel-level brightness and chroma calibration, module Flash management and status monitoring. Check cabinet wiring and configuration before ordering.
10000 in stock
NovaStar MRV570-1 LED receiving card
The NovaStar MRV570-1 is a receiving card for LED display cabinets, with a maximum resolution of 512 × 256 at 60 Hz. It supports pixel-level brightness and chroma calibration, module Flash management and operating-status monitoring.
Calibration and service functions
- Store calibration coefficients and module information through module Flash management.
- Adjust brightness and chroma at pixel level using a compatible calibration workflow.
- Set a stored image in the receiving card.
- Read back configuration parameters for maintenance.
- Monitor temperature, power-supply voltage and Ethernet communication status.
- Connect a monitoring card when required by the installation.
MRV570-1 parameter table
Maximum Resolution | 512×256@60Hz | |||||
Electrical Specifications | Input voltage | DC 3.8 V to 5.5 V | ||||
Rated current | 0.5 A | |||||
| Rated power consumption | 2.5 W | |||||
Operating Environment | Temperature | –20°C to +70°C | ||||
Humidity | 10% RH to 90% RH, non-condensing | |||||
Storage Environment | Temperature | –25°C to +125°C | ||||
Humidity | 0% RH to 95% RH, non-condensing | |||||
Physical Specifications | Dimensions | 145.8 mm × 91.5 mm × 18.4 mm | ||||
Packing Information | Packing specifications | An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards | ||||
Packing box dimensions | 625.0 mm × 180.0 mm × 470.0 mm | |||||
Values are retained from the original listing and checked against NovaStar Specifications V1.0.0. The storage range is distinct from the operating range. The packing figure describes a manufacturer carton and does not mean that a single order unit contains 100 cards.
Check cabinet compatibility
Before ordering, compare the existing card model, hub connections, cabinet pixel layout and power supply. Keep the cabinet configuration file available for replacement work. Matching the maximum resolution alone does not confirm that a card fits the module wiring or driver configuration.

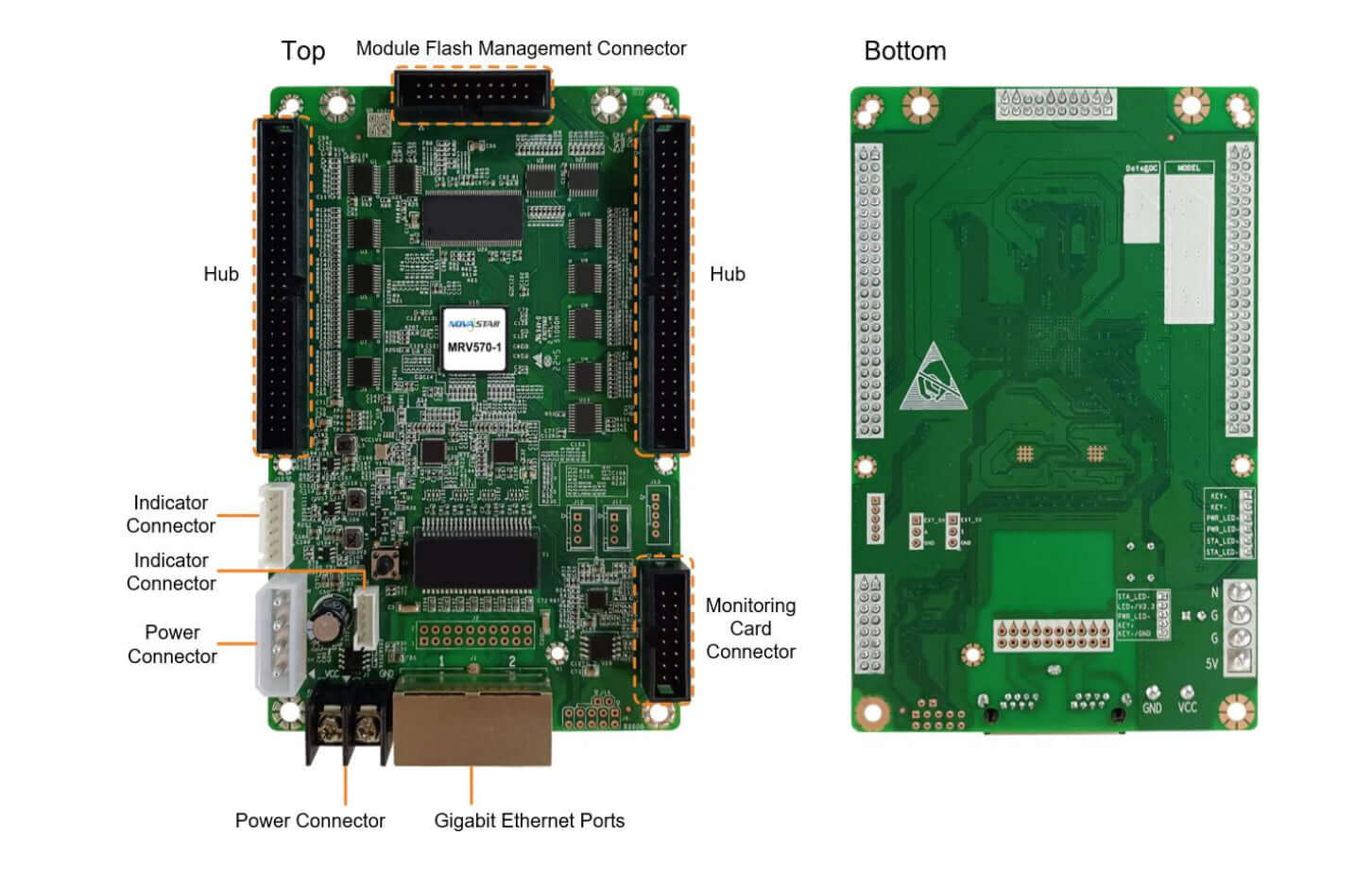

Product image
Frequently asked questions
What is the maximum MRV570-1 resolution?
The listed maximum is 512 × 256 pixels at 60 Hz. Check the module and cabinet configuration before selecting the card for a specific display.
Does the MRV570-1 support calibration?
Yes. It supports pixel-level brightness and chroma calibration, plus module Flash management for calibration coefficients and module information.
What voltage does the MRV570-1 require?
The input range is DC 3.8 V to 5.5 V. The specification lists a rated current of 0.5 A and rated power consumption of 2.5 W.
Can it read back configuration parameters?
Yes. Configuration parameter readback is a listed feature. Keep a copy of the correct cabinet settings before replacement or maintenance.
Does the 100-card packing specification mean I must buy 100?
It describes the manufacturer’s packing box. Confirm the order quantity, unit pricing and shipping packaging with sales.
Specification download
NovaStar MRV570-1 Specifications V1.0.0 (PDF)
Contact sales with the cabinet model and required quantity for pricing and compatibility checks.
| Weight | 0.35 kg |
|---|
