NovaStar TB10 Plus LED Multimedia Player with USB and Wi-Fi
Price range: $ 115.00 through $ 193.00
NovaStar TB10 Plus multimedia player with up to 650,000 pixels of LED loading, one Gigabit LED output, USB playback and Wi-Fi control.
Choose the standard or 4G-module option. Confirm screen dimensions, receiving-card compatibility and networking requirements; this model has no HDMI input.
NovaStar TB10 Plus LED multimedia player
The NovaStar TB10 Plus combines stored-media playback and LED sending for a screen with up to 650,000 pixels. It has one Gigabit LED output, separate network communication, USB playback and Wi-Fi control. Confirm the screen layout and choose the required 4G hardware option before ordering.
TB10 Plus specifications and interfaces
| LED loading capacity | Up to 650,000 pixels |
|---|---|
| Normal screen dimensions | Maximum width: 2,048 pixels; maximum height: 2,048 pixels. The total pixel limit still applies. |
| Ultra-long screen mode | Up to 8,192 pixels wide, within the total loading limit and the supported configuration requirements |
| LED connection | 1 × Gigabit Ethernet LED output |
| Communication and USB | Fast Ethernet communication port; USB 2.0 Type-A and USB Type-B; Wi-Fi AP/STA |
| Memory and storage | 2 GB RAM and 32 GB storage, per the manufacturer V1.0.0 specification |
| 4G | Optional module; the standard manufacturer configuration does not include it |
Choose the screen layout before the player
Provide the LED pixel width and height, cabinet arrangement and receiving-card model. Maximum width, maximum height and total loading are separate constraints; the listed limits do not mean a 2048 × 2048 screen is supported. An ultra-long layout requires its own configuration check.
The LED output and network communication port have different roles. Confirm the cabinet cabling and the content-publishing network separately. For a multi-screen project, specify whether coordinated playback is needed, because synchronization can change the available decoding performance.
Does TB10 Plus support live HDMI input?
The published TB10 Plus interfaces do not include an HDMI input. If your project needs a live HDMI source, compare a suitable model such as the TB40 multimedia player and confirm the required mode. Video decoding resolution is different from LED loading capacity and does not establish HDMI input support.
Standard or 4G-module configuration?
This listing offers TB10 Plus and TB10 Plus with 4G module options. Choose the required option, then confirm regional network compatibility, antennas, service requirements and the accessory list. The presence of a SIM slot or antenna connector alone does not show which hardware is included.

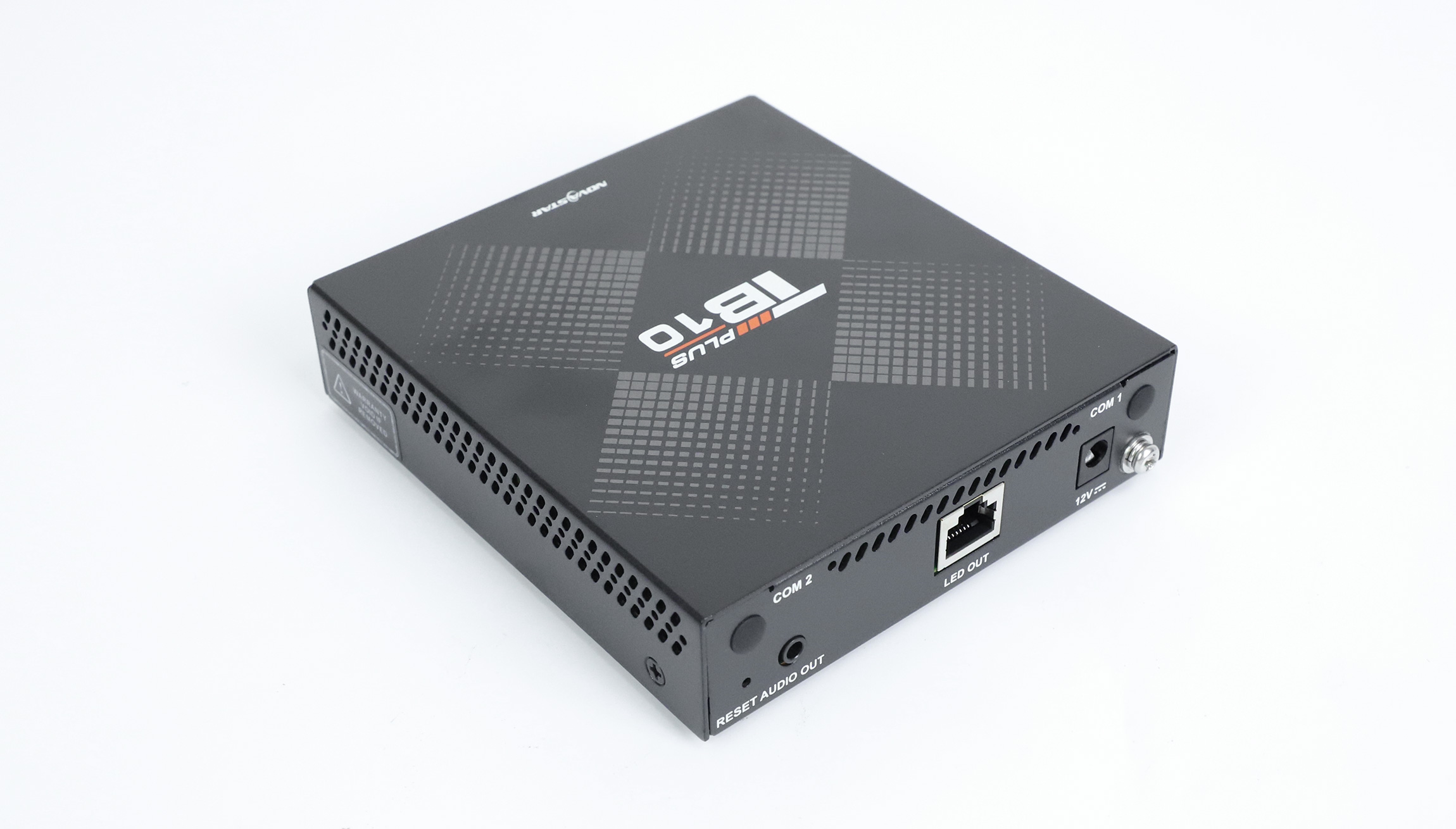

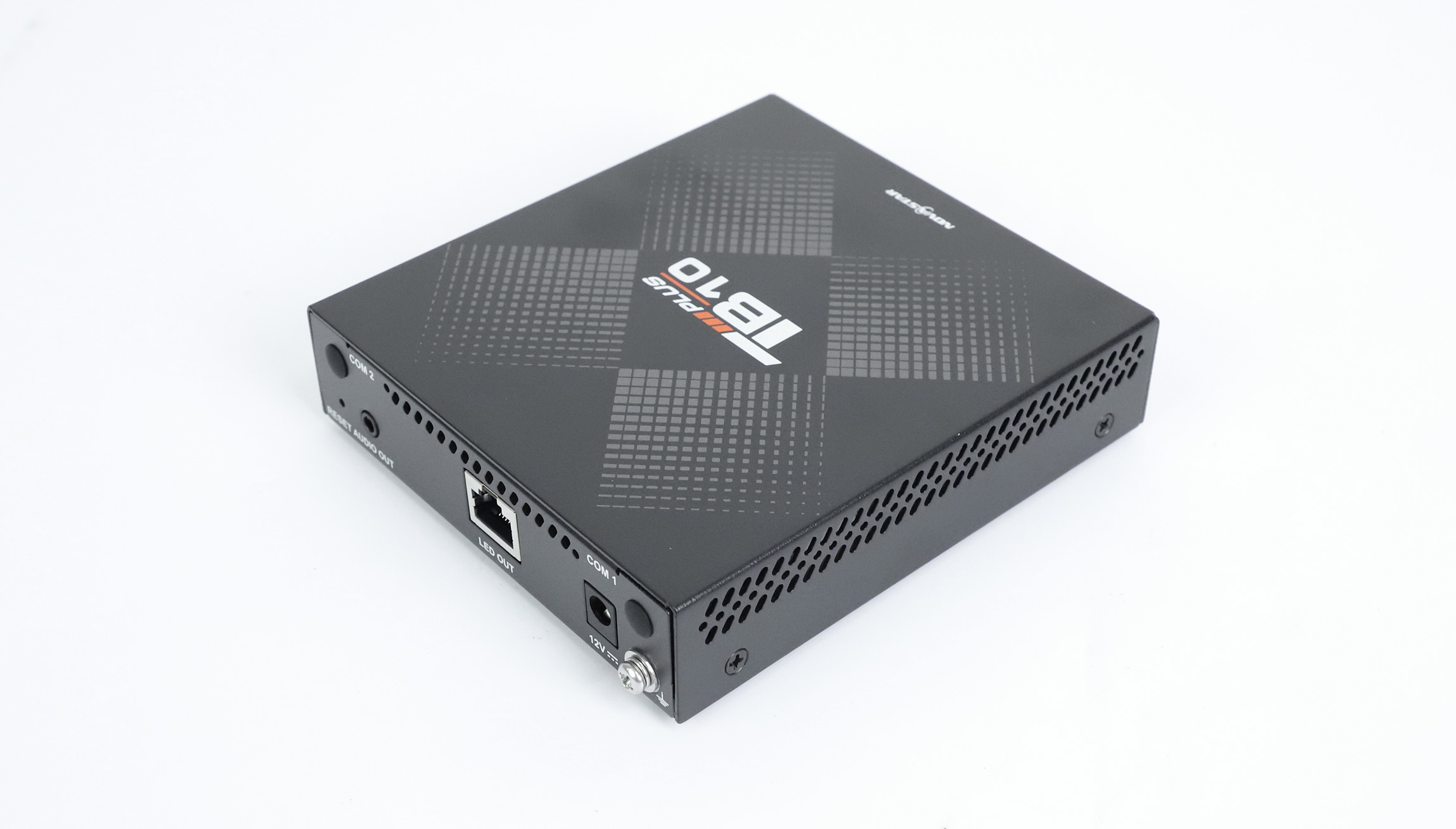

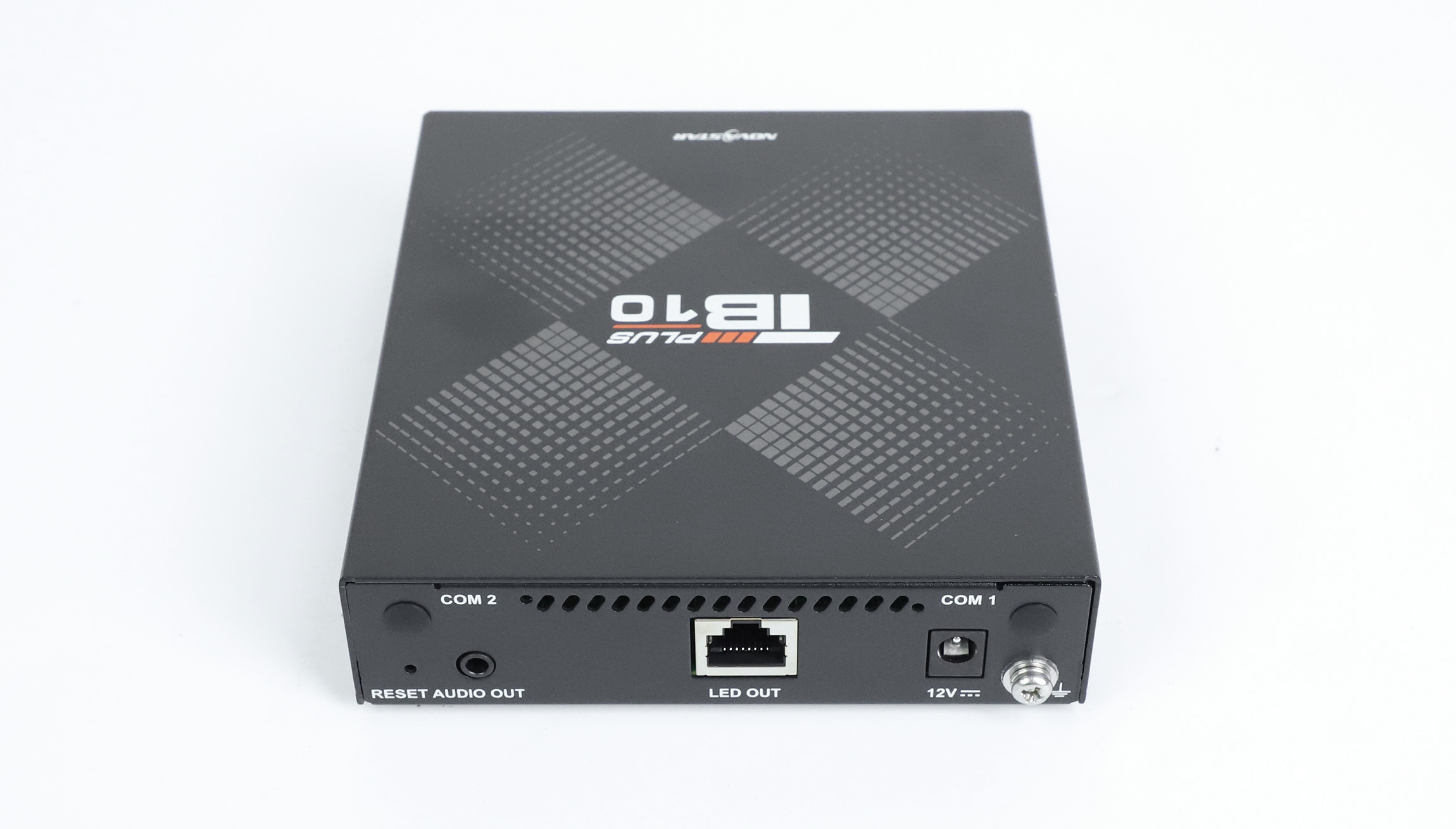

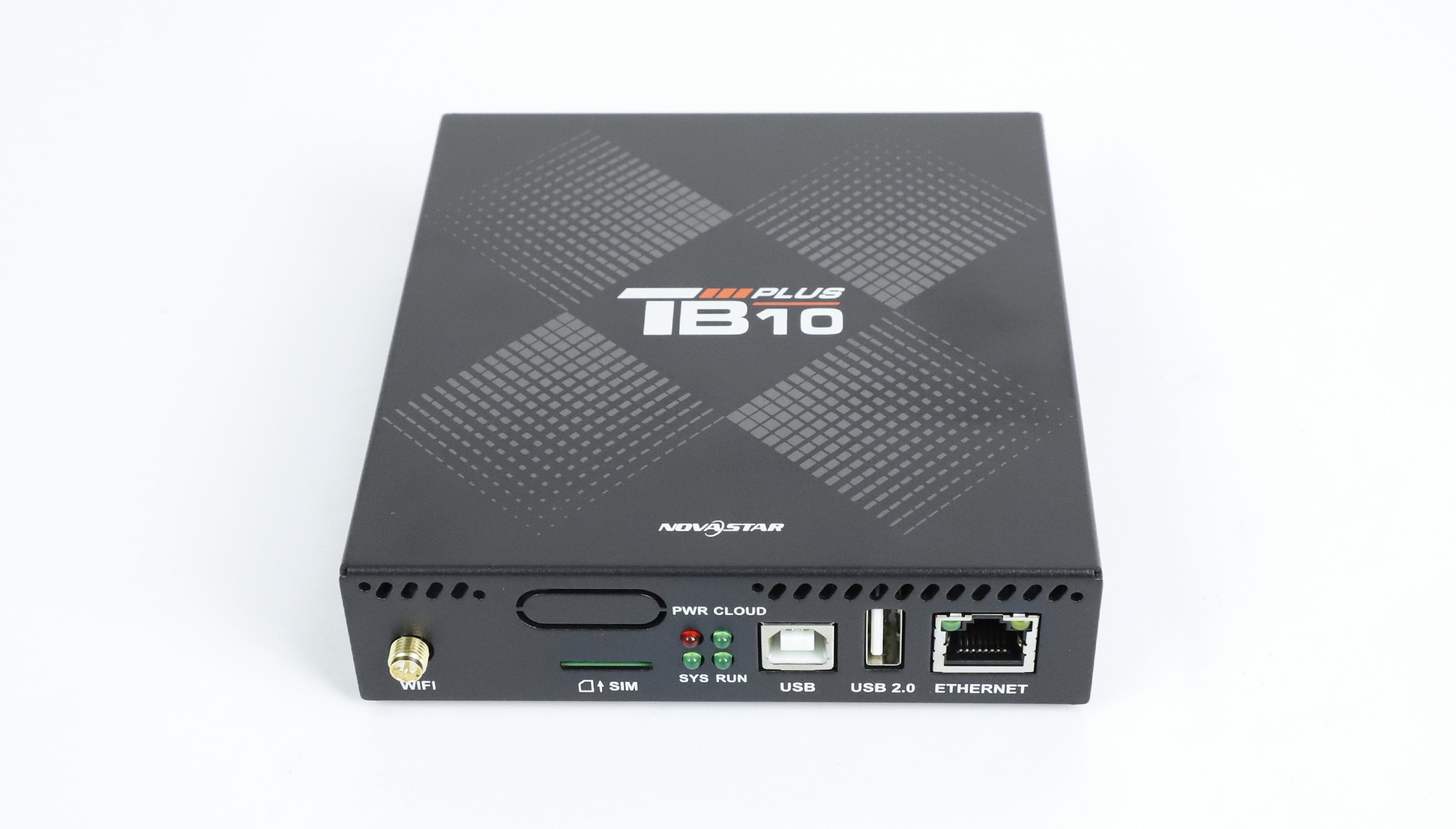

TB10 Plus product views
TB10 Plus frequently asked questions
Can TB10 Plus drive a 1920 × 1080 LED screen?
No. That LED matrix contains 2,073,600 pixels, which exceeds the 650,000-pixel loading limit. Check the actual screen pixel dimensions before selecting the player.
Can I connect a live HDMI source to TB10 Plus?
No HDMI input is listed for this model. Select a player with a documented HDMI input if the display needs live video from a computer or another HDMI source.
Is 4G included with TB10 Plus?
The standard manufacturer configuration excludes the optional 4G module. This listing offers a separate 4G-module option; confirm the selected option, regional network compatibility and included accessories.
Are the LED output and network port interchangeable?
No. The Gigabit LED output connects to the LED receiving-card system. The separate communication port is used for network communication and content management.
Confirm the TB10 Plus configuration
Contact EagerLED about your TB10 Plus requirements with the screen resolution, receiving cards, networking plan, selected 4G option, quantity and destination. Compare LED media players and LED receiving cards for the complete system.
Download the NovaStar TB10 Plus specification. Match the document to the supplied model and firmware revision.
| Weight | 1 kg |
|---|---|
| Novastar | Novastar TB10 Plus, Novastar TB10 Plus with 4G module |
