NovaStar V1260n All-in-One LED Video Controller
$ 1,663.00
NovaStar V1260n all-in-one LED video controller with 16 Gigabit Ethernet outputs and up to 10.4 million pixels of loading capacity.
HDMI 2.0, DP 1.2 and HDMI 1.3 inputs; 3G-SDI is optional. Confirm the screen resolution, source format and receiving-card configuration before ordering.
10000 in stock

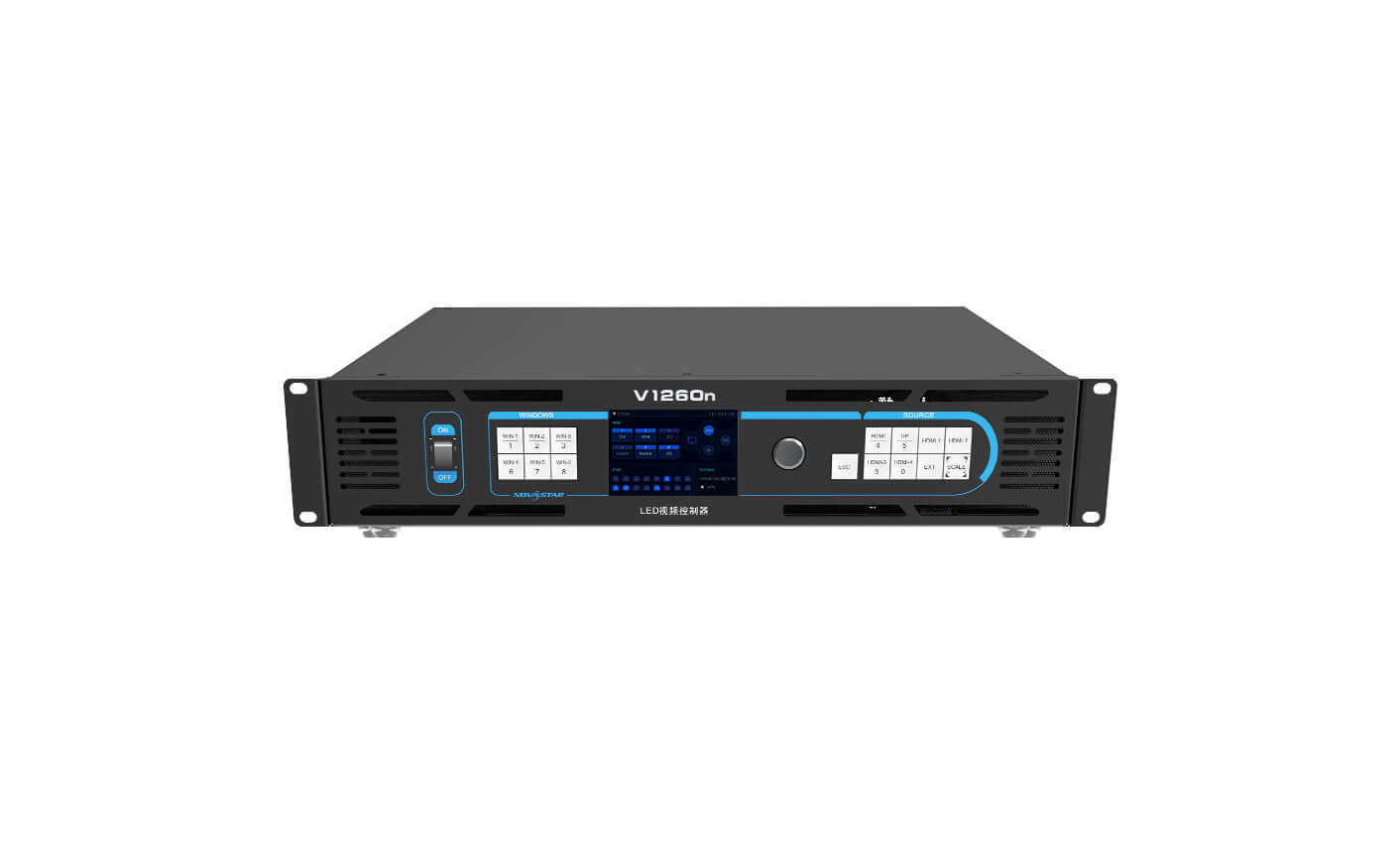

NovaStar V1260n LED video controller
The NovaStar V1260n combines video processing and LED sending functions, with 16 Gigabit Ethernet outputs and up to 10.4 million pixels of loading capacity. HDMI 2.0 and DisplayPort 1.2 inputs support 4K sources, making this controller an option for AV integrators planning large fixed LED installations.
This listing is for the V1260n model. Confirm the model label, rear-panel connections and supplied revision when replacing equipment or comparing quotations. Similar product names do not establish interchangeable inputs, accessories or firmware.
NovaStar V1260n specifications
| LED outputs | 16 Gigabit Ethernet ports; up to 10.4 million pixels total |
|---|---|
| Screen dimensions | Maximum width 16,384 pixels; maximum height 8,192 pixels. Total pixel and port limits still apply. |
| Video inputs | 1 × HDMI 2.0, 1 × DP 1.2 and 4 × HDMI 1.3; optional 3G-SDI input with loop output |
| HDMI 2.0 / DP 1.2 formats | 3840 × 2160 at 60 Hz in 8-bit RGB 4:4:4; 10/12-bit RGB 4:4:4 is limited to 30 Hz |
| Per-port reference load | Up to 650,000 pixels at 8-bit input and 60 Hz output |
| Window layout | Two 4K × 2K windows plus four 2K × 1K windows |
Technical reference: NovaStar V1260n specification PDF, V1.0.0 (May 11, 2023; Chinese). Confirm the document and firmware against the supplied unit before installation.
Check the complete LED canvas before ordering
A pixel total is the first check, not a complete system design. For example, a 3840 × 2160 LED canvas contains 8,294,400 pixels, below the published 10.4-million-pixel total. You must still confirm output allocation, receiving-card load, cabinet wiring, frame rate and bit depth for that layout.
The maximum width and height are independent limits. Multiplying 16,384 by 8,192 does not describe a supported canvas. Send the actual screen width and height in pixels, rather than only the screen dimensions in meters or feet.

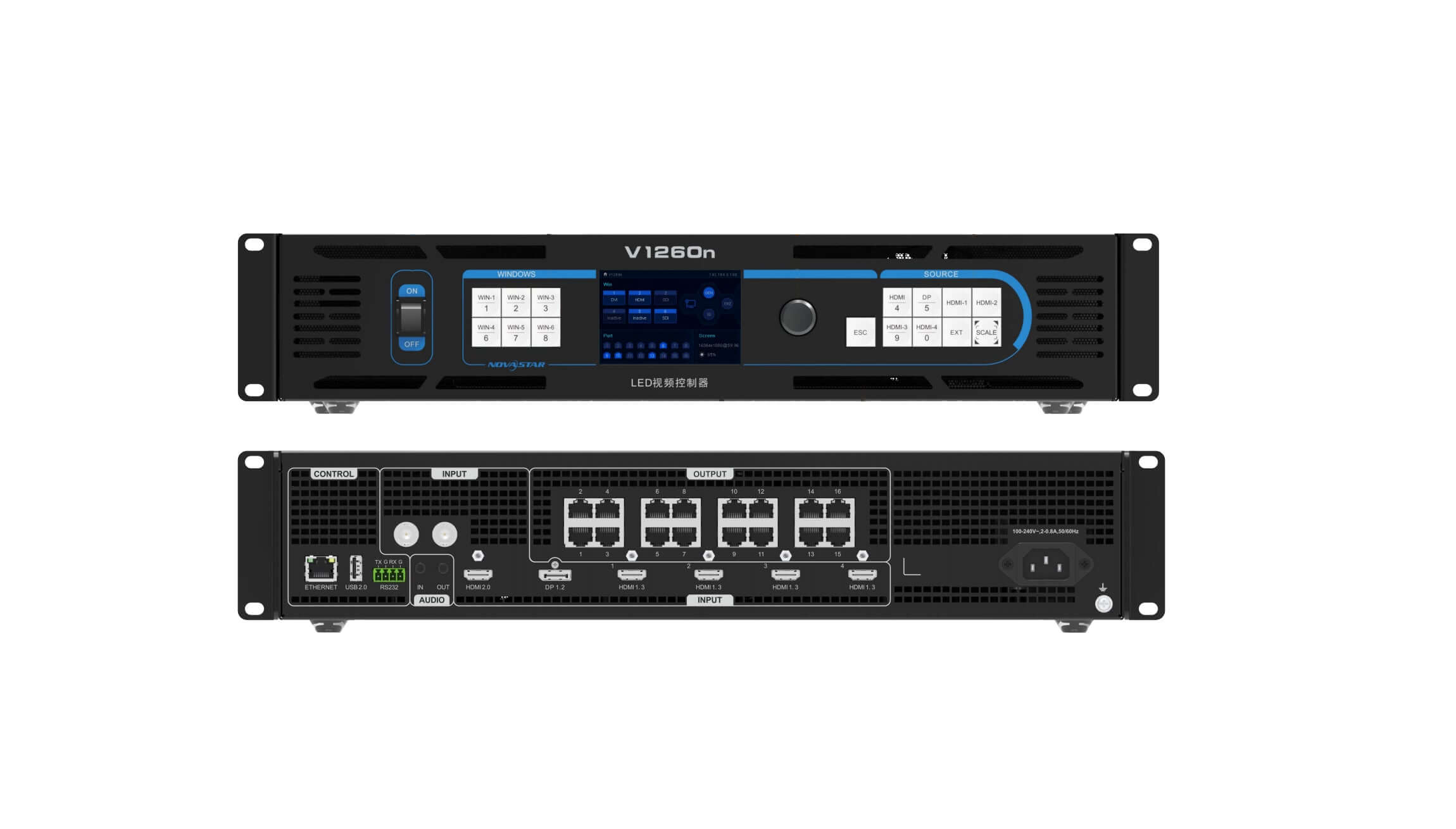

Product panels and connection planning
Use the panel image to identify connections, then verify the actual unit. Keep a port map for the installation showing which cabinets connect to each output. For a replacement project, retain the existing screen configuration and record the receiving-card model before disconnecting equipment.
V1260n buying and setup questions
Does the V1260n include optical outputs?
The referenced V1260n specification lists Ethernet LED outputs, and the product panel shown here has no OPT output connectors. If the project requires fiber transmission, ask EagerLED to verify an appropriate transmission arrangement before ordering.
Is 3G-SDI included as standard?
3G-SDI is optional in the referenced specification. Include the SDI requirement in your inquiry and ask for written confirmation of the supplied input configuration. Do not assume that every available connector position is populated.
Can the USB connection play media files?
The specification identifies USB for firmware updates from a USB drive. Do not treat it as a media-playback input. Confirm a suitable external video source and connection for the content you intend to display.
Does 3D change the loading capacity?
Yes. The specification states that enabling 3D halves the output loading capacity. Have the complete 3D configuration checked before selecting the controller; the normal loading figure should not be used as the 3D limit.
Get a V1260n configuration check and quotation
Send these details so EagerLED can review the proposed system and quote the required configuration:
- Exact controller model, quantity and delivery destination.
- LED canvas resolution, cabinet arrangement and receiving-card models.
- Source connectors, resolution, frame rate, bit depth and window layout.
- Optional SDI, 3D, backup or long-distance transmission requirements.
Request a NovaStar V1260n configuration check. Ask sales to confirm the accessory list, availability, freight and delivery estimate for your order. You can also browse LED video controllers and LED receiving cards while planning the system.
