NovaStar VX2000 Pro All-in-One LED Display Controller
NovaStar VX2000 Pro all-in-one LED controller combines processing and sending with 20 Ethernet outputs, up to 13 million pixels and 4K input capability.
- 12 x 2K layer resources
- DP, HDMI and 12G-SDI inputs
- Video controller, fiber converter and ByPass modes
Send your screen resolution and receiving-card model for a configuration check.
The NovaStar VX2000 Pro combines LED video processing and display control in one device. It provides 20 Gigabit Ethernet outputs and supports up to 13 million pixels for rental, stage and fine-pitch LED display projects.
At a glance: 20 Ethernet outputs · 13 million pixels · 12 x 2K layer resources · DP, HDMI and 12G-SDI inputs.
Specifications | Screen sizing | Compare models | FAQs | Price and quote
NovaStar VX2000 Pro specifications at a glance
| Ethernet outputs | 20 Gigabit Ethernet ports |
|---|---|
| Single Ethernet port | Up to 650,000 pixels at 8-bit output or 480,000 at 10-bit; verify frame rate and port mapping |
| Maximum loading capacity | Up to 13 million pixels |
| Output dimension limits | Maximum width: 16,384 pixels; maximum height: 8,192 pixels |
| Video input capability | Up to 4K x 2K at 60 Hz; supported formats depend on the input connector |
| Working modes | Video controller, fiber converter and ByPass |
| Layer resources | 12 x 2K x 1K resources; a larger layer uses multiple resources |
Selection note: Maximum width and maximum height are separate limits, not a supported 16,384 x 8,192 canvas. Confirm the total pixel count, port allocation, input format and required functions for your actual screen layout.
Will the VX2000 Pro fit your LED wall?
Multiply the screen pixel width by its pixel height. These examples compare total pixels with the nominal 13-million-pixel limit; they do not confirm a complete working configuration.
| LED wall resolution | Total pixels | Nominal capacity check |
|---|---|---|
| 3840 x 2160 | 8,294,400 | Below the total limit |
| 7680 x 1080 | 8,294,400 | Below the total limit |
| 5120 x 2160 | 11,059,200 | Below the total limit |
| 7680 x 2160 | 16,588,800 | Exceeds one device’s total limit |
Then verify the cabinet map and individual port loads. Higher bit depth, frame rate and feature settings can change the usable capacity.
Check your LED wall configuration before ordering
- Provide the total screen resolution and the pixel resolution of each cabinet.
- Identify the receiving-card model, firmware and current configuration software.
- Specify the video source connector, resolution and frame rate.
- Confirm requirements for fiber transmission, backup, 3D and low latency. Feature availability depends on the working mode and connected equipment.
Request a VX2000 Pro quotation and configuration check. Include the model name, quantity, screen layout and destination country. Contact sales for specific pricing.
Compare other LED video controllers and review the receiving-card range when planning the complete system. A matching brand name alone does not confirm compatibility.

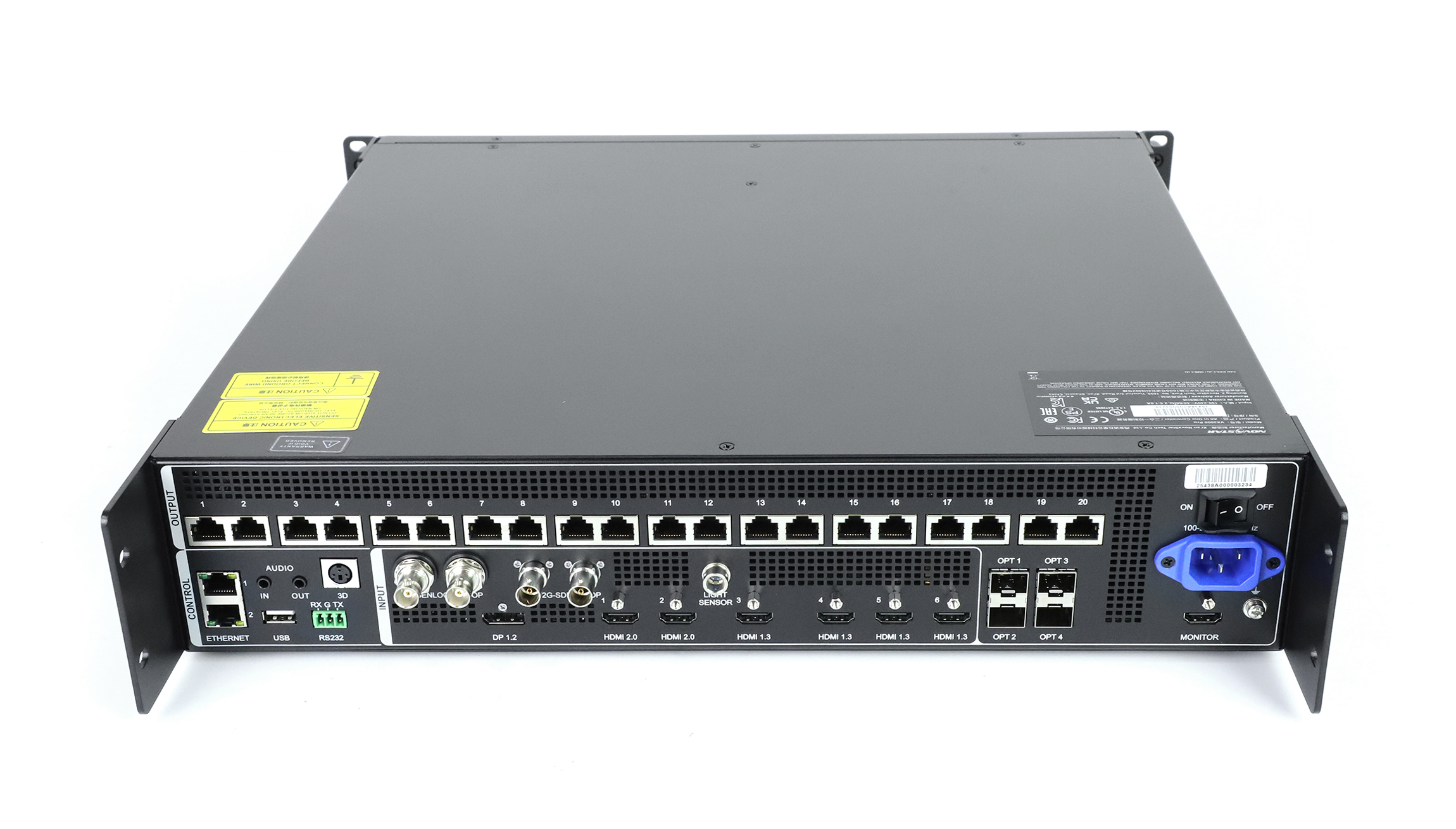

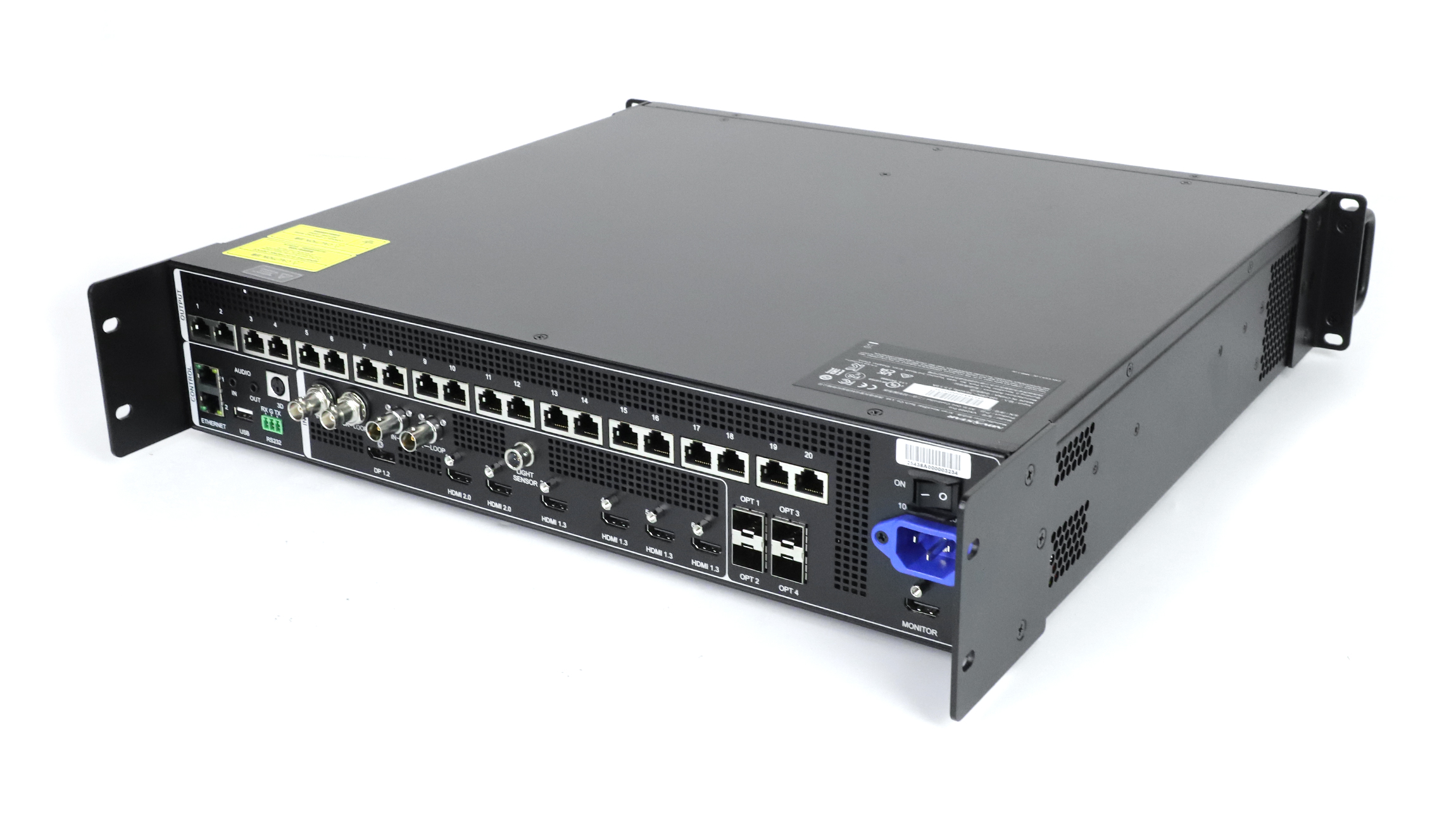

Video inputs and optical connections
| Connection | Quantity and purpose |
|---|---|
| DisplayPort | 1 x DP 1.2 input |
| HDMI | 2 x HDMI 2.0 inputs and 4 x HDMI 1.3 inputs |
| SDI | 1 x 12G-SDI input with loop-through |
| USB media | 1 x USB 3.0 for image and video playback from a USB drive |
| Optical fiber | 4 OPT ports; OPT 1/2 can serve as video inputs or sending outputs, while OPT 3/4 provide copied or backup outputs |
| Monitoring | 1 x HDMI 1.3 monitoring output |
The 4K input specification does not apply to every connector. Confirm source resolution, refresh rate and bit depth before choosing a connection. Optical modules are not factory-installed. Specify them separately and match the fiber type, distance and connected equipment.
Video controller, fiber converter or ByPass?
- Video controller: use video processing, scaling and layer composition to prepare sources for the LED wall.
- Fiber converter: use the device for optical and Ethernet signal conversion rather than full video composition.
- ByPass: send the source through without the normal video-processing workflow. Check mode-specific function and latency limits before deployment.
Layers, presets and screen adjustment
The controller provides 12 x 2K x 1K layer resources. Larger layers consume multiple resources, so this does not mean twelve full 4K layers at once. Presets let operators recall saved layouts, while image scaling, color adjustment and pixel-level brightness and chroma calibration support screen setup.
Control options include the front panel, NovaLCT, Unico and the VICP app. Software, firmware, receiving cards and the selected working mode determine which functions are available. Confirm backup, synchronization, 3D and low-latency requirements as a complete system.
VX1000 Pro vs VX2000 Pro
| Model | Ports | Max. pixels | 2K resources |
|---|---|---|---|
| VX1000 Pro | 10 | 6.5 million | 6 |
| VX2000 Pro | 20 | 13 million | 12 |
Compare the actual screen map, inputs and layer requirements before choosing. A higher-capacity controller still needs a valid port layout and compatible receiving cards.
Frequently asked questions
How many pixels can the VX2000 Pro control?
It supports up to 13 million pixels. The 16,384-pixel width and 8,192-pixel height are separate dimension limits; their product is not the supported canvas size. Higher frame rates, bit depth, backup allocation and feature settings can reduce usable loading capacity.
What is the NovaStar VX2000 Pro price?
Request a project quotation from EagerLED with your quantity, destination and required accessories. Ask sales to confirm the controller configuration, optical modules, delivery time and shipping costs before ordering.
Does the VX2000 Pro support twelve full 4K layers?
No. Its twelve 2K resources allow up to three 4K x 2K layers, subject to connector capacity and configuration.
Does 3D change the maximum screen capacity?
Yes. Side-by-Side or Top-and-Bottom 3D halves output capacity. Recalculate the screen and port loads before enabling 3D.
Is zero-frame latency available in every mode?
No. Zero-frame device delay requires low latency with ByPass; normal video processing is unavailable in ByPass.

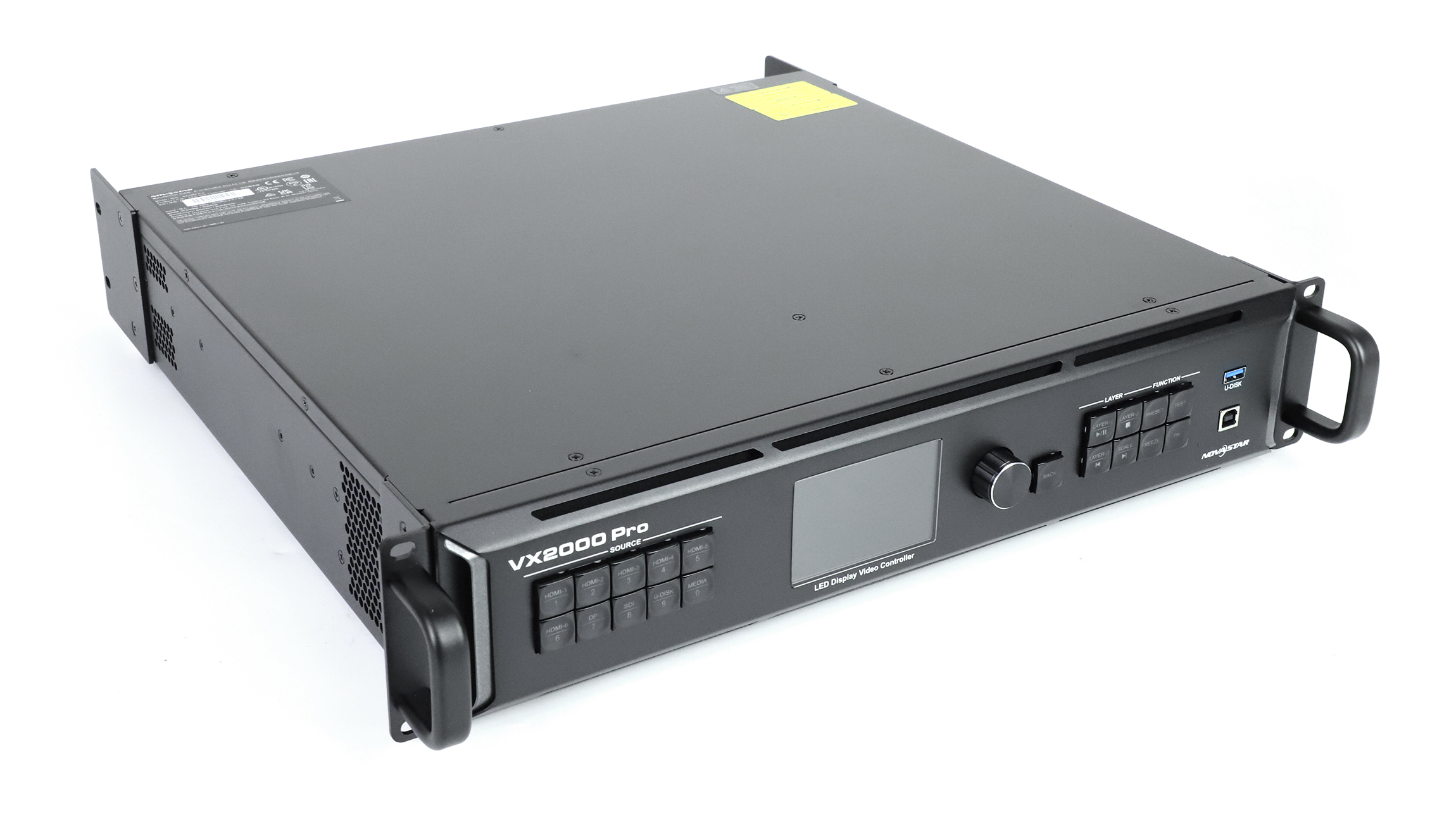

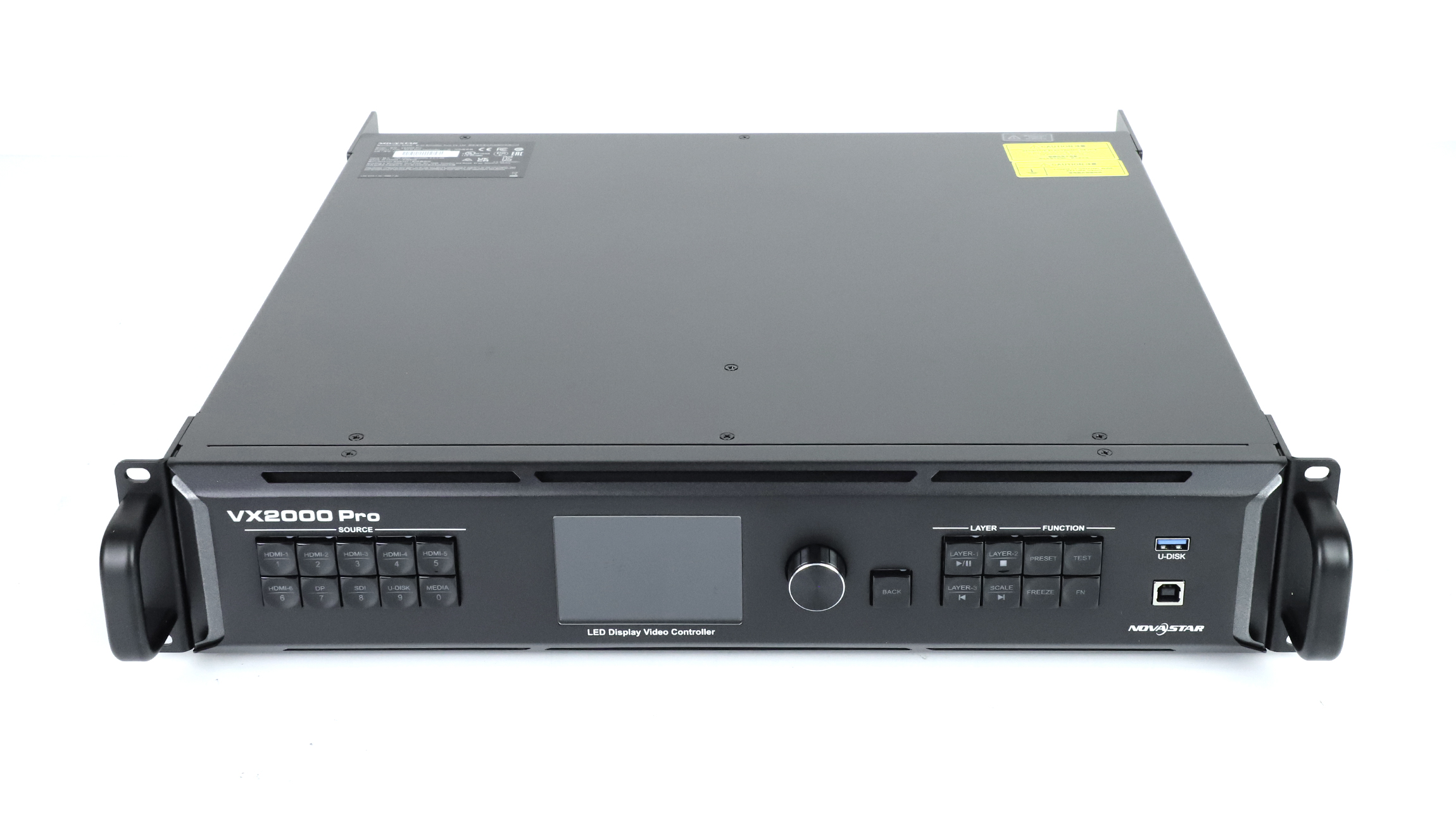

Product images and specification download
Download Specification:
Novastar VX2000 Pro All-in-One Controller Specification
This download is a specification sheet, not a user manual or firmware package. Ask EagerLED for guidance matching the exact model and installed firmware. Technical reference: NovaStar VX2000 Pro All-in-One Controller Specifications. Confirm the applicable document revision and firmware for your supplied device.
NovaStar VX2000 Pro price and project quotation
Send the screen resolution, cabinet map, receiving-card model, source formats, required layers, quantity and destination country. Ask sales to confirm optical modules, accessories, availability, shipping and delivery before ordering.
