Rong-Electric MDK300PC5 5V 60A 300W LED Power Supply
$ 29.60
MDK300PC5 5V, 60A, 300W LED power supply with 90–264Vac input range and 185 × 55 × 30mm housing. Consult the original PDF for mounting and derating.
9974 in stock
MDK300PC5 LED Display Power Supply
The Rong-Electric MDK300PC5 is a 5V, 60A, 300W LED screen power supply. The retained manufacturer PDF lists 100–240Vac rated input and 90–264Vac input range, alongside a 185 × 55 × 30mm housing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MDK300PC5 |
| Rated output power | 300W |
| Rated DC output | +5.0Vdc |
| Output current range | 0–60A |
| Output voltage range | 4.9–5.1Vdc |
| Rated input voltage | 100–240Vac |
| Input voltage range | 90–264Vac |
| Input frequency | 47–63Hz |
| Efficiency | ≥90.0% at 220Vac, full load and room temperature |
| Power factor | ≥0.95 at full load |
| Dimensions (L × W × H) | 185 × 55 × 30mm; dimensional tolerance ±1.0mm |
Selection and Installation
Check the cabinet’s module voltage, peak current, terminals and mounting arrangement. Follow the input and temperature derating curves in the PDF. Its environmental notes require an auxiliary baseplate of at least 300 × 300 × 5.0mm for high-temperature full-load aging tests; review the intended thermal installation before loading the supply.
Frequently Asked Questions
1. What is the MDK300PC5 output rating?
The manufacturer specification lists 300W, +5.0Vdc output and a 0–60A output current range.
2. What is the difference between rated input and input range?
For this model, the electrical table lists 100–240Vac rated input and a 90–264Vac input voltage range. Use the derating curve when assessing available output.
3. Can MDK300PC5 replace MDK300SH5?
Compare both complete specifications first. Their input ratings differ, and matching DC output does not confirm connector, mounting or thermal compatibility.
4. Where can I find the MDK300PC5 drawing?
The retained PDF below includes dimensions, mounting information and derating curves.

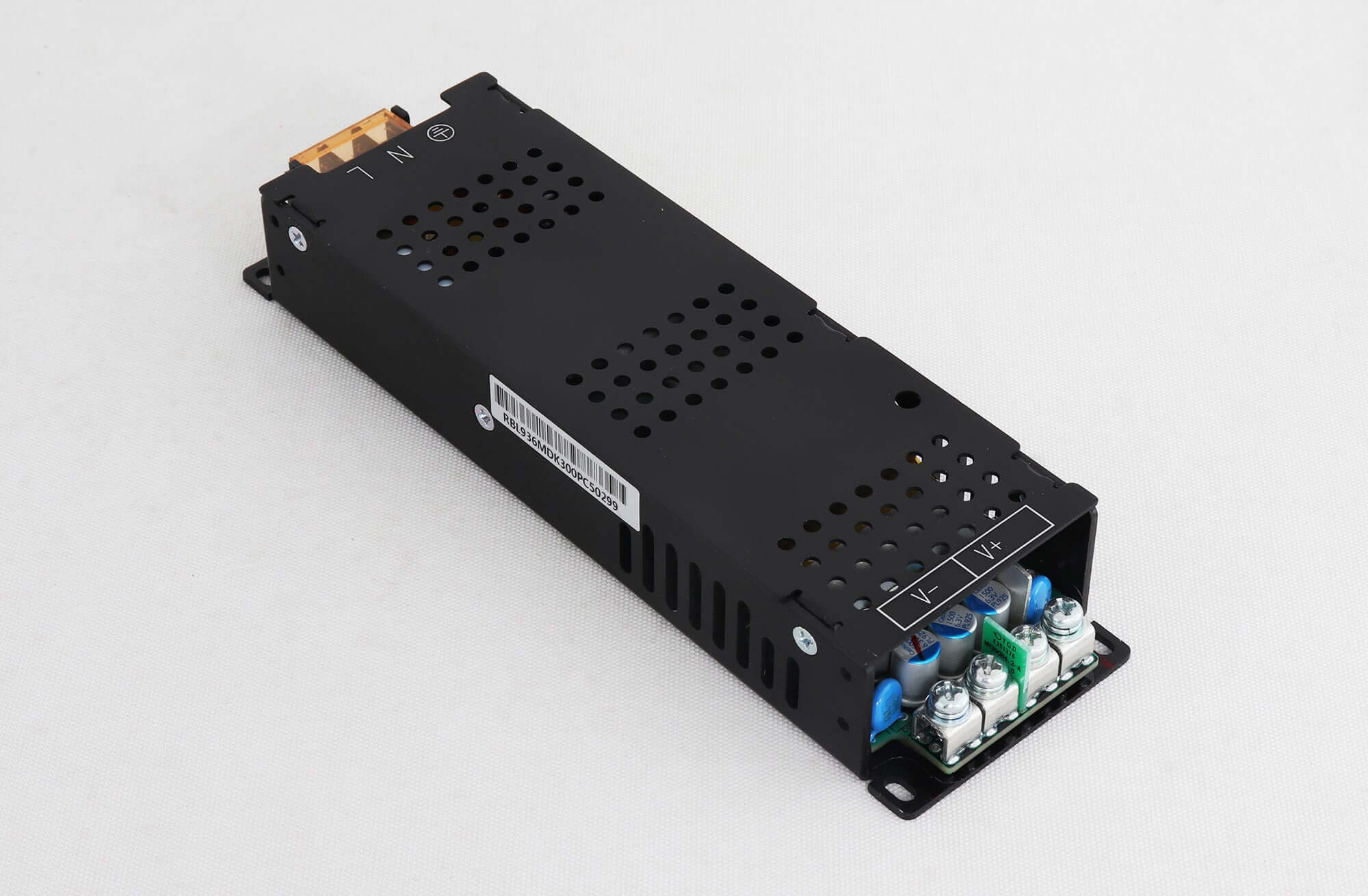

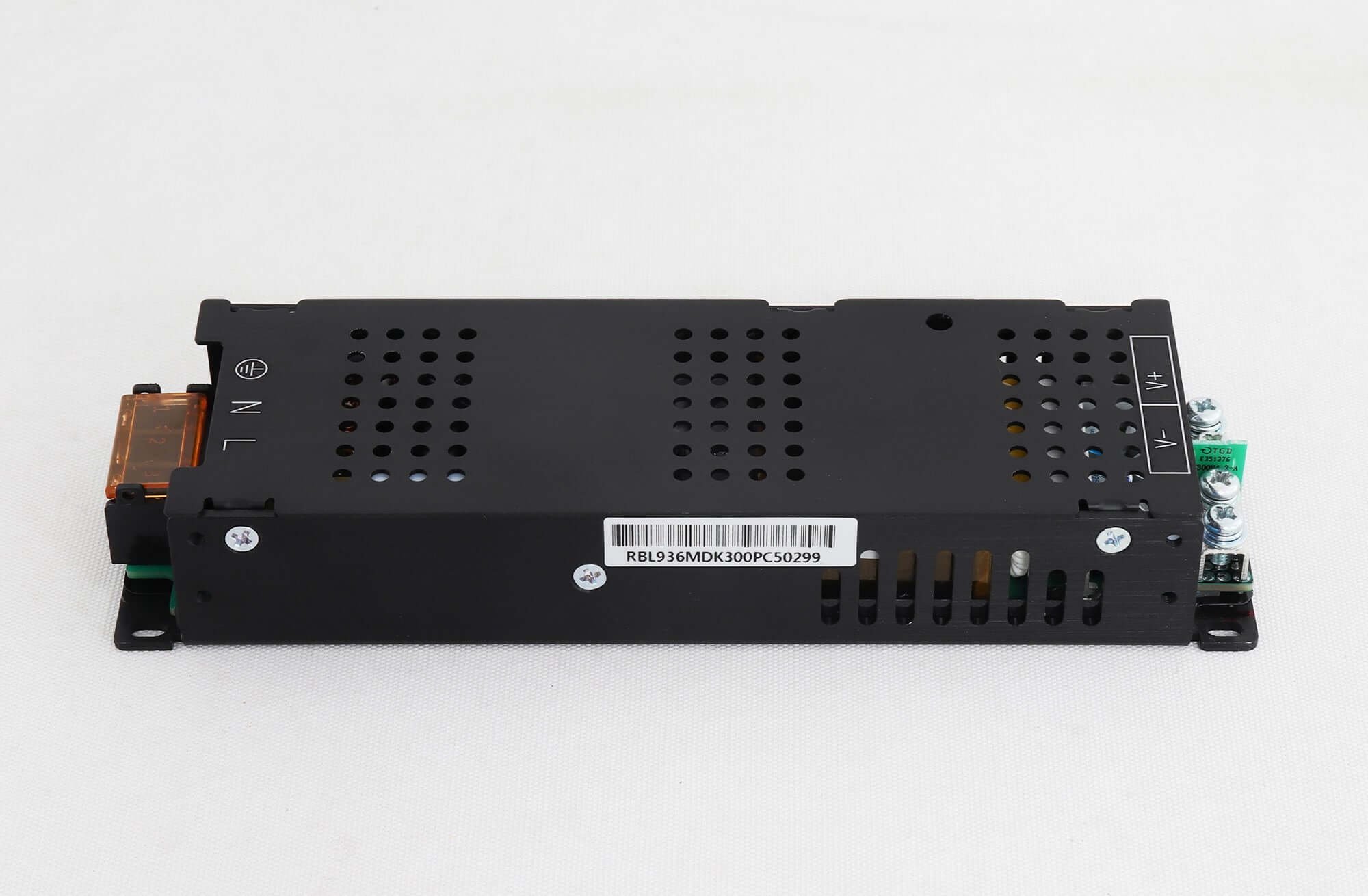

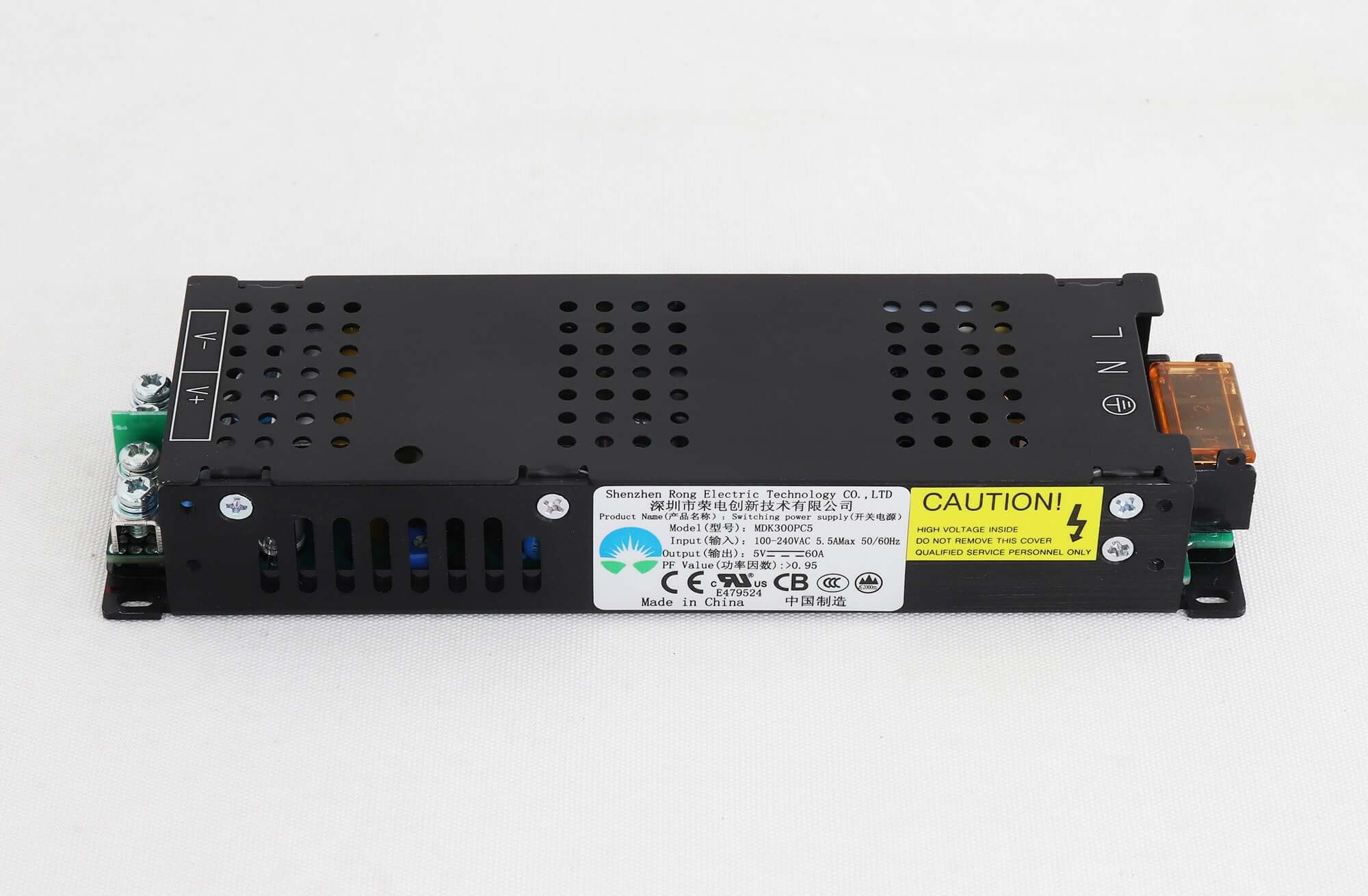

Product Images and Documentation
Rong-Electric MDK300PC5 High Efficiency LED Screen Wall Power Supply Specification
| Weight | 0.8 kg |
|---|
