Sysolution D60-12A LED Receiving Card – 12 HUB75E
$ 16.00
Sysolution D60-12A LED receiving card with 12 HUB75E connectors, up to 24 groups of parallel RGB data and a maximum load of 512 × 256 pixels. Review the parameter table and downloadable specification before choosing a replacement.
10000 in stock
Sysolution D60-12A Receiving Card Overview
The Sysolution D60-12A is an LED display receiving card with 12 HUB75E connectors, up to 24 groups of parallel RGB data and a maximum load of 512 × 256 pixels. It is intended for LED screen cabinets used in rental, broadcast and event installations.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | D60-12A |
| Output interfaces | 12 × HUB75E |
| Parallel RGB data | Up to 24 groups |
| Maximum loading | 512 × 256 pixels |
| Chromaticity correction loading | 256 × 320 pixels |
| Scan support | 1–64 scan |
| Input voltage | DC 3.5–5.5 V |
| Rated current / power | 0.6 A / 3 W |
| Operating temperature | -20°C to 70°C |
| Operating humidity | 10%RH–90%RH |
| Board size, existing listing | 144.02 mm × 91.19 mm |
The linked specification’s working-parameters table lists the board size as 144.02 mm × 91.2 mm. Check the mechanical drawing and the actual board when confirming mounting clearances.
Configuration and Selection
LedSet 4.0 provides receiving-card configuration readback and communication monitoring. Network-port hot backup requires the appropriate main and standby cable arrangement.
For a replacement, compare the module connector pinout, driver IC, scan configuration and cabinet mapping with your existing system before ordering. A matching connector alone does not establish compatibility. Keep a copy of the working screen configuration before replacing a card.

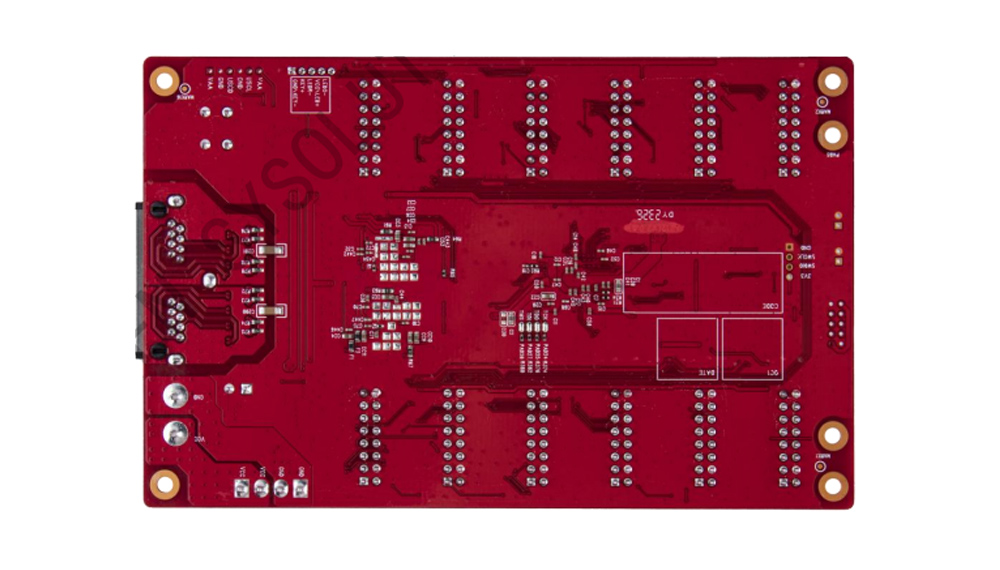

Product Images
Download Specification
Sysolution D60-12A Receiving Card Specification (PDF)
Frequently Asked Questions
1. How many HUB75E connectors does the D60-12A have?
It has 12 HUB75E connectors for up to 24 groups of parallel RGB data.
2. What is the maximum pixel load?
The specified maximum is 512 × 256 pixels; chromaticity correction loading is listed separately as 256 × 320 pixels.
3. Which software is referenced for configuration?
The specification references LedSet 4.0.
4. Can I replace another receiving card with this model?
Confirm the sending system, module pinout, driver IC and scan settings first. Provide the current card model and module details when requesting a compatibility check.
