Huidu HD-40S-BOX 1GB + 32GB Android LCD Signage Player
$ 70.00
Huidu HD-40S-BOX Android LCD signage player with Allwinner A40i, 1 GB RAM, 32 GB storage, HDMI output, Wi-Fi and Ethernet. Review the model-specific specifications and legacy HD-40B download notice before ordering.
9952 in stock
Huidu HD-40S-BOX Android LCD signage player
The HD-40S-BOX (1 GB + 32 GB) is an Android player for LCD digital signage with HDMI output, Wi-Fi and Ethernet. It supports local content updates and network management for connected displays.
Verified model and specifications
The table follows the manufacturer’s HD-40S-BOX V1.3 specification, whose update history dates the storage change to August 13, 2024. The existing page address and original download refer to HD-40B; check the supplied product label and configuration when replacing an older unit.
| Model | HD-40S-BOX LCD Android signage player |
|---|---|
| Processor / graphics | Allwinner A40i, quad-core, up to 1.2 GHz; Mali400 MP2 |
| RAM / storage | Standard 1 GB RAM + 32 GB storage in V1.3 |
| Operating system | Android 7.1.2 in overview/software table; CPU row also prints Android 7.1.1. Confirm the installed build. |
| Display output | 1 HDMI output; match the LCD and required timing before purchase |
| Network | 100 Mbps RJ45; 2.4 GHz Wi-Fi, 802.11b/g/n |
| Program updates | Wi-Fi, USB drive, TF card, LAN or Internet |
| USB | 1 USB 2.0 HOST; 1 USB 2.0/OTG interface |
| Audio | 3.5 mm two-channel audio output |
| Rotation / clock | 0°, 90°, 180° or 270° manual rotation; built-in RTC |
| Power input | 12 V DC; verify the adapter and connector for the supplied unit |
| Environment | Working −20°C to +70°C; storage −40°C to +70°C; storage humidity 10–90% RH |
LCD compatibility and content management
Confirm the LCD’s HDMI input, required resolution, rotation and audio connection before installation. This page does not promise HDMI capture or a 4K output mode for the supplied box. The previous RK3399 description was inconsistent with the model-specific manufacturer document.
Choose Wi-Fi, USB or TF-card updates for local content delivery, or LAN/Internet access for managing connected screens. Record the installed Android and firmware versions before software changes, and confirm any optional hardware with the order.

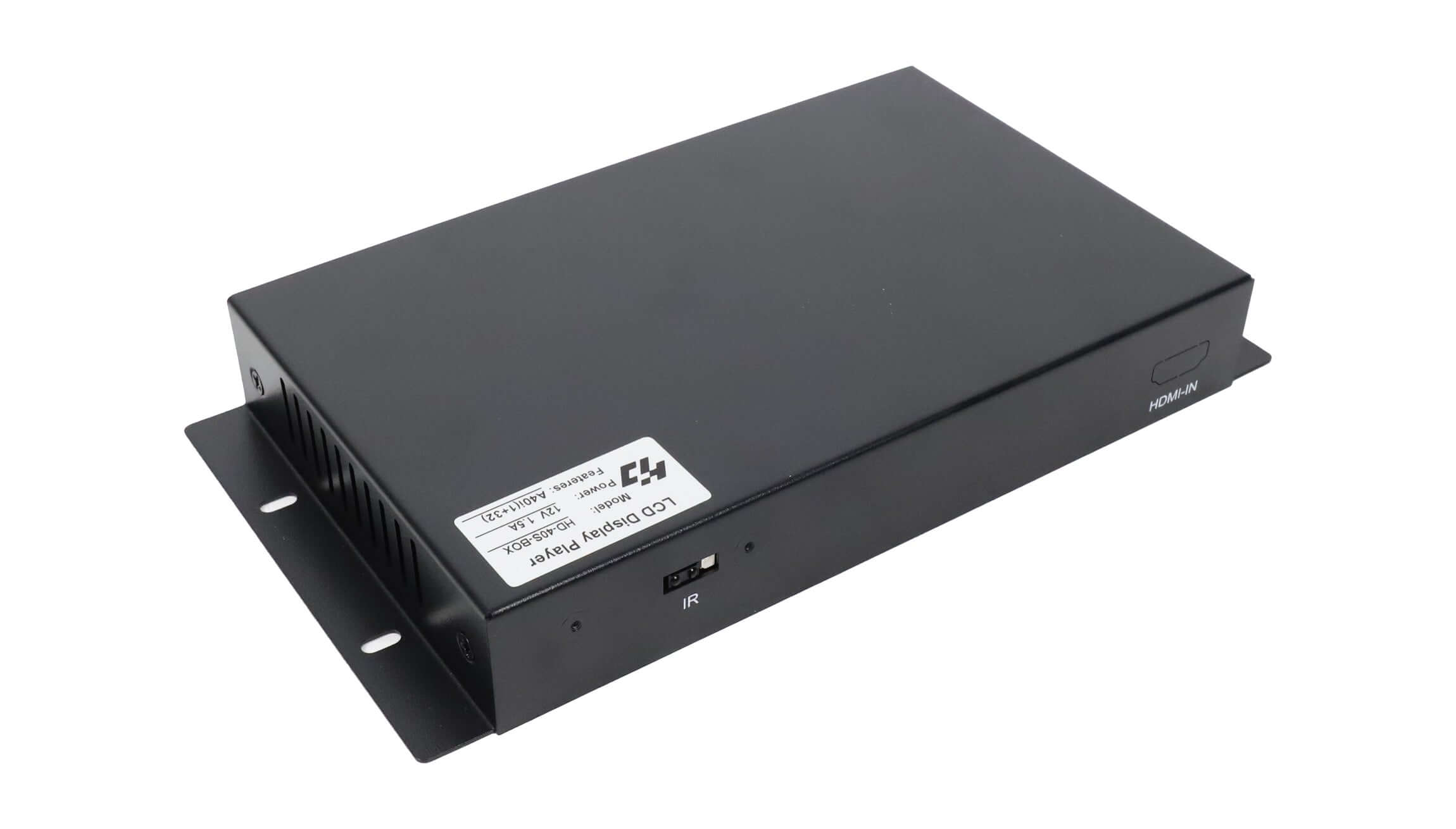

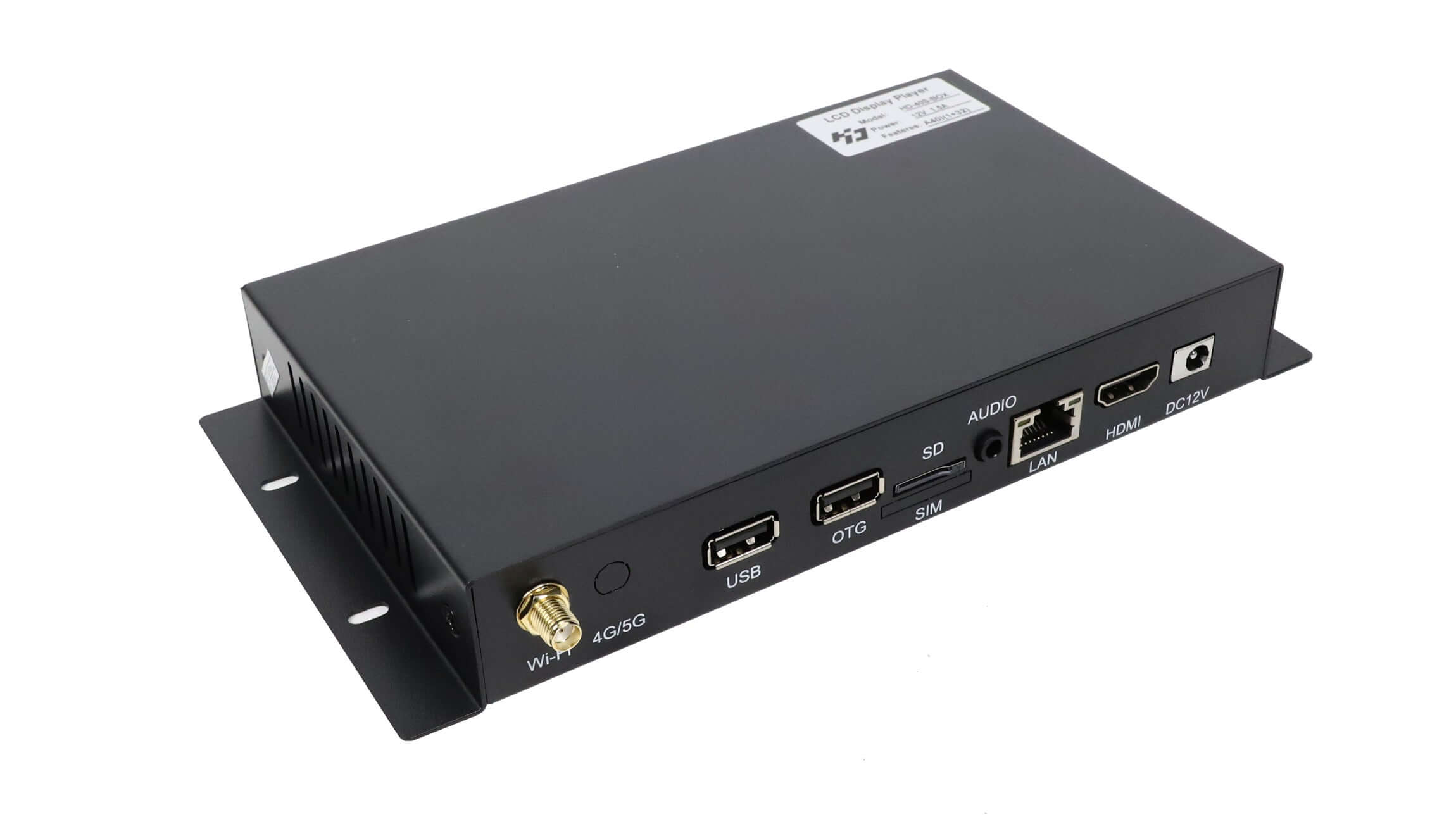

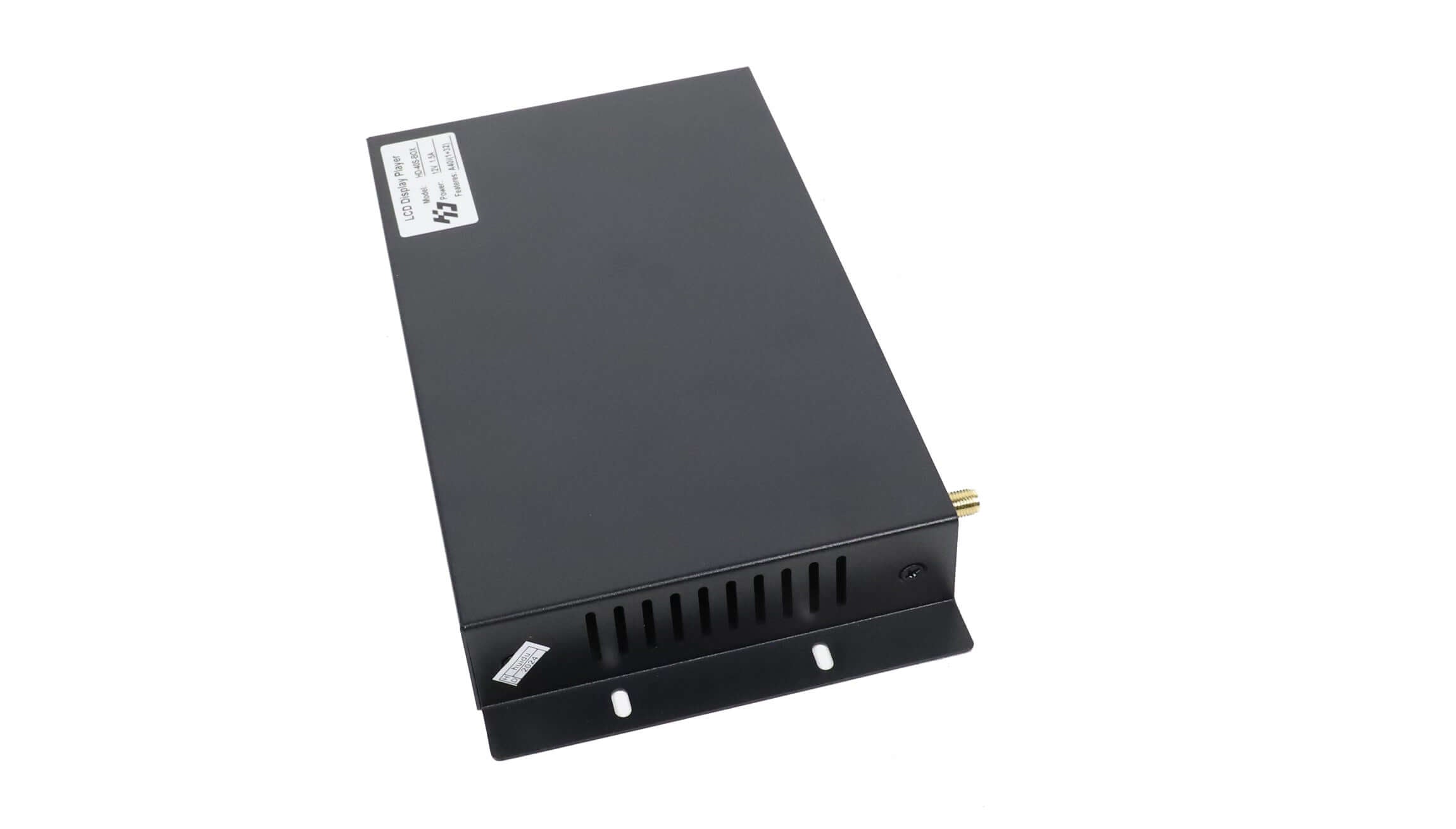

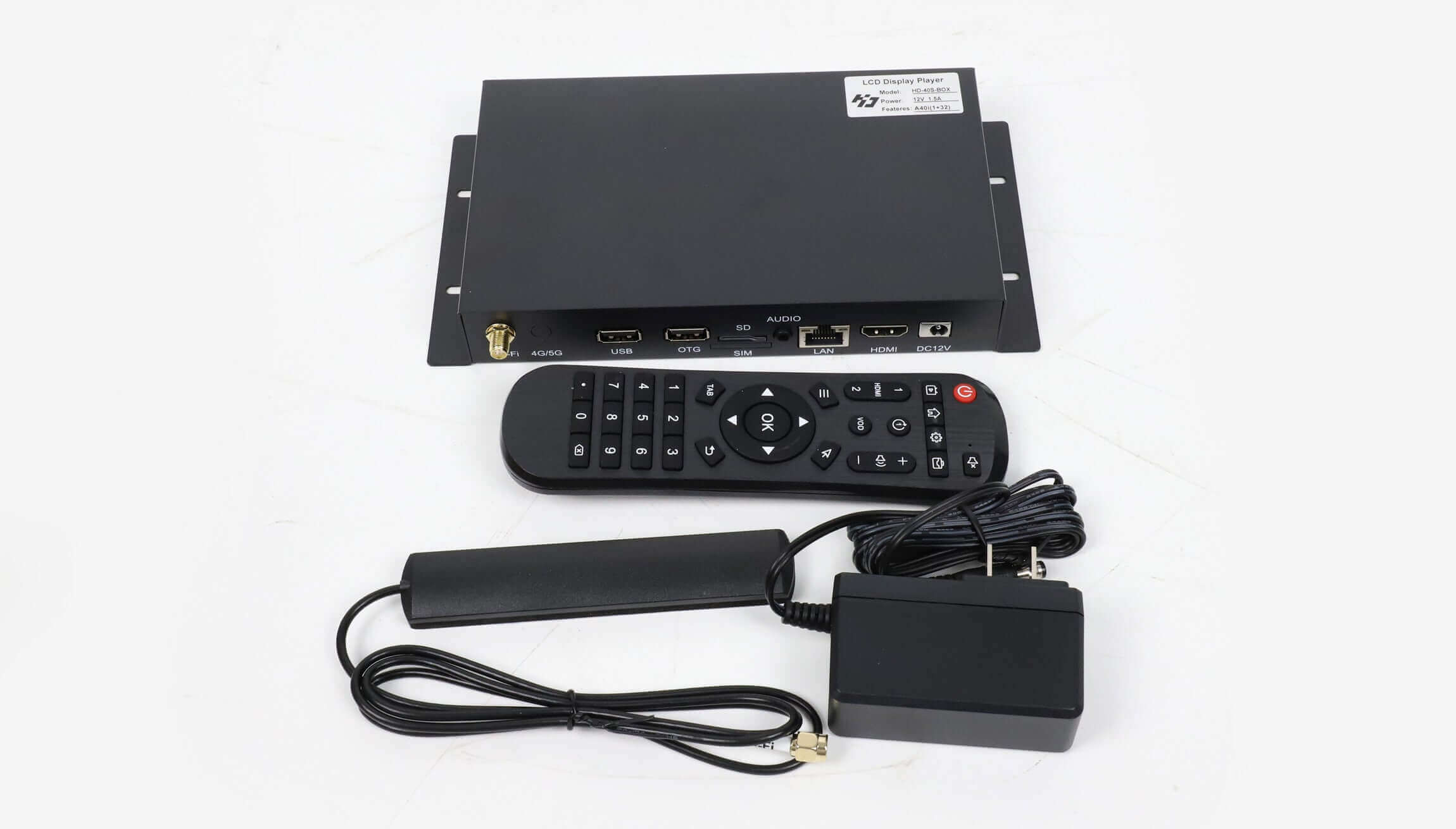

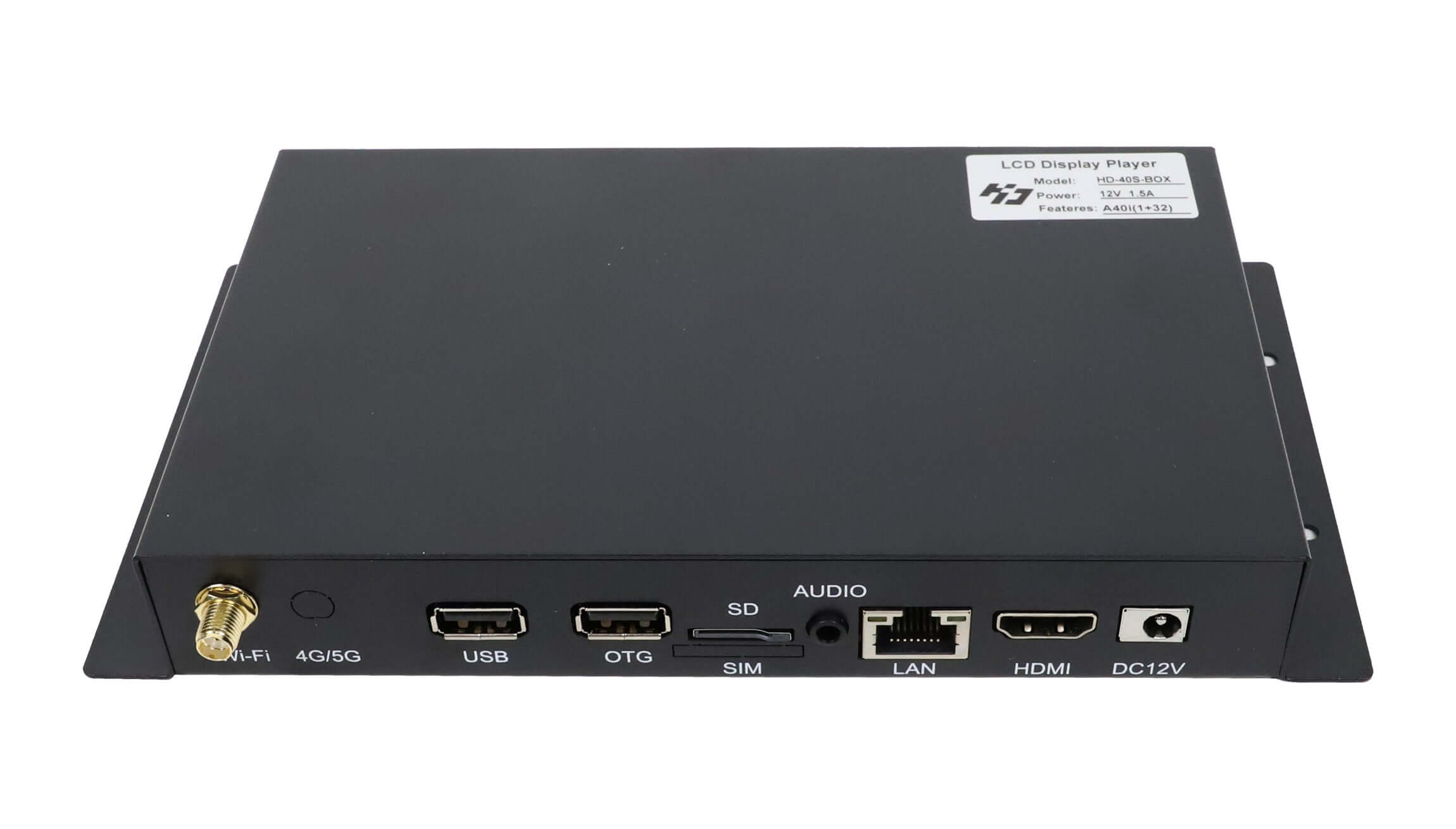

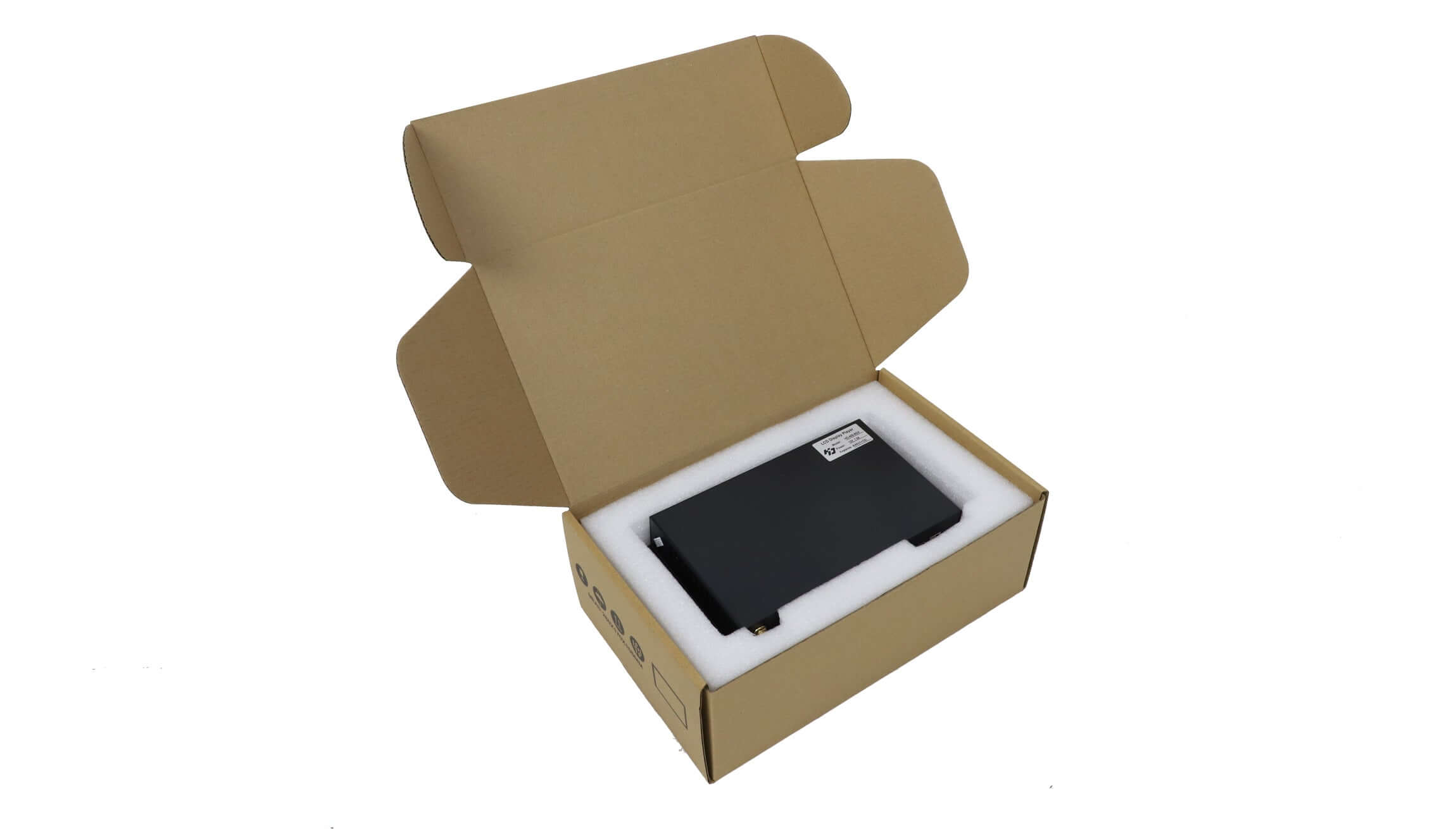

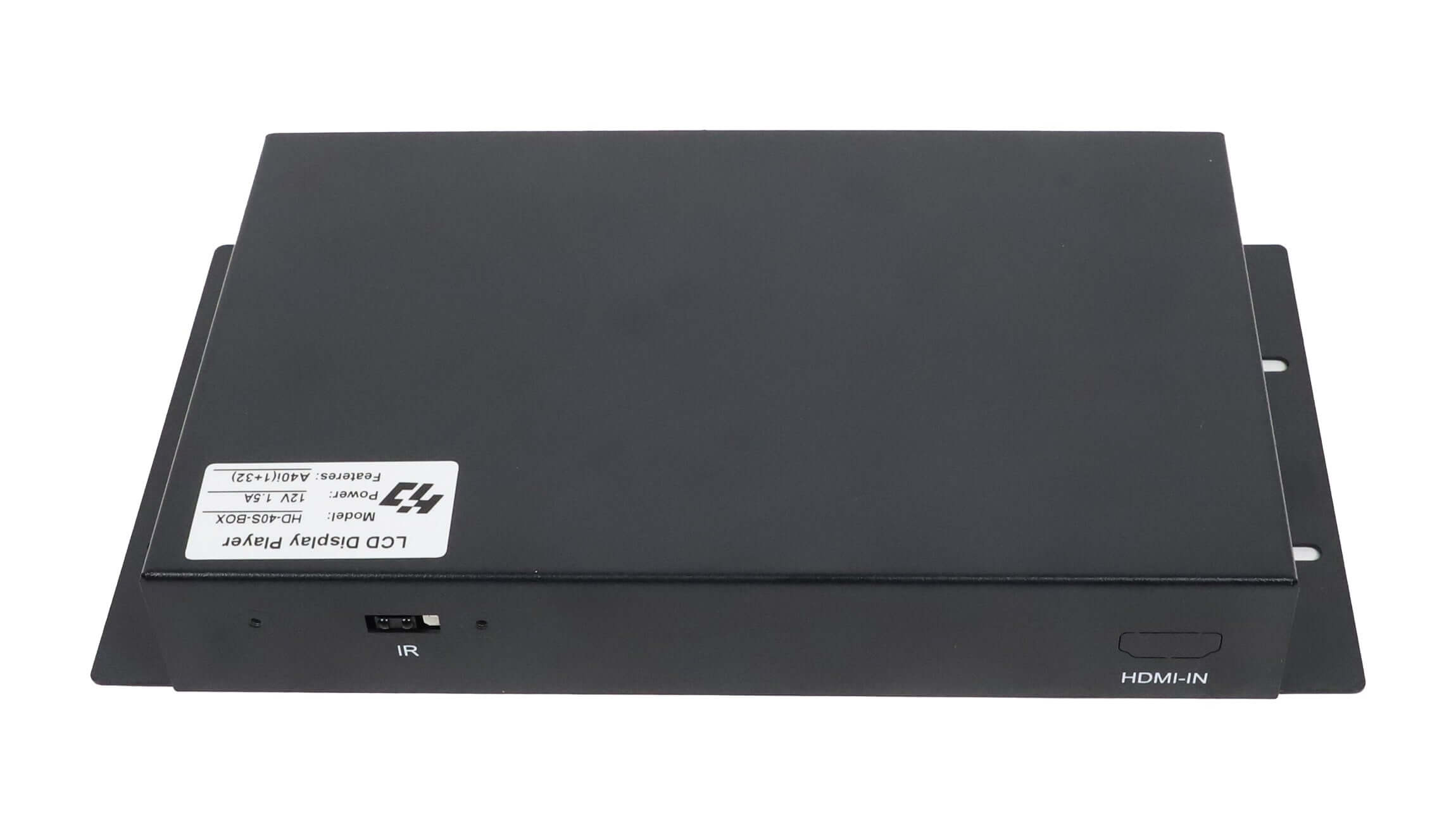

Retained product images
Original images are retained. Use the confirmed model label and interface specification to identify the supplied configuration.
Frequently asked questions
Is the HD-40S-BOX an RK3399 player?
No. The manufacturer’s HD-40S-BOX V1.3 document specifies Allwinner A40i. The previous RK3399 and 4K/HDMI-input description did not match this model and should not be used to select it.
What does the 1+32 configuration mean?
V1.3 specifies 1 GB RAM and 32 GB storage as the standard configuration. Confirm this configuration on the supplied unit, especially when replacing an older player.
Can I update content without a wired PC connection?
Yes. The manual documents Wi-Fi, USB-drive and TF-card updates, as well as LAN and Internet management. Confirm the compatible software and content workflow for the installed firmware.
Does the original PDF describe the same model?
The retained download is labeled HD-40B internally, despite the old link text referring to 40S-BOX. It is identified below as a legacy reference; do not use its processor, storage or display claims as proof of this product’s configuration.
How can I request the current price?
Send EagerLED the HD-40S-BOX model, required 1 GB + 32 GB configuration, quantity, LCD input/timing and delivery destination. Ask for confirmation of the supplied hardware and accessories with the quotation.
Original specification download — model mismatch
Original HD-40B specification PDF (legacy reference)
This retained file identifies HD-40B, not HD-40S-BOX V1.3. Contact EagerLED for the applicable HD-40S-BOX specification and confirmation of the supplied configuration.
| Weight | 2 kg |
|---|
