Linsn TS06 4K LED Sending Box – 6 Gigabit Outputs
$ 331.00
Linsn TS06 supports up to 3.9 million pixels with six Gigabit outputs, according to the detailed interface specification. It provides HDMI 2.0/DP 1.2 inputs and two-input splicing.
1000 in stock
Product overview
The Linsn TS06 is a 4K LED sending box with six Gigabit outputs and up to 3.9 million pixels of total loading. It supports HDMI 2.0 and DisplayPort 1.2 sources, plus horizontal or vertical splicing of two 4K input images.
Product specifications
| Parameter | Specification |
|---|---|
| Total loading | 3.9 million pixels |
| LED outputs | 6 Gigabit outputs; up to 650,000 pixels per output |
| Inputs | 2 × HDMI 2.0; 2 × DP 1.2 |
| Input timing | Up to 4K × 2K at 60 Hz, backward compatible |
| Splicing | Two 4K video inputs; left-right or up-down |
| Setup | Type-C or LAN cable |
| Backup / restore | USB flash drive and cloud |
| Power | AC 90–264 V, 50/60 Hz; 20 W consumption |
| Operating environment | −20°C to +70°C; 0–95% RH |
| Dimensions / weight | 484 × 290.5 × 89 mm; 4.80 kg |
TS06 output count and setup

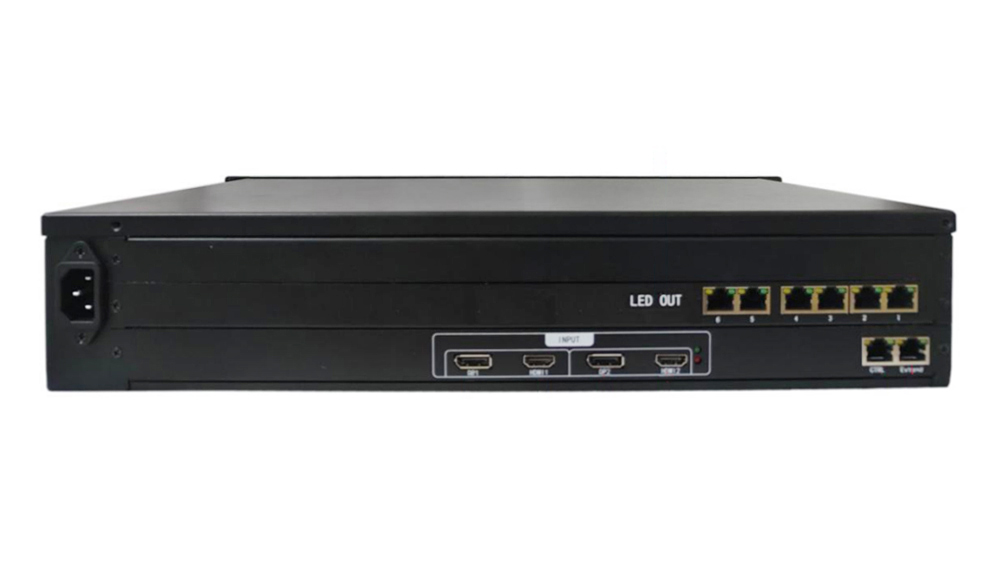

The linked V1.4 specification contains an output-count inconsistency: the overview says 60 outputs, while its feature list and rear-interface table both state six. This page follows those detailed interface sections. Confirm the rear panel and hardware version of the supplied controller.
Plan the cabinet connections within the 650,000-pixel limit per output and 3.9-million-pixel total. Type-C or LAN supports setup. Other listed functions include scheduling, output detection, license approval, image freeze, and USB flash-drive/cloud backup and restore. The front USB connection is listed for updates, and Extend is reserved.
Frequently asked questions
1. Does the TS06 have 6 or 60 output ports?
The specification overview says 60, but the feature list and rear-interface table specify six receiver outputs. The six-output figure is used here; check the supplied hardware before installation.
2. What is the maximum TS06 loading capacity?
The specified total is 3.9 million pixels, with up to 650,000 pixels on each of its six outputs.
3. Can TS06 accept 4K at 60 Hz?
HDMI 2.0 and DP 1.2 inputs are listed for up to 4K × 2K at 60 Hz, with backward compatibility. Input timing and LED screen loading are separate limits.
4. Does TS06 support configuration backup?
Yes. USB flash-drive and cloud backup/restore are listed. Setup can use Type-C or LAN; confirm the required software and account access for the supplied device.
Download specification
| Weight | 7 kg |
|---|
