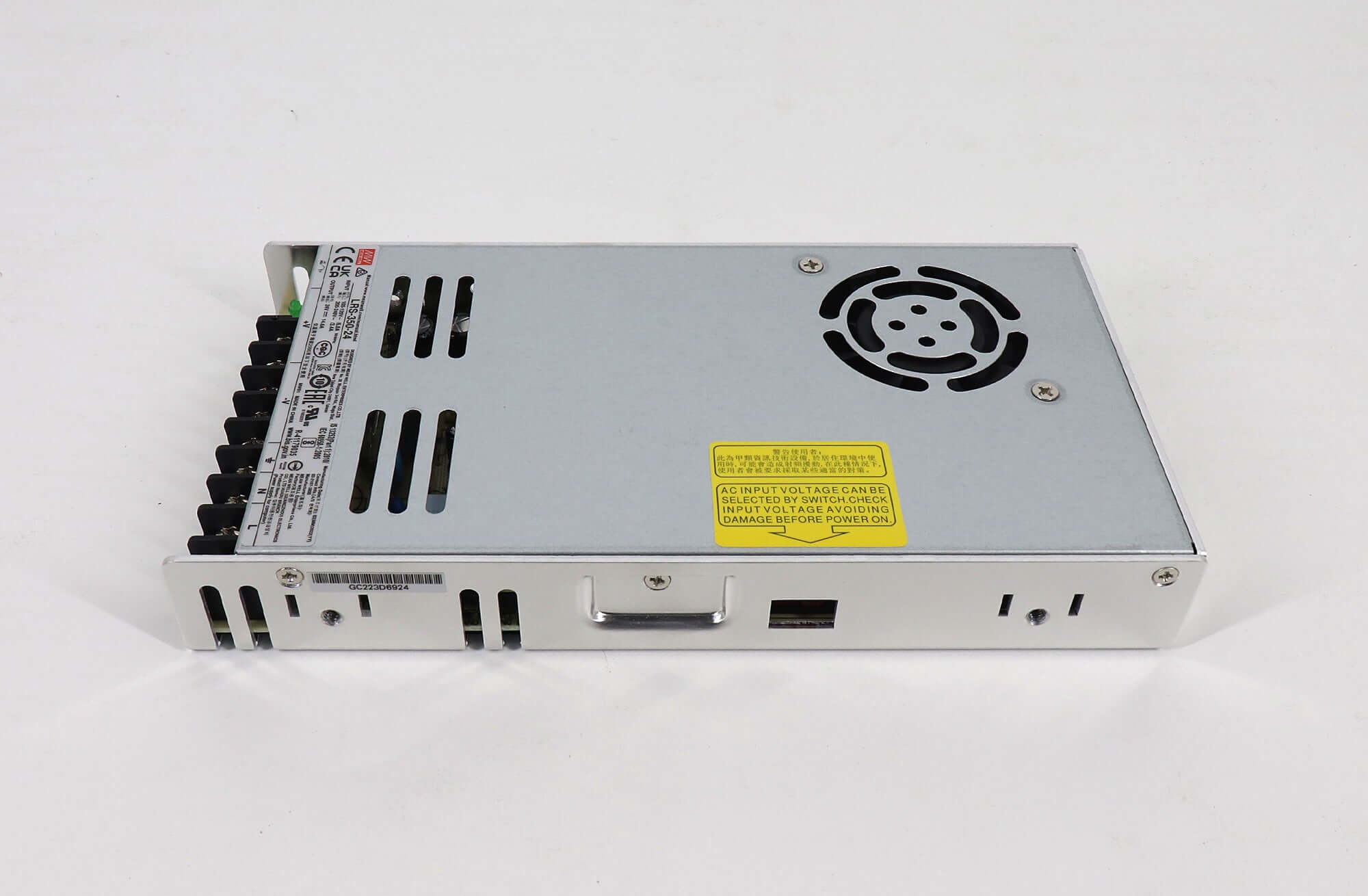

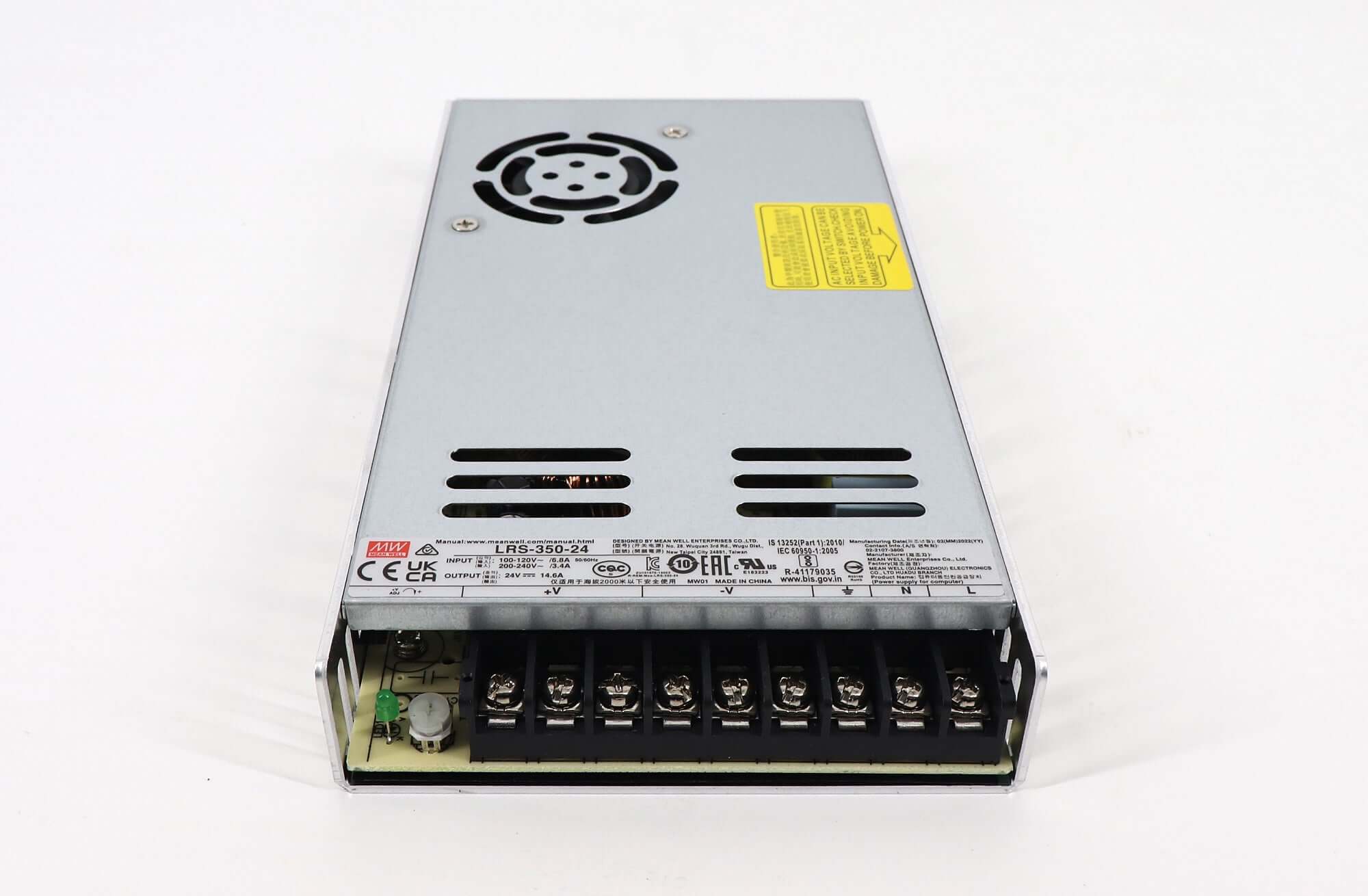

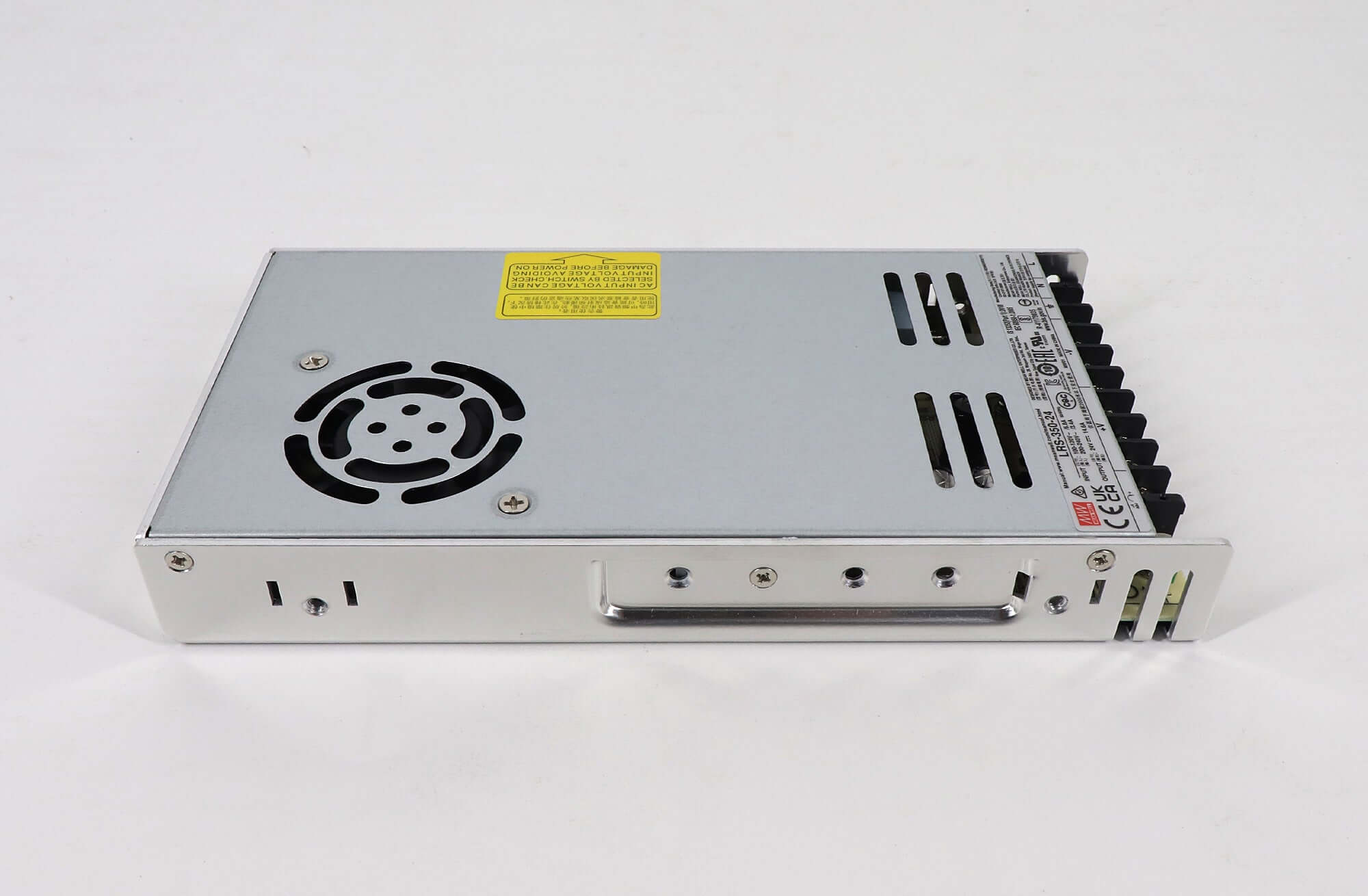

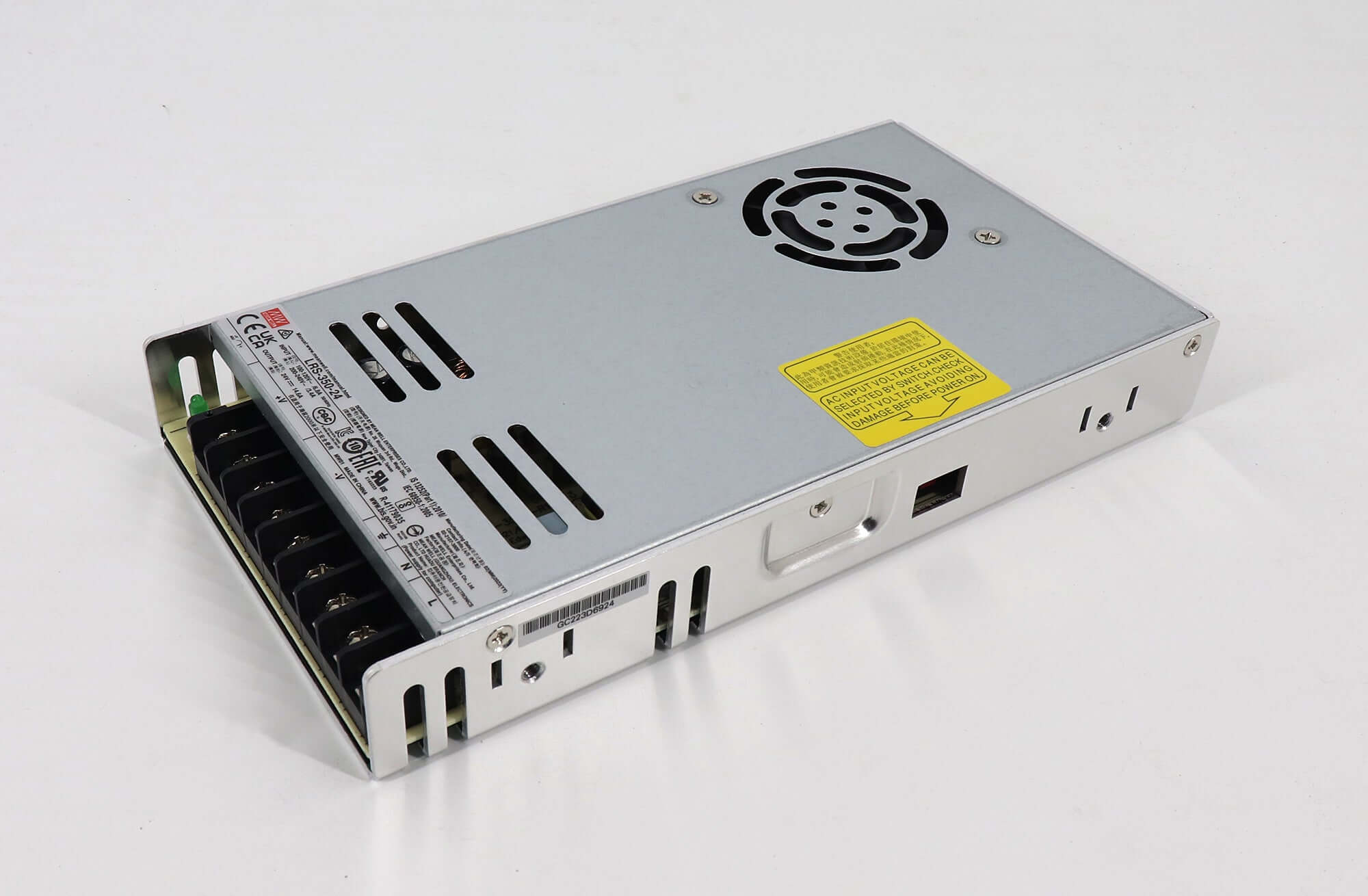

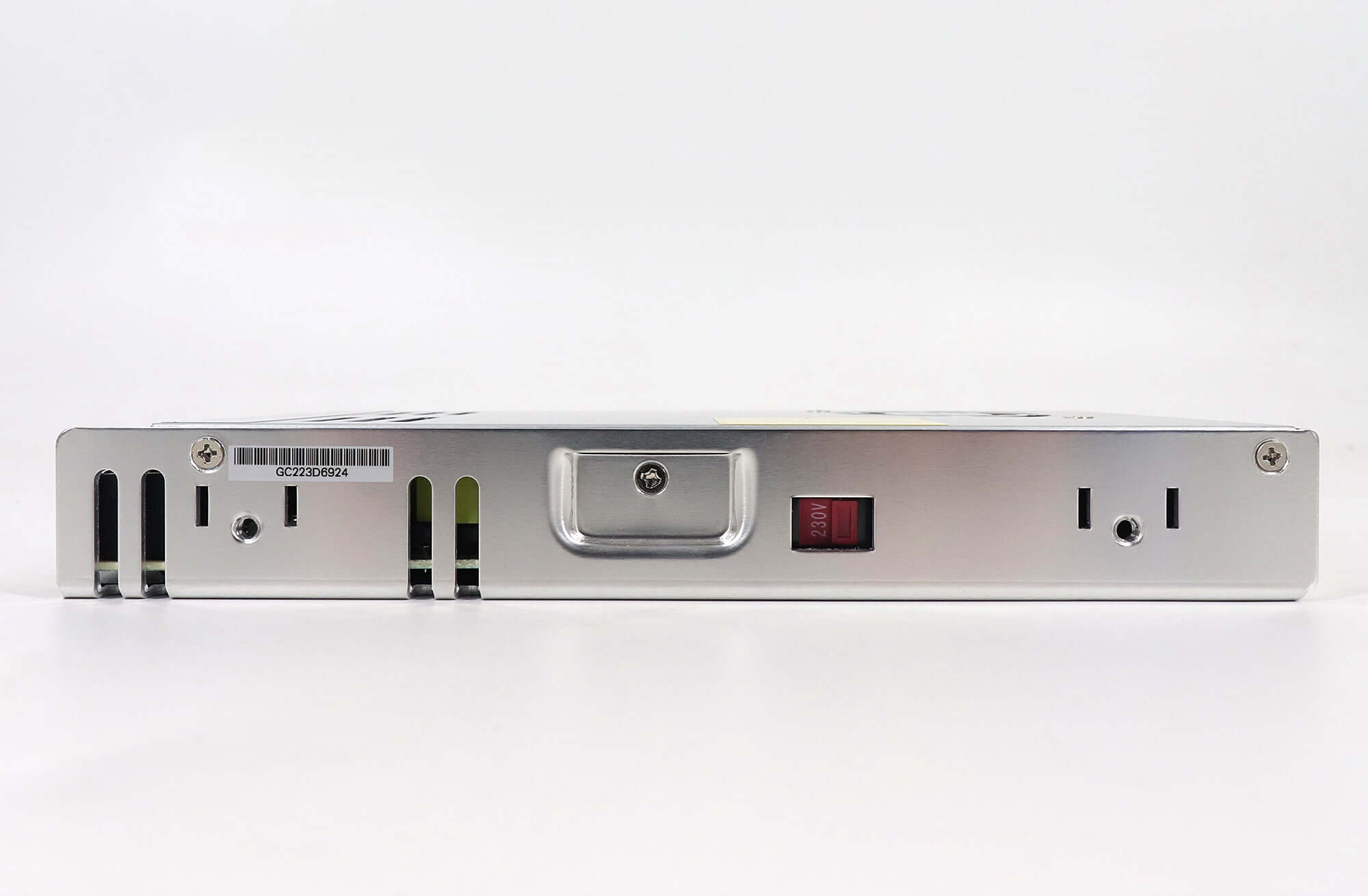

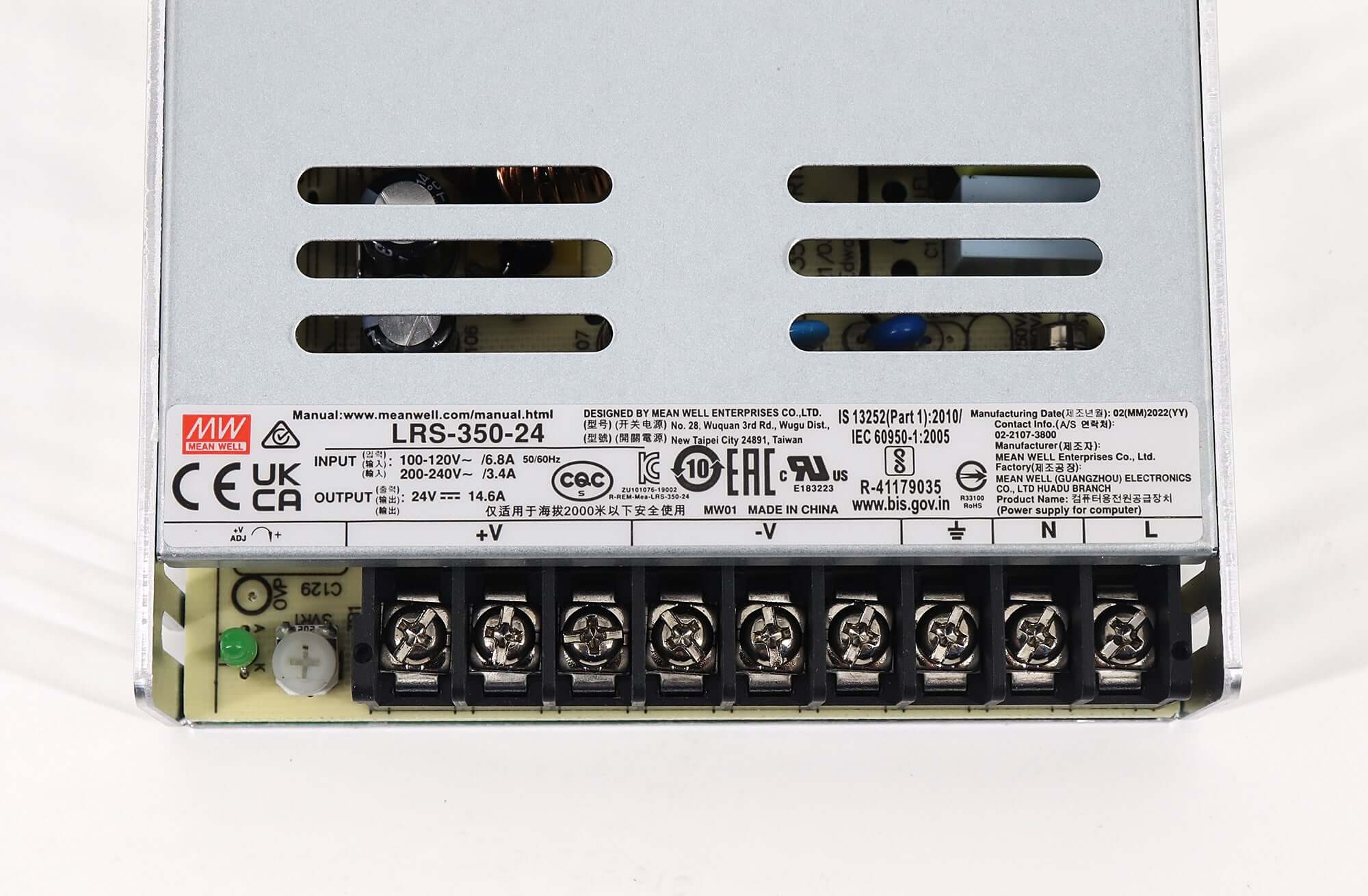

MEAN WELL LRS-350-24 24V 14.6A Switching Power Supply
$ 22.00
24V 14.6A switching supply rated at 350.4W, with fan cooling and a switch-selectable AC input. Dimensions: 215 × 115 × 30mm.
10000 in stock
MEAN WELL LRS-350-24 24V 14.6A Switching Power Supply
The LRS-350-24 provides a single 24V output for compatible industrial, control and display equipment. Its fan-cooled enclosure and switch-selectable AC input should be checked against the cabinet layout and local supply.
Product parameters
| Parameter | Specification |
|---|---|
| DC output | 24V |
| Rated current | 14.6A |
| Rated power | 350.4W |
| AC input | 90–132VAC / 180–264VAC, selected by switch |
| Voltage adjustment | 21.6–28.8V |
| Typical efficiency | 88% |
| Dimensions (L × W × H) | 215 × 115 × 30mm |
| Cooling | Built-in DC fan with ON/OFF control |
Follow the LRS-350 derating and installation requirements. The specification also contains harmonic-current application limitations for the final equipment.
Product images and documents
MEAN WELL LRS-350 specification PDF
Frequently asked questions
1. What current is available at 24V?
The rated current is 14.6A, with 350.4W rated output under the manufacturer’s stated conditions.
2. Can it replace an RSP-320-24?
Compare the complete specifications before replacement. Input selection, output capacity and electrical characteristics differ between the series.
3. Can I adjust its voltage?
The specified range is 21.6–28.8V. The connected load must remain within its own permitted voltage range.
4. Where can I find the wiring and mounting information?
Use the LRS-350 specification PDF below for terminal layout, mechanical drawings and operating conditions.
| Weight | 0.88 kg |
|---|
