Mooncell MVB20S 2-in-1 LED Video Processor – 20 Outputs
$ 1,370.00
2-in-1 LED video processor with 20 Gigabit Ethernet outputs and a listed maximum load of 10.4 million pixels. Supports up to five layers, eight scene templates, active 3D and brightness-sensor control.
888 in stock
Mooncell MVB20S LED video processor
The Mooncell MVB20S provides 20 Gigabit Ethernet outputs for an LED display load of up to 10.4 million pixels. It combines video processing with display control and supports custom output resolutions.
Composition and show control
Picture-in-picture can add images over a 4K input, with up to five layers and independent window transparency. Audio input/output and audio-follow-video switching are supported. Eight scene templates and a built-in clock support scheduled scene changes.
The processor supports an external brightness sensor for automatic adjustment. Other functions include active 3D with electronic shutter and continuous-frame mode, inspection, SD card backup/restore, screen freezing, one-key blackout and button locking.
MVB20S specifications
| Parameter | Specification |
|---|---|
| Inputs | 1 × HDMI 2.0; 1 × DP 1.2; 2 × DVI; 2 × HDMI 1.3; 1 × 3G-SDI |
| Display outputs | 20 × Gigabit Ethernet |
| Maximum load | 10.4 million pixels |
| Maximum horizontal width | 15360 pixels |
| Maximum vertical height | 15360 pixels |
| Layers | Up to 5 |
| Scene templates | 8; scheduled switching via built-in clock |
| EDID management | DVI, HDMI and DP input resolution management |
| 3D functions | Active 3D; electronic shutter 3D; continuous-frame mode |
| Backup and restore | SD card |
| Brightness control | External brightness sensor support |
Maximum width and height are separate limits. The configured screen must also remain within the total 10.4 million-pixel load.

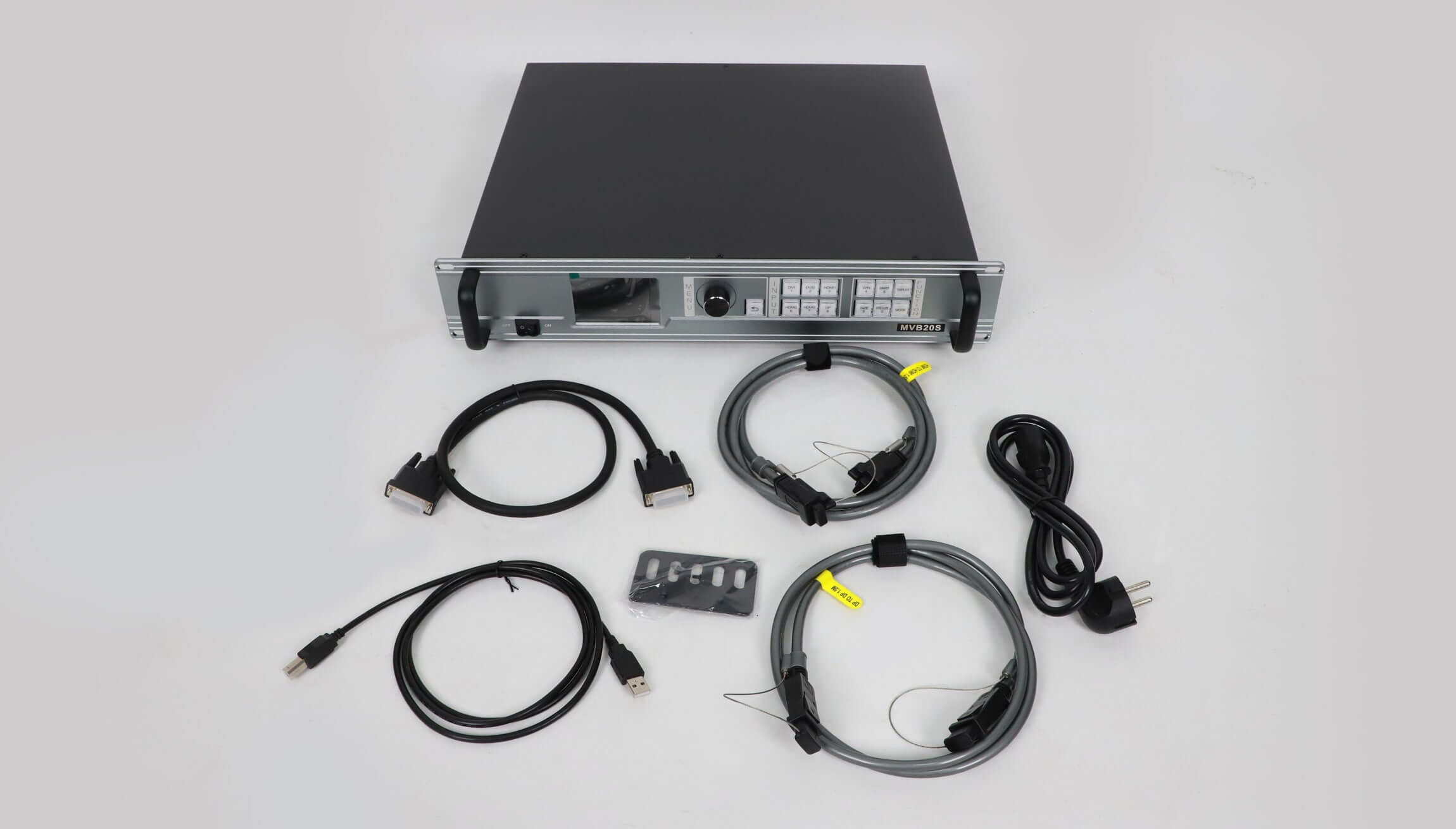

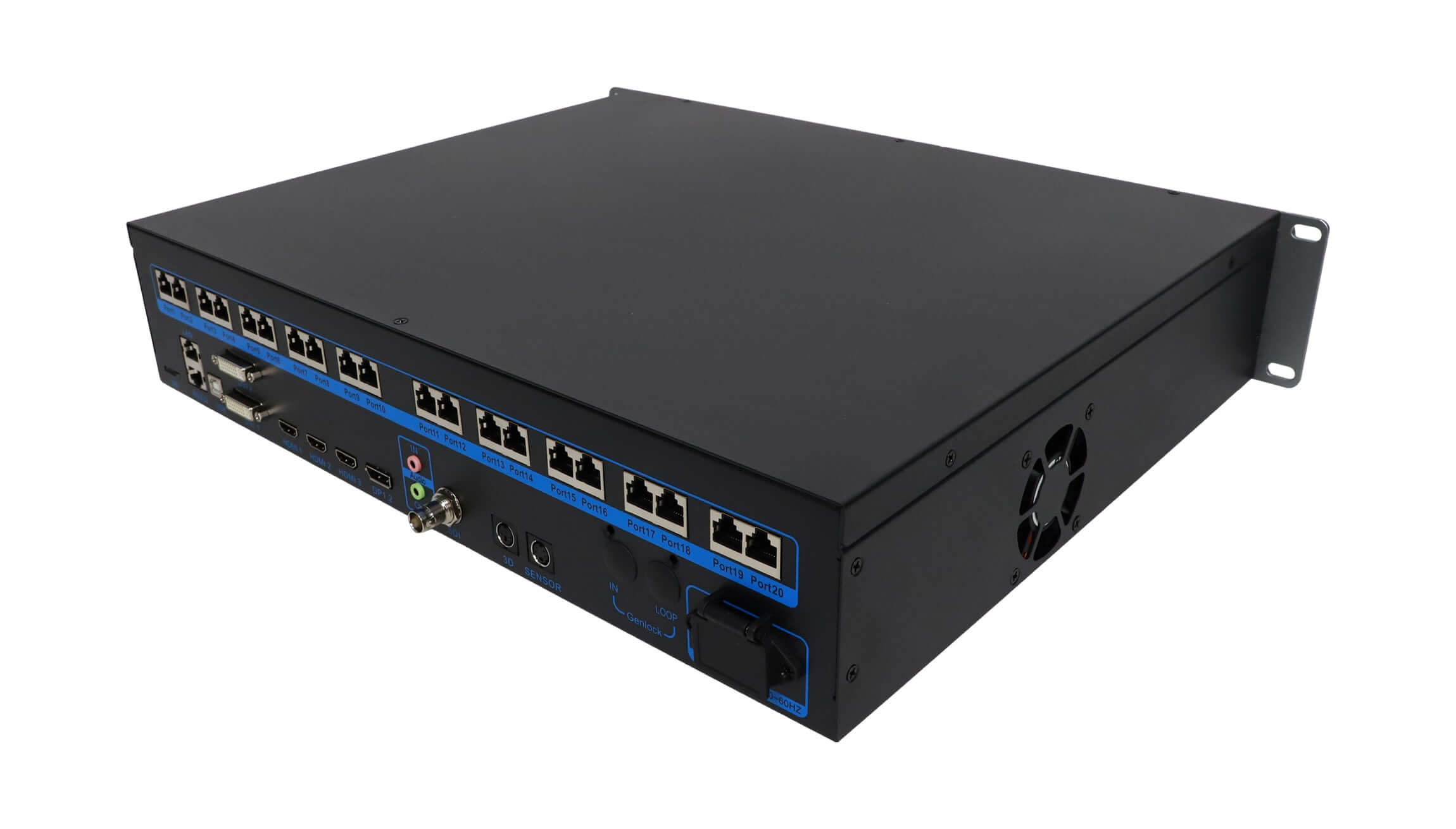

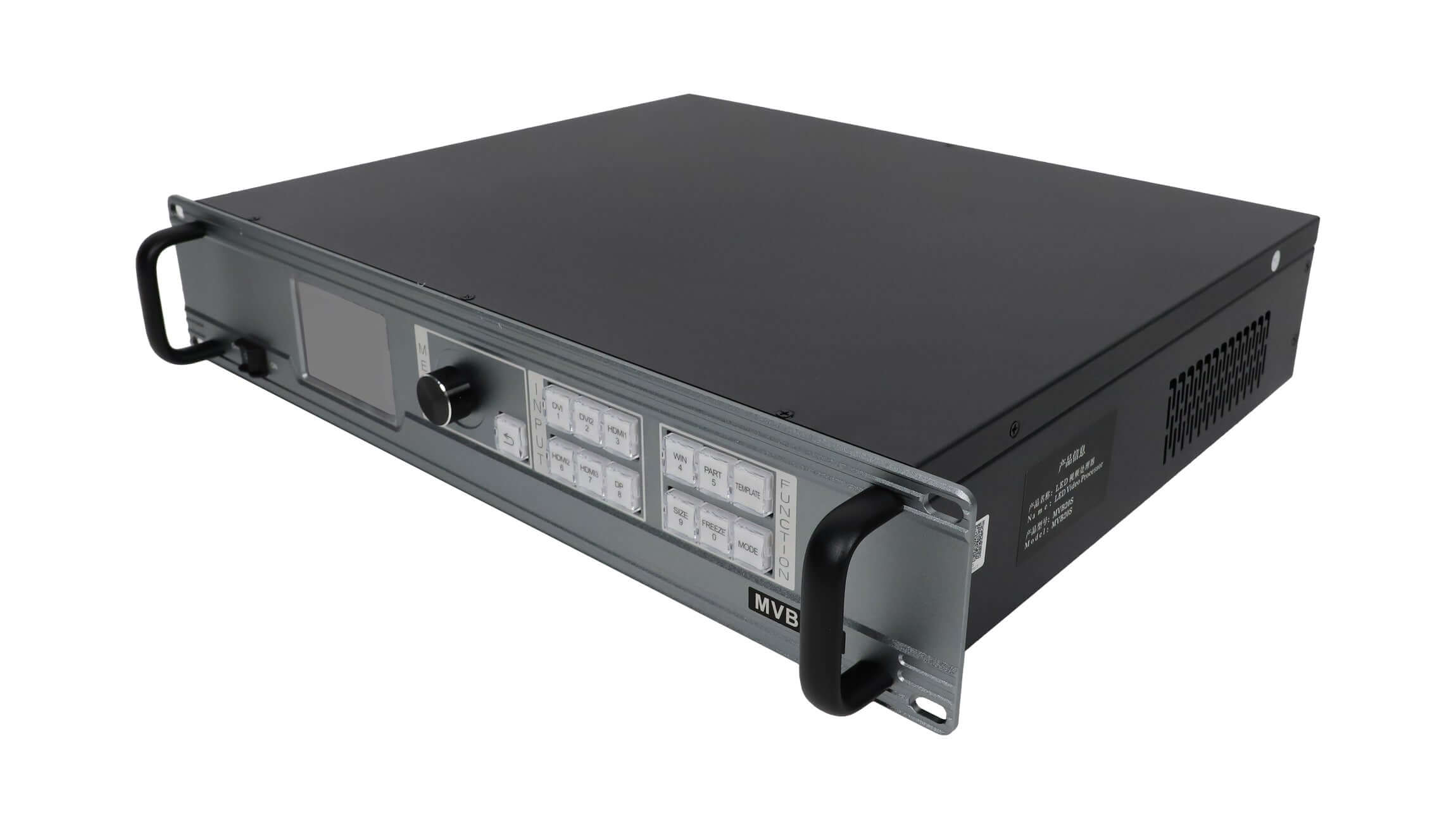

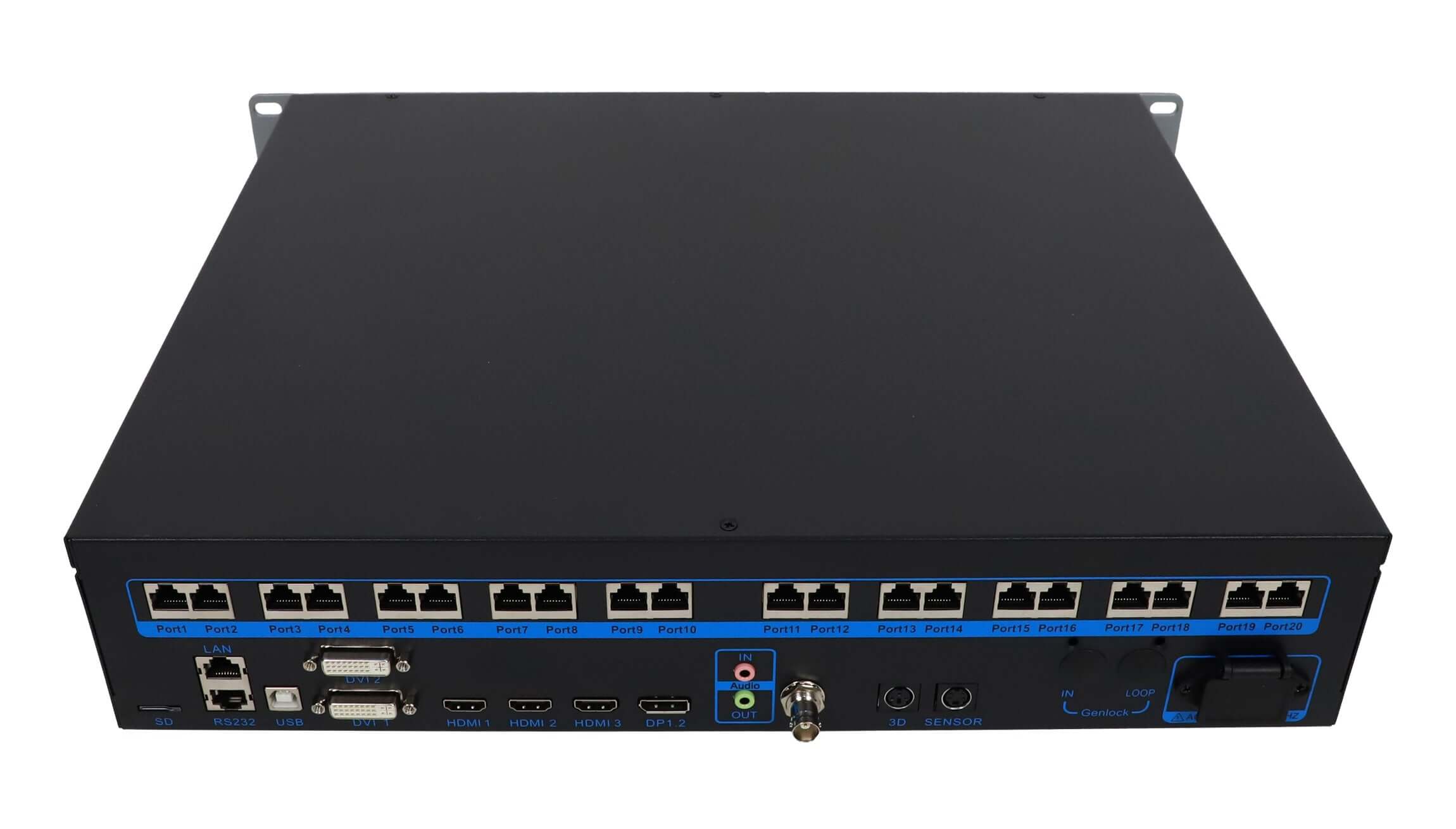

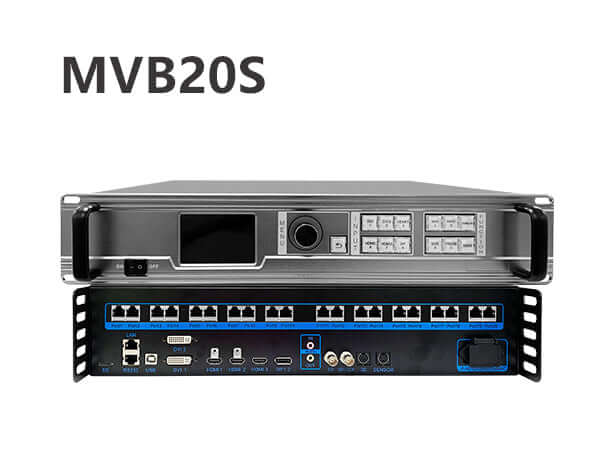

Product images
Specification downloads
Mooncell-MVB20S-HD-Full-Color-2 In 1-video-processor-manual-pdf
Frequently asked questions
1. How many Ethernet outputs does MVB20S provide?
It provides 20 Gigabit Ethernet outputs, with a listed maximum total load of 10.4 million pixels.
2. Does MVB20S support multiple layers?
Yes. Up to five layers, picture-in-picture over a 4K input and independent window transparency are listed.
3. Can MVB20S display 15360 × 15360 pixels simultaneously?
The width and height are separate maximum limits. The total configured load must remain within 10.4 million pixels.
4. Can scenes and brightness be controlled automatically?
A built-in clock supports timed scene-template changes. An external brightness sensor can be used for automatic brightness adjustment.
5. Does it support active 3D?
Yes. The original feature list includes active 3D, electronic shutter 3D and continuous-frame mode.
| Weight | 13 kg |
|---|
