Linsn RV907H LED Receiving Card | 26-Pin, Cabinet Monitoring
$ 19.20
Linsn RV907H receiving card with 26-pin module interfaces, up to 1024 × 256 pixels, cabinet monitoring and dual-receiver backup.
9980 in stock
Product overview

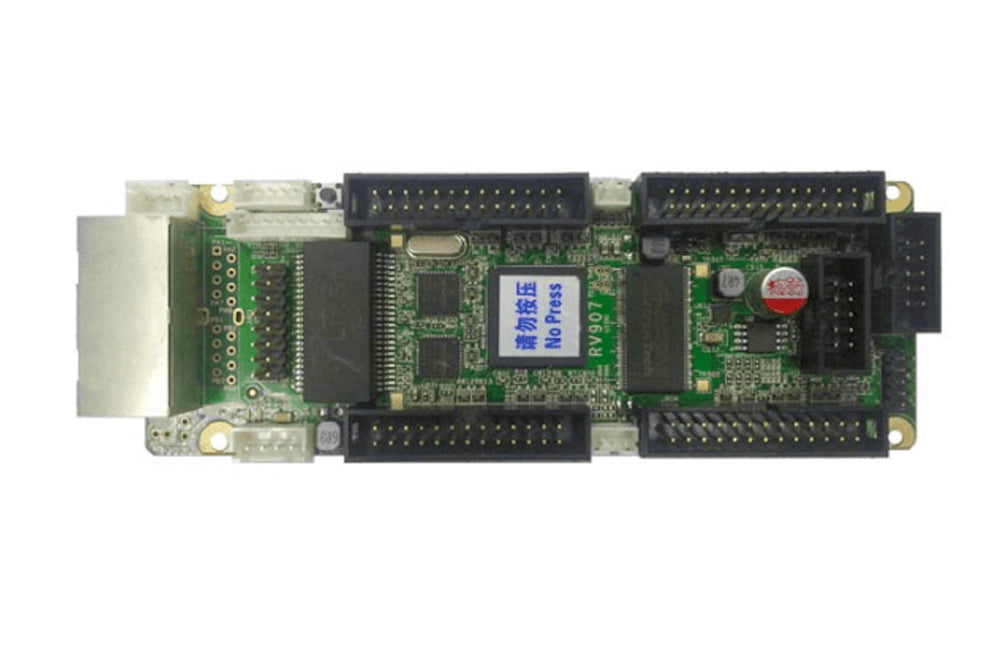

The Linsn RV907H is a compact LED receiving card with 26-pin module connections, cabinet monitoring and dual-receiver backup support. The attached V3.0 specification for hardware V3 lists up to 1024 × 256 pixels. Its output mode must be configured to suit the connected module wiring.
Product specifications
| Parameter | Specification |
|---|---|
| Model / manual | RV907H; V3.0 document, hardware V3, January 2020 |
| Maximum loading | 1024 × 256 pixels; recommended values depend on screen design |
| Module interface | 26-pin; four output interfaces described in the original listing |
| Parallel data | 16 groups RGBR′; 20-group and 24-group modes described in the manual |
| Serial data | 32 groups in feature list; pinout section also describes 16/64-group modes—verify revision and mode |
| Calibration | Pixel brightness calibration; single-card color-space conversion |
| Diagnostics / backup | Network-cable BER test; dual-receiver backup |
| Monitoring | Temperature, door status, 2 fan-speed lines and 3 voltage lines |
| Optional accessories | Humidity, smoke and LCD monitoring modules sold separately |
| Supply / rated power | DC 4.5–5.5 V; 4 W |
| Operating conditions | −20°C to +70°C; 0–95% humidity |
| Dimensions / weight | 136.5 × 49.7 mm; 67 g |
Pinouts, sizing and monitoring
Use the pinout for the selected normal, 20-group or 24-group data mode. The manual describes different signal assignments across these modes, so matching the connector shape alone is insufficient.
The original page’s “479 mm × 1365 mm” size does not match the attached specification. The table uses the explicitly documented 136.5 × 49.7 mm dimensions; check the mounting drawing and the actual board when replacing a card.
Serial-data counts also differ between the manual’s feature list and pinout section. Confirm the intended serial mode with the matching hardware and firmware rather than assuming the largest count applies. Monitoring features require correct wiring, with humidity, smoke and LCD modules supplied separately.
Frequently asked questions
1. What are the RV907H dimensions?
The attached hardware V3 specification lists 136.5 × 49.7 mm and 67 g. The much larger dimensions in the previous page text conflict with this manual.
2. How many pixels can RV907H control?
The manual lists a maximum of 1024 × 256 pixels and notes that recommended loading depends on the LED screen design.
3. Are all RV907H 26-pin modes wired the same way?
No. The manual provides separate normal, 20-group and 24-group data pinouts. Select the matching configuration and pin assignment for the module.
4. Does RV907H include all cabinet-monitoring sensors?
No. The specification identifies humidity, smoke and LCD monitoring modules as separately sold items. Fan, door, voltage and temperature functions also need the correct cabinet connections.
Download specification
| Weight | 0.3 kg |
|---|
