Huidu HD-C16C Asynchronous LED Controller – Wi-Fi & HUB75E
$ 67.00
Huidu HD-C16C asynchronous LED controller with 10 HUB75E interfaces, 4 GB storage, Wi-Fi, Ethernet and USB updates. Supports HDPlayer and LedArt; 4G is optional. Confirm pixel loading and temperature rating for the supplied revision.
513 in stock
Huidu HD-C16C asynchronous LED controller
The Huidu HD-C16C combines stored multimedia playback, sending and receiving functions for an LED display. Its 10 onboard HUB75E interfaces connect to modules, while the Gigabit output supports a compatible HD-R receiving-card arrangement. Wi-Fi and LedArt provide mobile program management; Ethernet and USB offer additional update methods.
Specifications and connection reference
The table follows the manufacturer’s HD-C16C V0.1 document dated April 8, 2021. Capacity and temperature discrepancies are identified below so the installation can be confirmed against the supplied hardware.
| Module connection | 10 onboard HUB75E interfaces |
|---|---|
| Control range — source conflict | V0.1 overview: 524,288 pixels; feature list: 120,000 pixels (384 × 320); function table: 384 × 320. Confirm the board revision and actual supported load before purchase. |
| Dimension limits | Maximum width 8192 pixels; maximum height 512 pixels. These independent limits do not define an 8192 × 512 screen. |
| Storage | 4 GB flash; USB storage expansion |
| Playback | 1080P HD video hardware decoding; 60 Hz frame output; images, GIF, text, Office content and clocks |
| Module scan | Static to 1/64 scan |
| Communication | Ethernet, Wi-Fi and USB; 4G module optional |
| Network ports | 100 Mbps input for PC/router; 1 Gbps output to receiving cards |
| Audio / relay | 3.5 mm two-channel stereo output; one relay-control connection |
| Software | HDPlayer for PC; LedArt mobile app; HD Cloud Platform |
| Supply / power | 5 V DC; rated voltage table 4.2–5.5 V; 8 W |
| Working temperature — source conflict | Function list: −20°C to +80°C; basic parameters: −40°C to +80°C. Confirm the applicable rating. |
| Storage temperature / humidity | −40°C to +105°C storage; working humidity 0–95% |
| Net weight | 0.12 kg |
Choosing and setting up a C16C
Check module driver IC, scan mode, screen width and height, and the direct or receiving-card wiring plan. Video decoding resolution is separate from LED output loading. Use the PC input port for configuration or router access and the Gigabit output for receiving cards; match the cable connections to the interface diagram.
For remote installations, specify whether Wi-Fi/Ethernet access is available or an optional 4G module is required. Sensor and GPS connectors require compatible external devices. Confirm the relay wiring and load requirements before integrating power control.

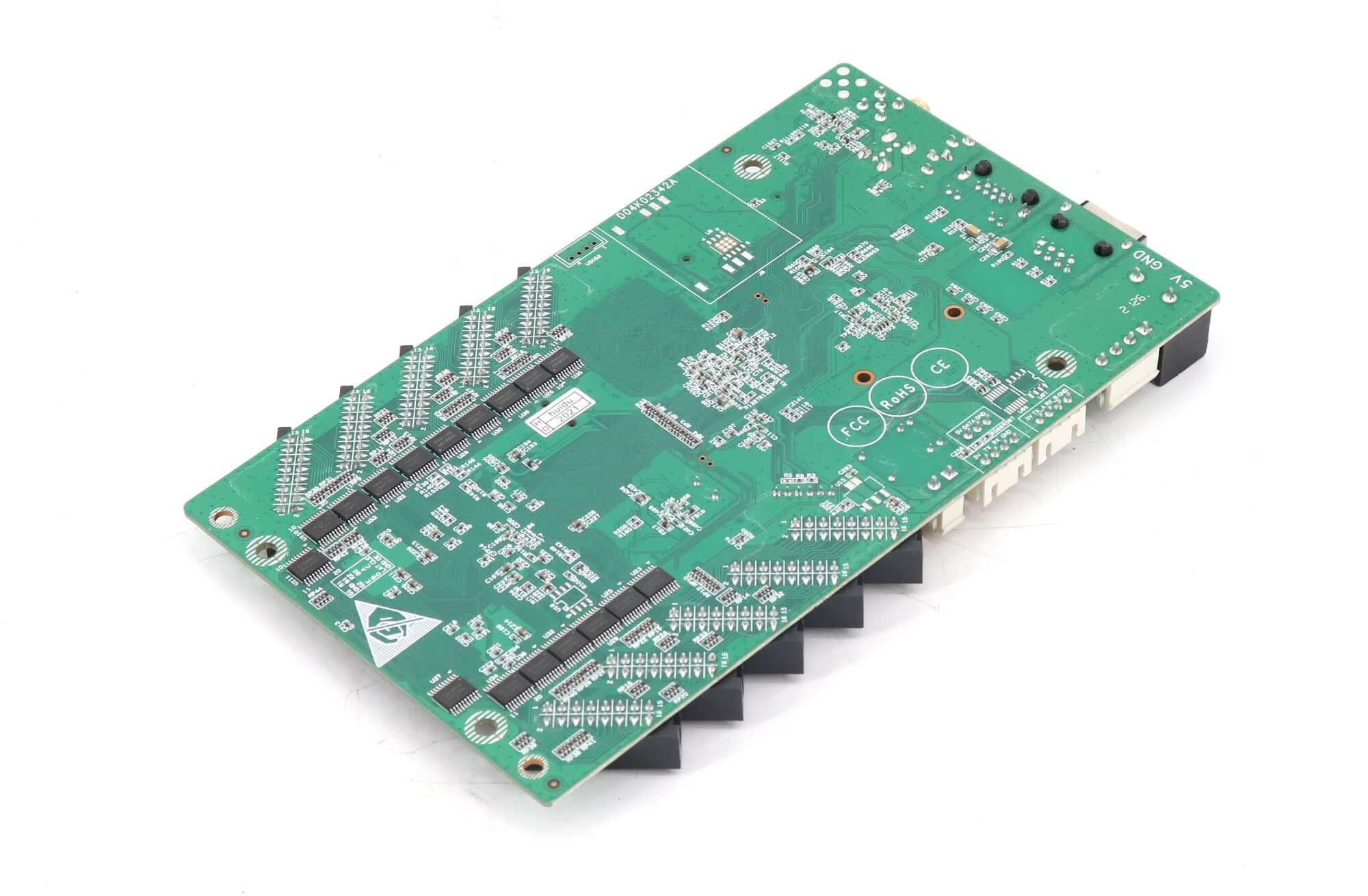

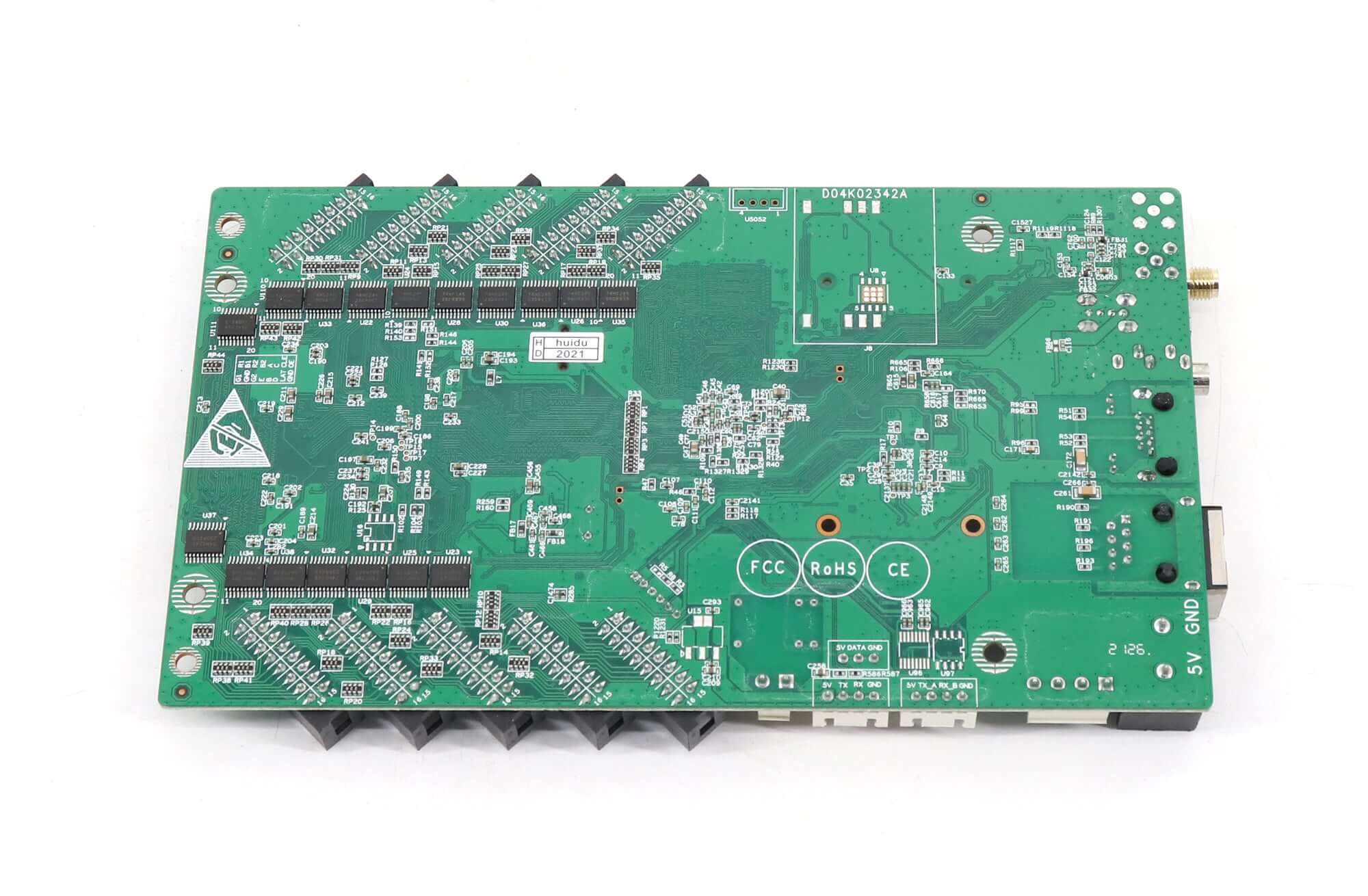

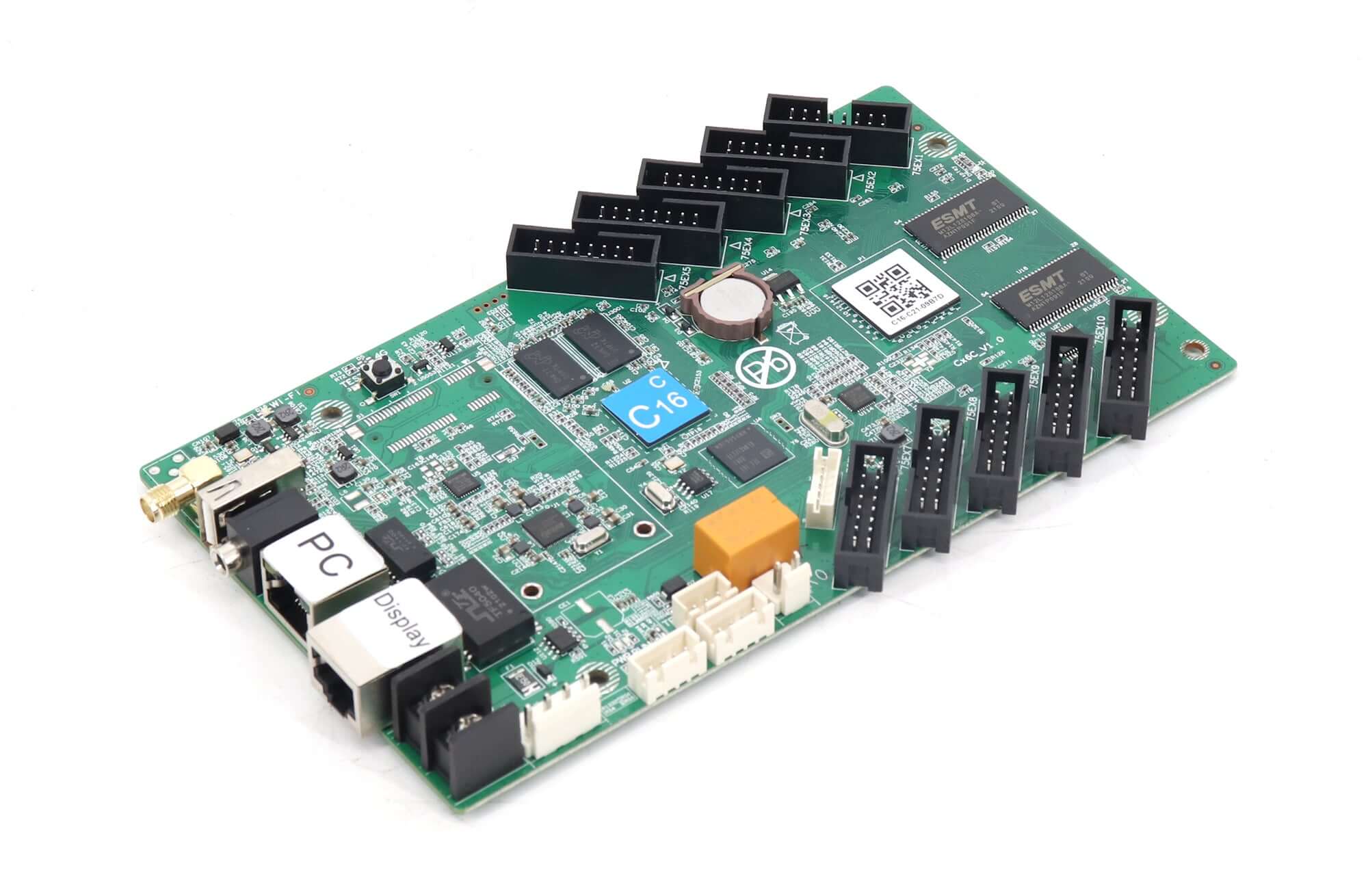

Product images
Frequently asked questions
What software is used with the HD-C16C?
HDPlayer sets screen parameters and edits and sends programs on a PC. LedArt supports mobile control; the documented cloud platform supports Internet management.
Does the HD-C16C need a computer connected during playback?
It is an asynchronous controller with onboard storage. Publish programs through Ethernet, Wi-Fi or USB for stored playback; confirm the required content and screen configuration during setup.
How many HUB75E ports does the C16C have?
The C16C specification lists 10 onboard HUB75E ports. The two 50-pin HUB connections described for C16 should not be used as the C16C wiring reference.
Is 4G included as standard?
No. The 4G networking module is an optional configuration. Wi-Fi, Ethernet and USB are documented communication methods.
What is the maximum pixel load?
The V0.1 document contains conflicting capacity figures: 524,288 in the overview and 120,000 (384 × 320) in the features. Provide the exact screen dimensions and board revision for confirmation; the listed maximum width and height cannot be multiplied to claim a larger capacity.
Specification PDF
Huidu HD-C16C Full Color Asynchronous LED Screen Control Card Specification
The original download address above returned an unavailable-file response during review. An available copy is provided here: HD-C16C V0.1 specification PDF. Confirm the supplied revision and the unresolved capacity and temperature ratings with EagerLED.
| Weight | 0.3 kg |
|---|
