Huidu HD-R5S Receiving Card for Transparent LED Screens
$ 10.80
The Huidu HD-R5S is a compact LED receiving card with two 120-pin connectors for transparent and fine-pitch displays. The specification recommends a 256 × 512 load and documents 32-group parallel and 64-group serial data connections.
10000 in stock

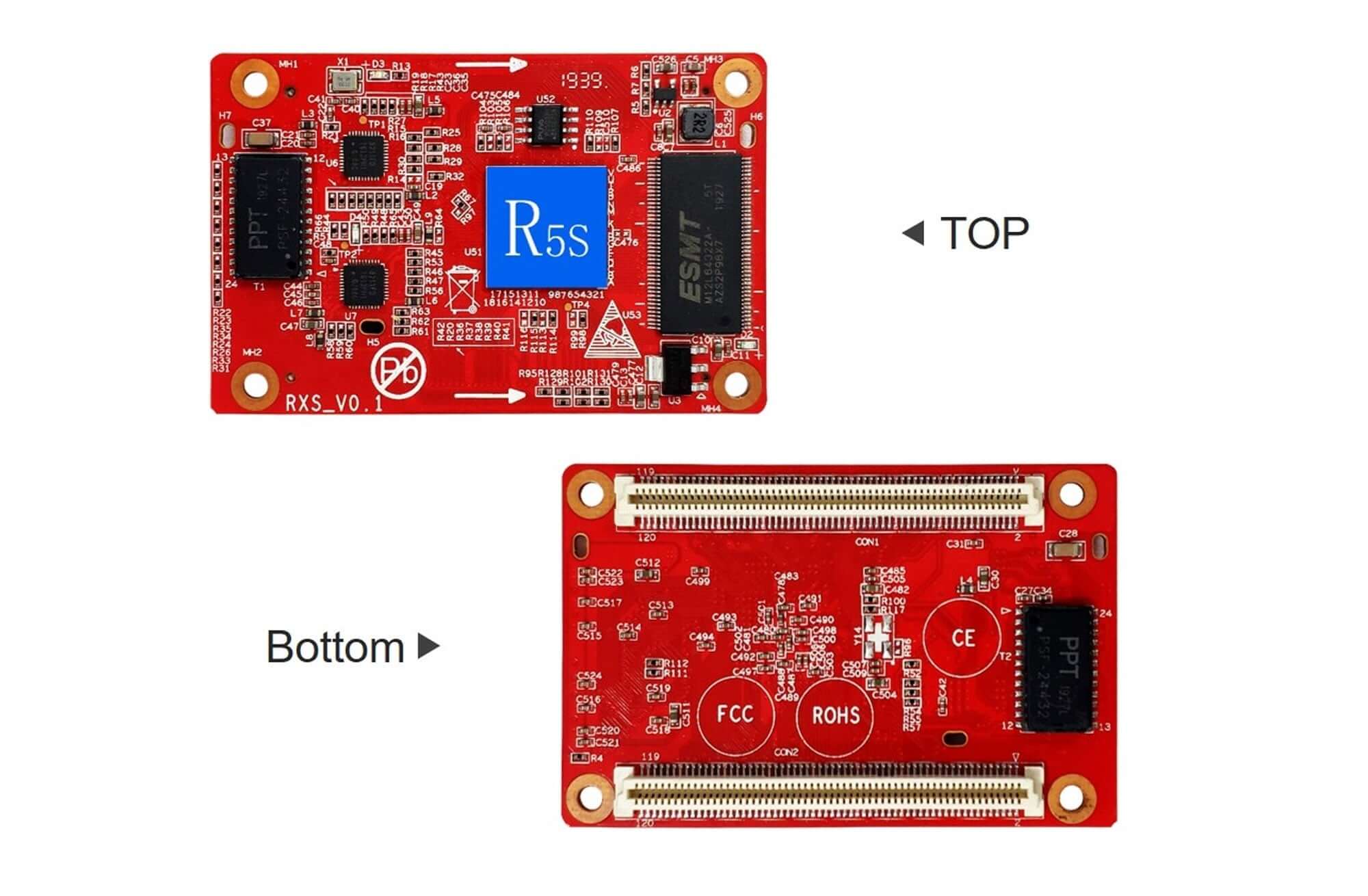

Huidu HD-R5S receiving card for transparent LED screens
The HD-R5S is a small receiving card for transparent and fine-pitch LED displays. Two 120-pin connectors carry data through a compatible transfer board, with pin definitions provided for parallel and serial data arrangements.
HD-R5S specifications
The table follows the linked V0.1 specification. Voltage and temperature discrepancies are shown rather than combined into a new rating.
| Recommended control range | 256 × 512 pixels |
|---|---|
| Display application | Transparent and fine-pitch LED screens |
| Data connectors | 2 × 120-pin; connection through a matching transfer board |
| Data modes documented | 32 groups of parallel data; 64 groups of serial data |
| Driver IC support | Normal ICs and mainstream PWM ICs for transparent-screen modules |
| Scan mode | Static to 1/64; extraction and empty-point settings supported |
| Communication | Gigabit Ethernet |
| Cable distance | Within 100 m using the cable categories described in the PDF |
| Grayscale | 256–65,536, adjustable |
| Power supply | Recommended 5 V; parameter table 4–6 V, technical table 4.2–5.5 V |
| Operating temperature | Parameter table −40°C to 85°C; technical table −40°C to 80°C |
| Storage temperature | −40°C to 105°C |
| Operating humidity | 0–95% |
Planning the screen connection
Match the transfer-board pinout, driver IC and scan mode before connecting modules. Receiving cards can be cascaded and arranged in any order, and smart settings allow the screen routing to match the display module wiring. The running indicator flashes during normal card operation.
HD-R5S frequently asked questions
What is the HD-R5S used for?
The HD-R5S is a compact receiving card for transparent and fine-pitch LED screens. It uses two 120-pin connectors and a matching transfer board rather than onboard HUB75 output sockets.
How many pixels can one HD-R5S control?
The V0.1 specification recommends 256 × 512 pixels. The existing product guidance also calls for a reduced loading width for indoor modules; confirm the module IC, scan mode and layout before setting the final load.
What sending devices are listed in the R5S specification?
The PDF lists A4/A5/A6/A601/A602/A603 players; A3/A30/A30+/C10/C10C/C30/C15/C15C/C35/C35C asynchronous controllers; T901/T901B/T901S synchronous cards; and VP210/VP410 processors. Confirm compatibility for other models.
Which data arrangements does R5S support?
The PDF provides pin definitions for 32 groups of parallel data and 64 groups of serial data. The transfer board and module wiring must match the chosen arrangement.
What supply voltage and operating temperature apply?
A standard 5 V supply is recommended. The PDF gives 4–6 V and −40°C to 85°C in its parameter table, but 4.2–5.5 V and −40°C to 80°C in its technical table. Confirm the supplied revision before relying on the wider limits.
Specification download
| Weight | 0.2 kg |
|---|
