Linsn RV201 LED Receiving Card | 50-Pin, 1024 × 256 Pixels
$ 14.00
Linsn RV201 receiving card with 50-pin interfaces, selectable RGB and serial data modes, up to 1024 × 256 pixels and brightness calibration.
9993 in stock
Product overview

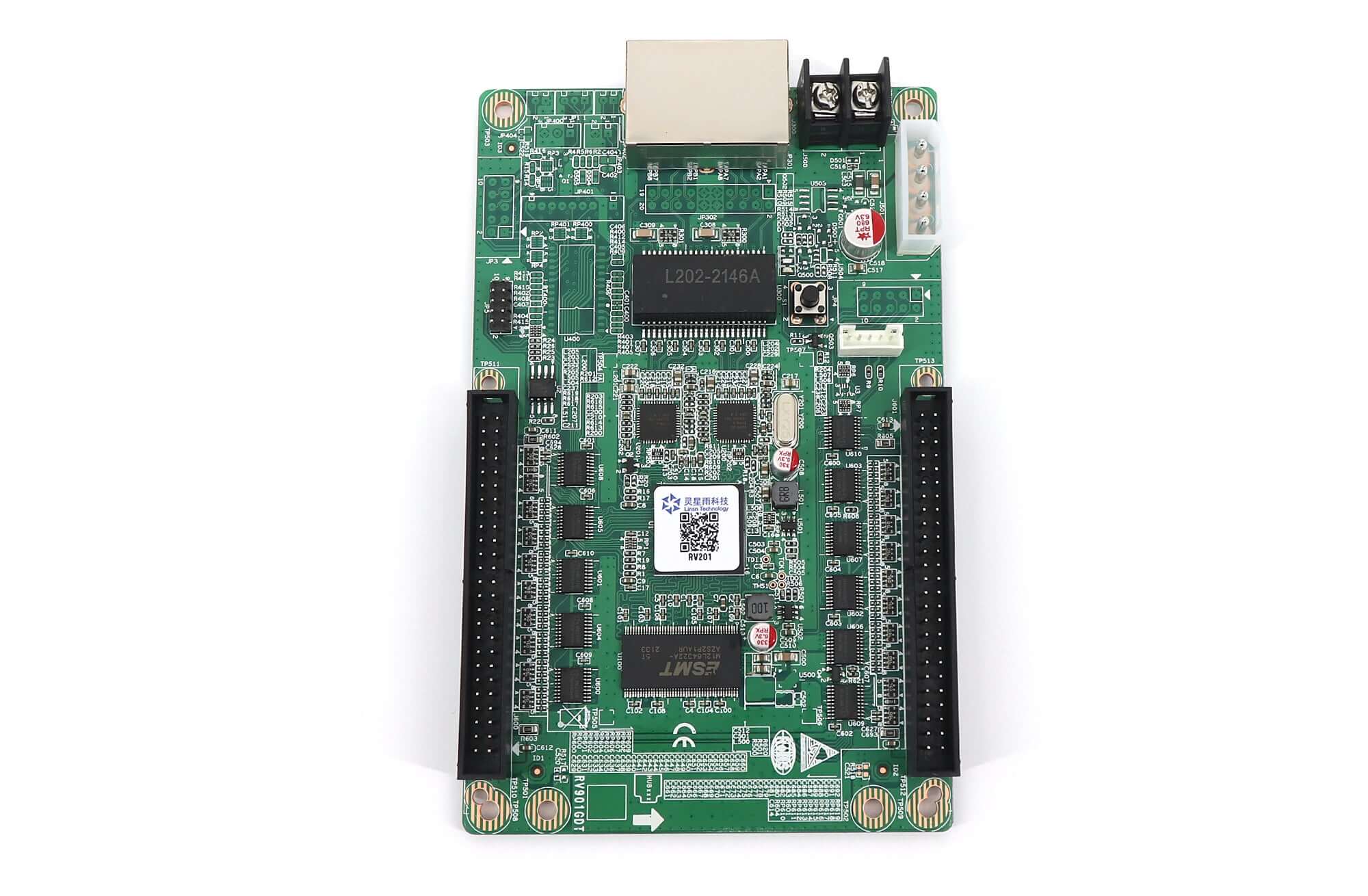

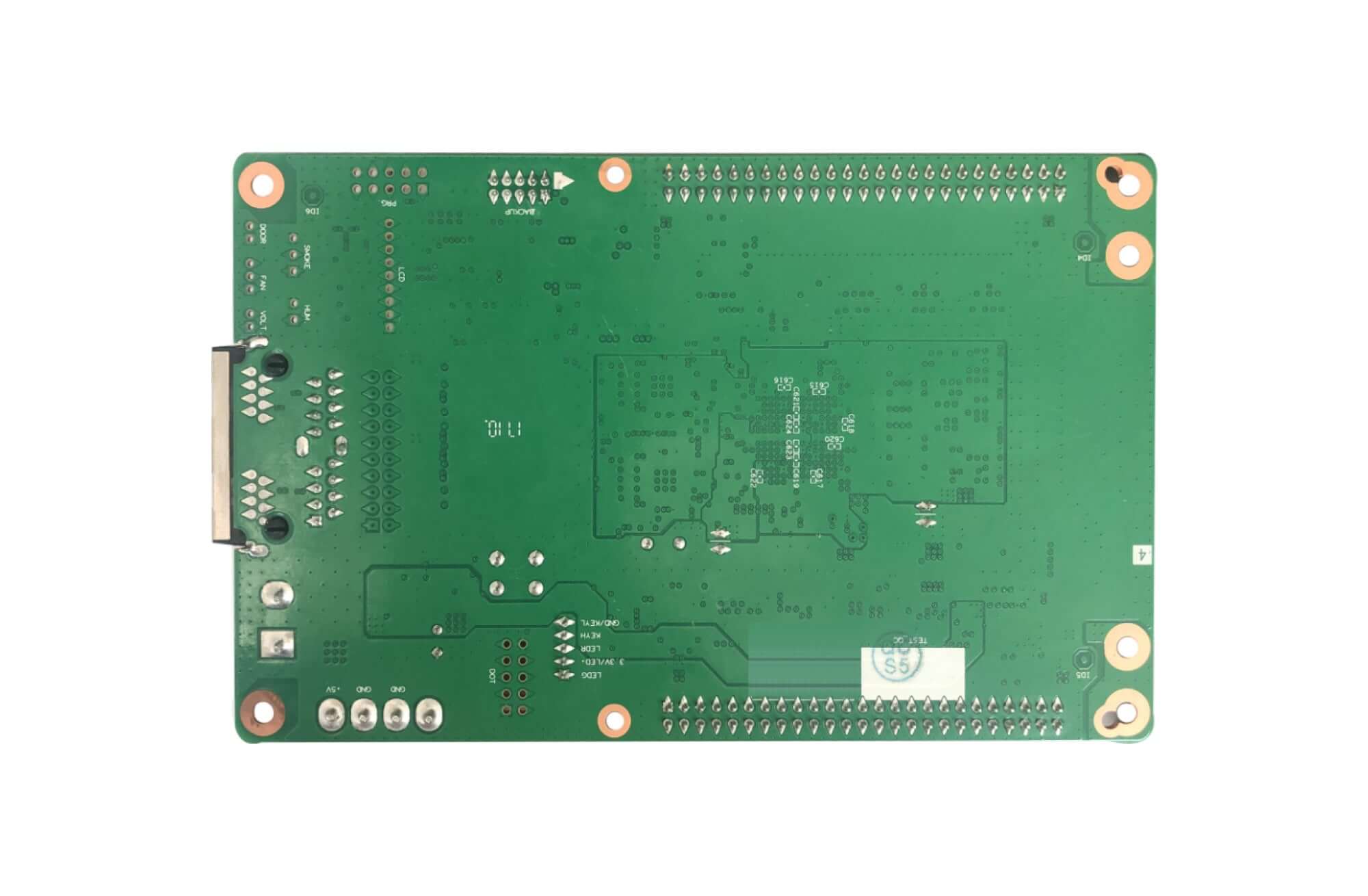

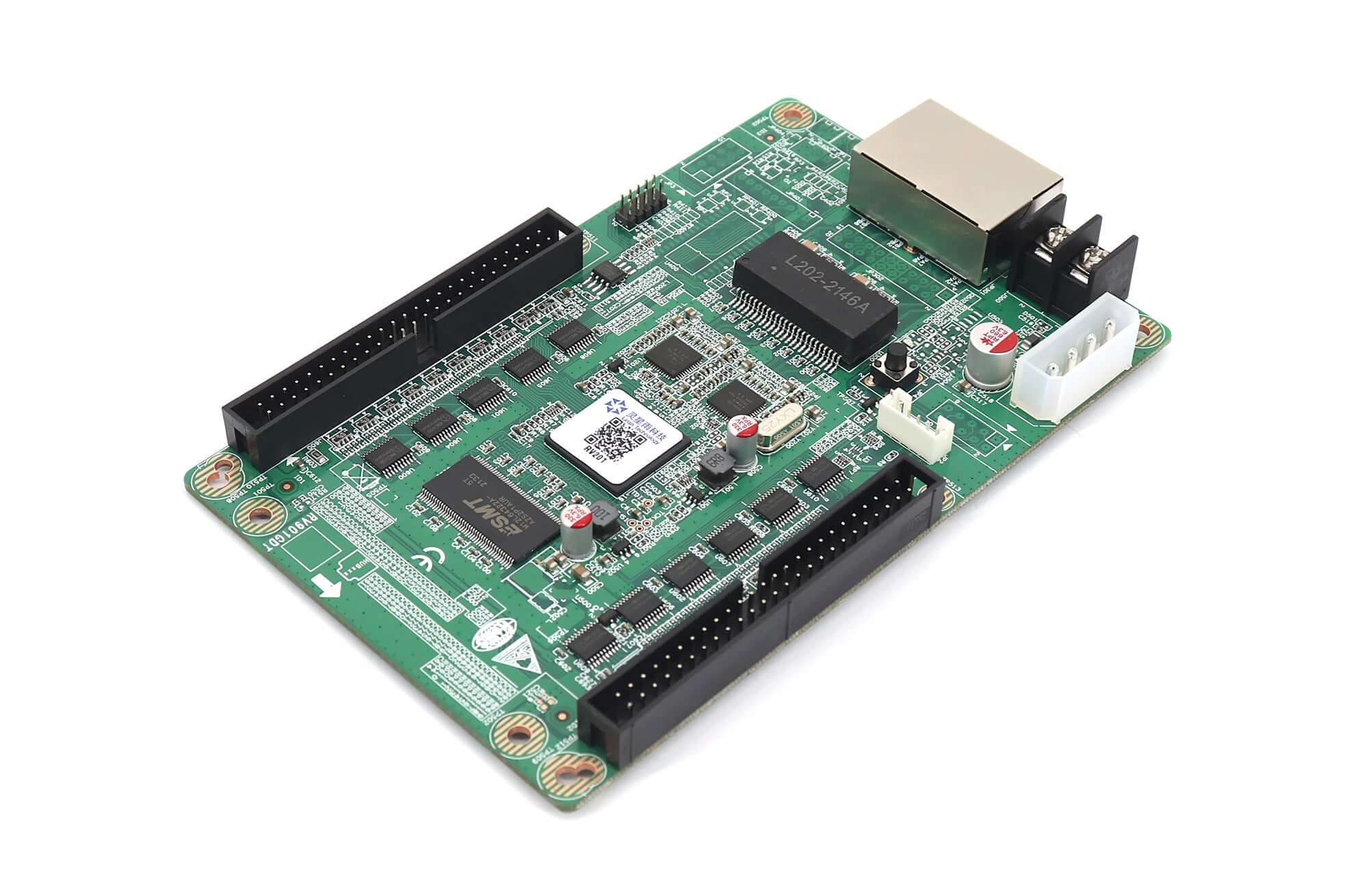

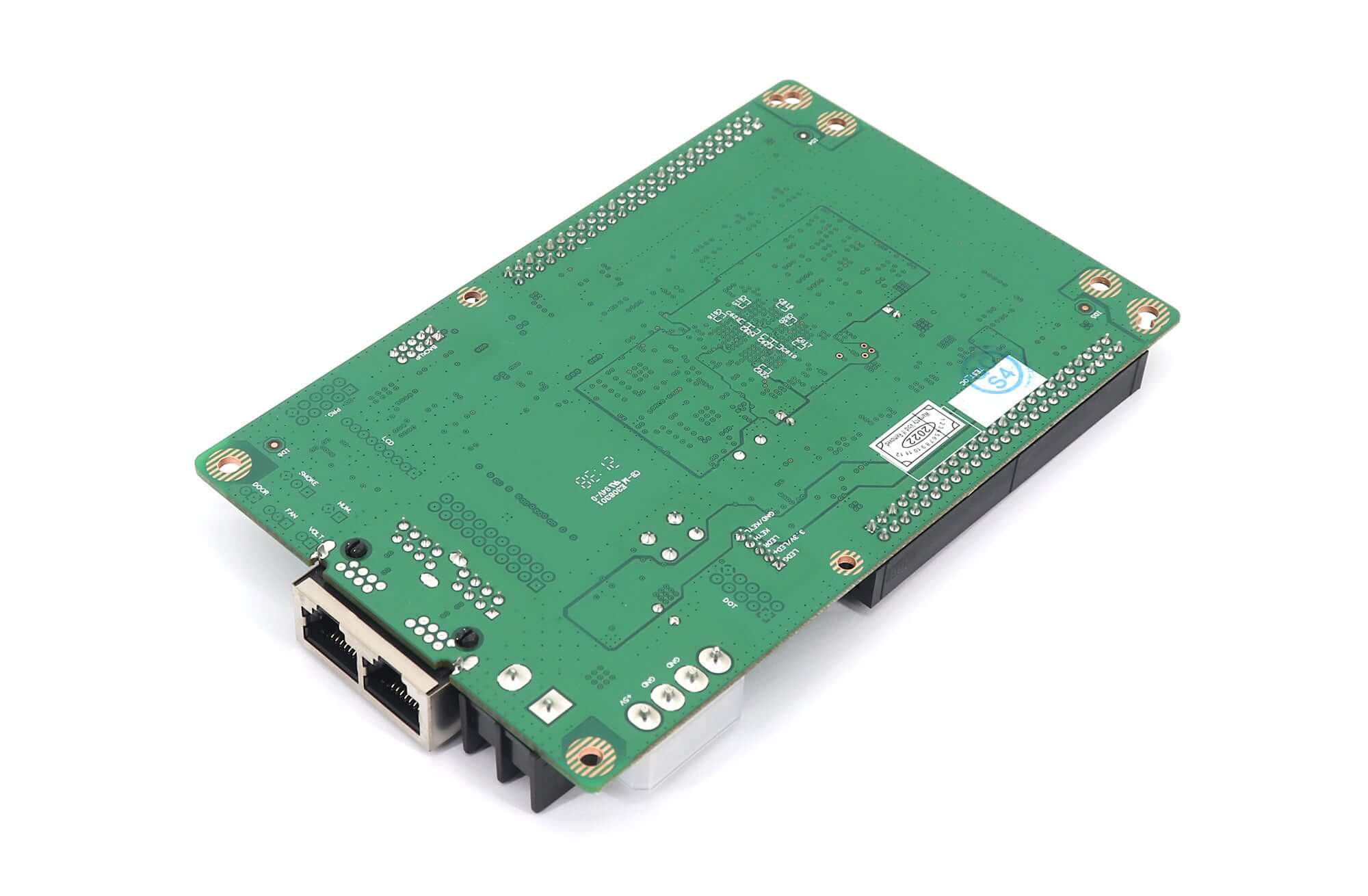

The Linsn RV201 is an LED receiving card with 50-pin module interfaces and a maximum documented load of 1024 × 256 pixels. It offers RGBR′, RGB and serial-data output modes, pixel brightness calibration and network-cable testing. The attached V3.0 manual documents hardware V4, dated March 2022.
Product specifications
| Parameter | Specification |
|---|---|
| Model | RV201; hardware V4 |
| Maximum loading | 1024 × 256 pixels; recommended loading depends on screen design |
| Data modes | 16 groups RGBR′; 20 groups RGB; 32 groups serial data |
| Module interface | 50-pin; front-side output |
| RJ45 orientation | 90 degrees |
| Image adjustment | Pixel brightness calibration; single-card color-space conversion |
| Diagnostics | Network-cable BER test; self-test button and extension port |
| Input voltage | DC 4.5–5.5 V |
| Rated power | 4 W |
| Operating conditions | −20°C to +70°C; 0–95% humidity |
| Dimensions / weight | 144.0 × 91.2 mm; 90 g |
Data modes and replacement checks
The normal and 20-group parallel modes use different 50-pin signal assignments. Match the HUB board, module driver and receiver configuration to the selected mode before connection.
The RV901T listing on this site recommends RV201 as an alternative. Check the connector layout, pinout, cabinet mapping and saved configuration before substituting it; the recommendation does not establish an unchanged installation.
The manual describes high-refresh and high-grayscale operation without specifying a numerical result for every module. Confirm achievable settings with the intended driver IC and scan configuration.
Frequently asked questions
1. What is the RV201 maximum loading?
The attached specification lists up to 1024 × 256 pixels, with recommended loading dependent on the screen design.
2. Does RV201 use the same pinout in all data modes?
No. The manual provides separate normal and 20-group parallel-mode pinouts for the 50-pin interfaces.
3. Can RV201 replace RV901T?
RV201 is the alternative recommended on this site’s RV901T page. Confirm connectors, pinout, module configuration and cabinet mapping before replacing the card.
4. What power and size does RV201 require?
The hardware V4 manual lists DC 4.5–5.5 V, 4 W rated consumption, dimensions of 144.0 × 91.2 mm and a weight of 90 g.
Download specification
| Weight | 0.3 kg |
|---|
