Linsn RV902H LED Receiving Card | Monitoring & Hot Backup
$ 23.40

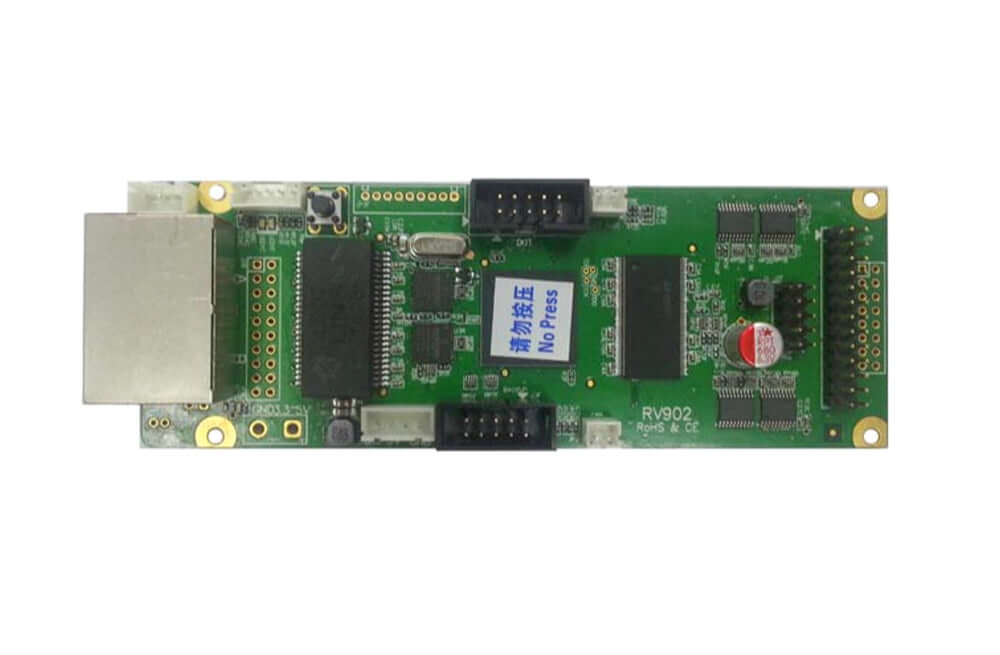

Linsn RV902H LED receiving card with listed 1024 × 256 loading, color correction, cabinet monitoring and dual-receiver hot backup. Confirm H-version compatibility.
10000 in stock
Product overview
The Linsn RV902H is listed as an LED display receiving card with color correction, configuration functions, cabinet monitoring and dual-receiver hot backup. The source description groups RV902 and RV902H together and describes an upgrade from RV802, so confirm the exact H-version hardware when ordering a replacement.
Product specifications
| Parameter | Specification |
|---|---|
| Listed model | RV902H; source text also refers to RV902 |
| Maximum loading in source | 1024 × 256 pixels |
| Signal processing | Up to 18-bit grayscale per red, green and blue channel |
| Single-pixel correction | 1024 levels |
| Color input support | 12-bit HDMI color requires a TS901 sending card |
| Configuration / color functions | RCG file functions, program copying and single-card color-space conversion |
| Backup | Dual-receiver hot backup |
| Diagnostics | Network-cable error test; ribbon-cable fault detection; pixel fault detection with supported driver IC |
| Cabinet monitoring | Door, temperature, 2 fan-speed channels and 3 voltage channels |
| Separate accessories | Humidity sensor and smoke module |
Confirm the H-version and system configuration
The original page states RV802 compatibility for the RV902 family. Check the receiver revision, module connectors, driver IC, scan mode and RCG configuration before assuming an RV902H can directly replace a particular installed card.
The 12-bit HDMI statement requires a TS901 sender. It does not identify an HDMI input socket on this receiving card. Likewise, pixel-fault detection requires a supported driver IC on the display module.
No model-specific PDF is attached to this product description. Power ratings, dimensions and connector pinouts are not supplied here and should be verified from the matching RV902H documentation before installation.
Frequently asked questions
1. Is RV902H a receiving card or a sending card?
This product is listed as an LED receiving card. It operates within a control system that includes separate sending hardware.
2. Can RV902H replace RV802?
The source text describes RV902-family compatibility with RV802. Confirm the exact RV902H revision, connectors and module configuration before replacing a card.
3. Does RV902H support direct HDMI input?
The listed 12-bit HDMI color feature requires a TS901 sending card. The original description does not document a direct HDMI socket on RV902H.
4. Are humidity and smoke monitoring modules included?
The source description says the humidity sensor and smoke module must be purchased separately. Pixel-fault monitoring also requires a compatible driver IC.
| Weight | 0.3 kg |
|---|
