Meanwell HSN-200-5B Switching Power supply

Meanwell HSN-200-5B Switching Power supply

Name: Meanwell HSN-200-5B Switching Power supply
Brand: Meanwell
SKU: Meanwell-HSN-200-5B
Price: 27 USD
Availability: InStock

$ 27.00

10000 in stock

SKU: Meanwell-HSN-200-5B Categories: LED Power Supply, Meanwell, OrderlyEmails - Recommended Products Tags: Less than $100.00, Meanwell Brand: Meanwell

MEAN WELL HSN-200-5B LED Switch Power Supply FEATURES:

MEAN WELL HSN-200 Power Supply is a ultra low profile slender sign panel power supply with up to 200W rated-power. The HSN-200 features two types with different input range: A-Type accepts 90~132VAC and B-Type accepts 180~264VAC. The output side supplies 4.2VDC and 5VDC, making HSN-200 work with both old and new generations of sign panel driver ICs, greatly raising the system design flexibility. This series incorporates non-PFC design, achieving a high efficiency up to 88% with a low cost, and the system performance is enhanced so both energy saving and electricity expense reduction can be fulfilled.

MEAN WELL HSN-200-5B LED Switch Power Supply Features:

31mm ultra low profile, slim design

Input range: A-Type, 90~132VAC; B-Type, 180~264VAC

Rated power up to 200W (150W for 90~132VAC input models)

High working efficiency up to 88%

Fanless design, cooling by conduction via bottom plate (minimal size 450 x 450 x 3 mm)

-25°C ~ +70°C working temperature

(HSN-200 must be firmly mounted on an aluminum plate or the cabinet of sign panel module)

Low leakage current <1mA

Protections: short circuit / overload / over voltage / over temperature

Dimension (LxWxH): 210x 62x 31 mm

MEAN WELL HSN-200-5B LED Switch Power Supply Applications:

Indoor and Outdoor LED Electronic Signage

LED Moving Signs

LED TV Walls

MEAN WELL HSN-200-5B LED Switch Power Supply Parameter：

Part Number	Output Voltage-Channel 1	Output Power	Input Voltage	Output Current-Channel 1
HSN-200-4.2B	4.2 VDC	168 W	180 VAC to 264 VAC/254 VDC to 373 VDC	40 A
HSN-200-4.2A	4.2 VDC	126 W	90 VAC to 132 VAC	30 A
HSN-200-5B	5 VDC	200 W	180 VAC to 264 VAC/254 VDC to 373 VDC	40 A
HSN-200-5A	5 VDC	150 W	90 VAC to 132 VAC	30 A

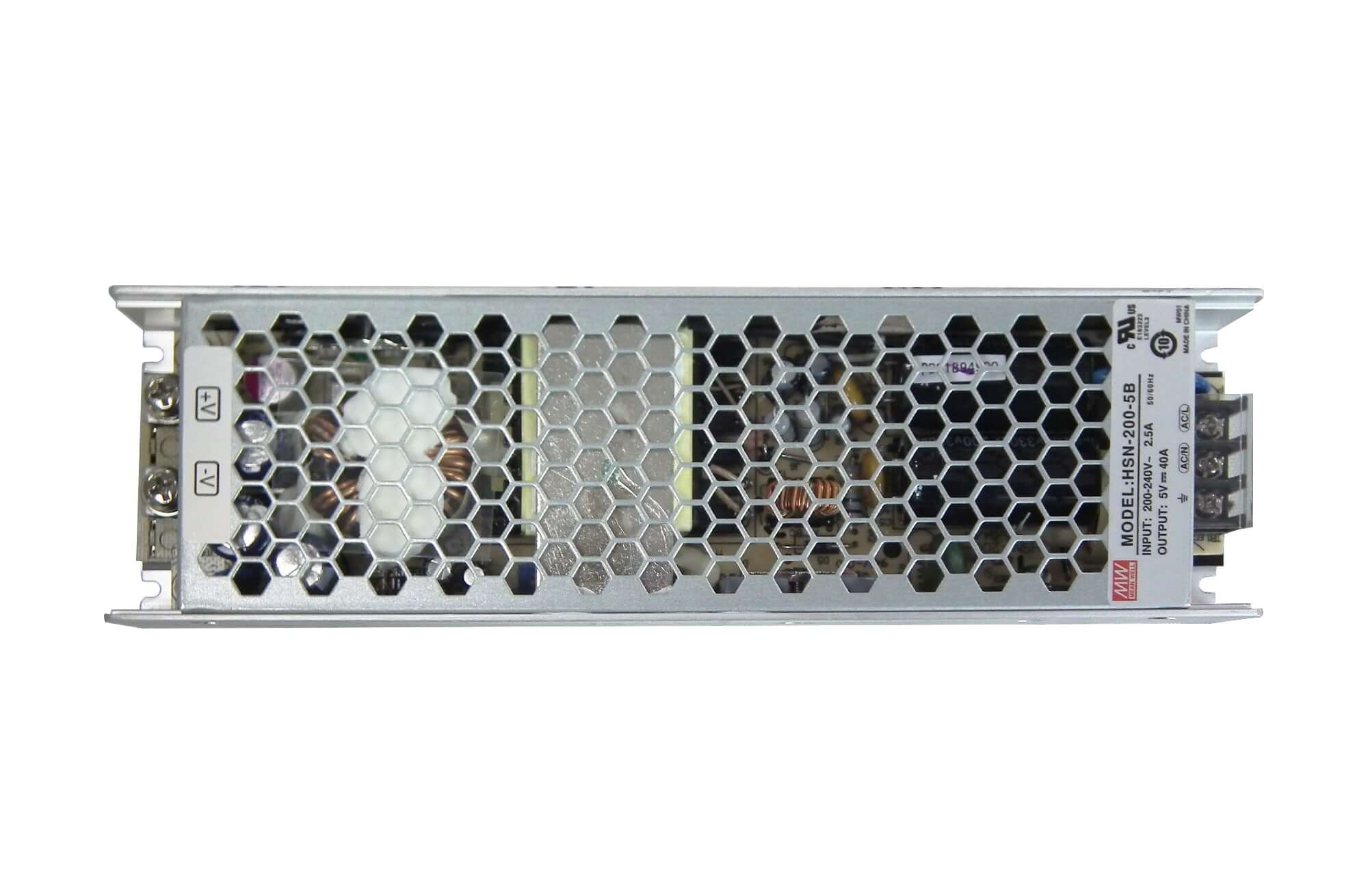

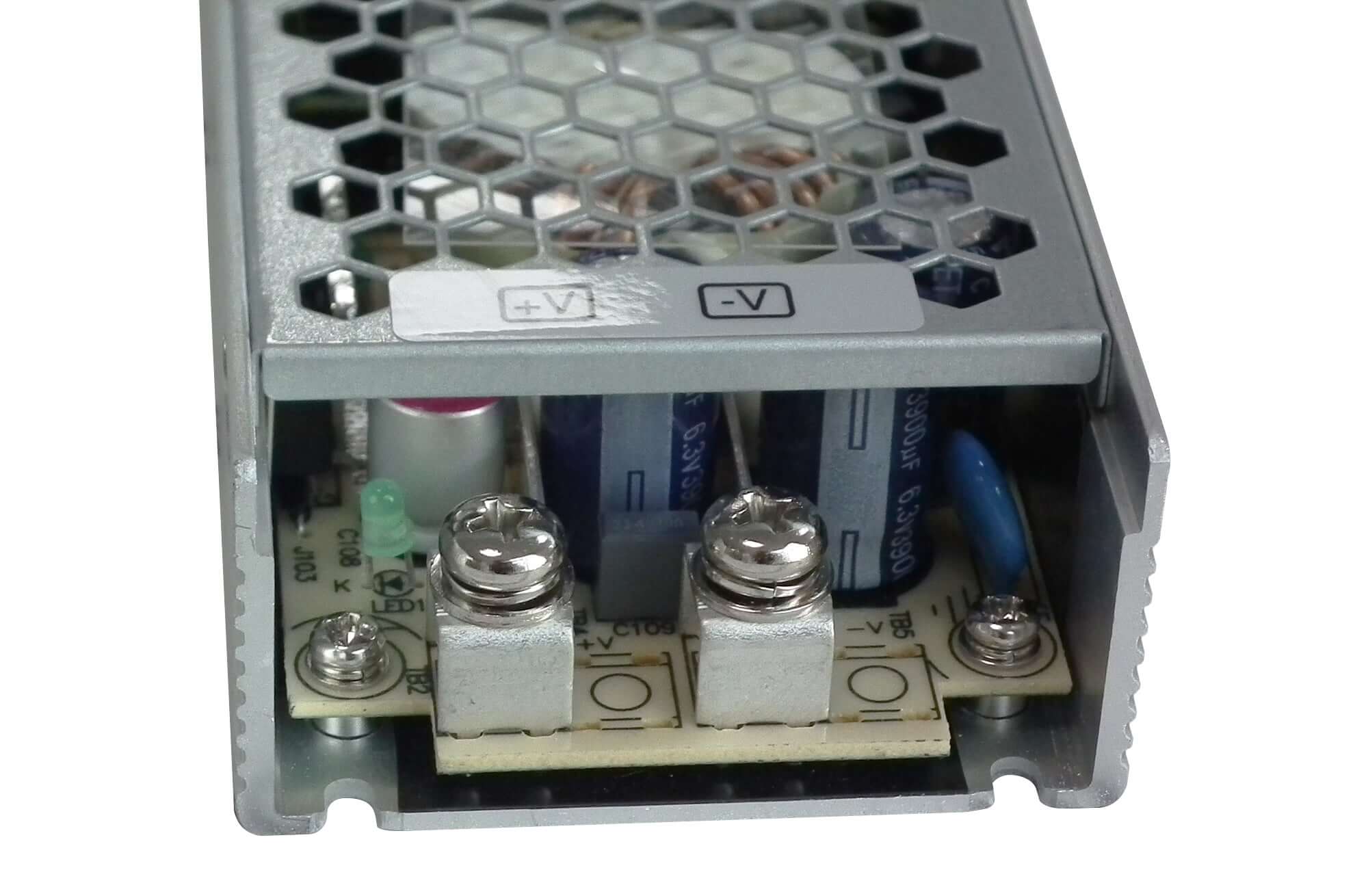

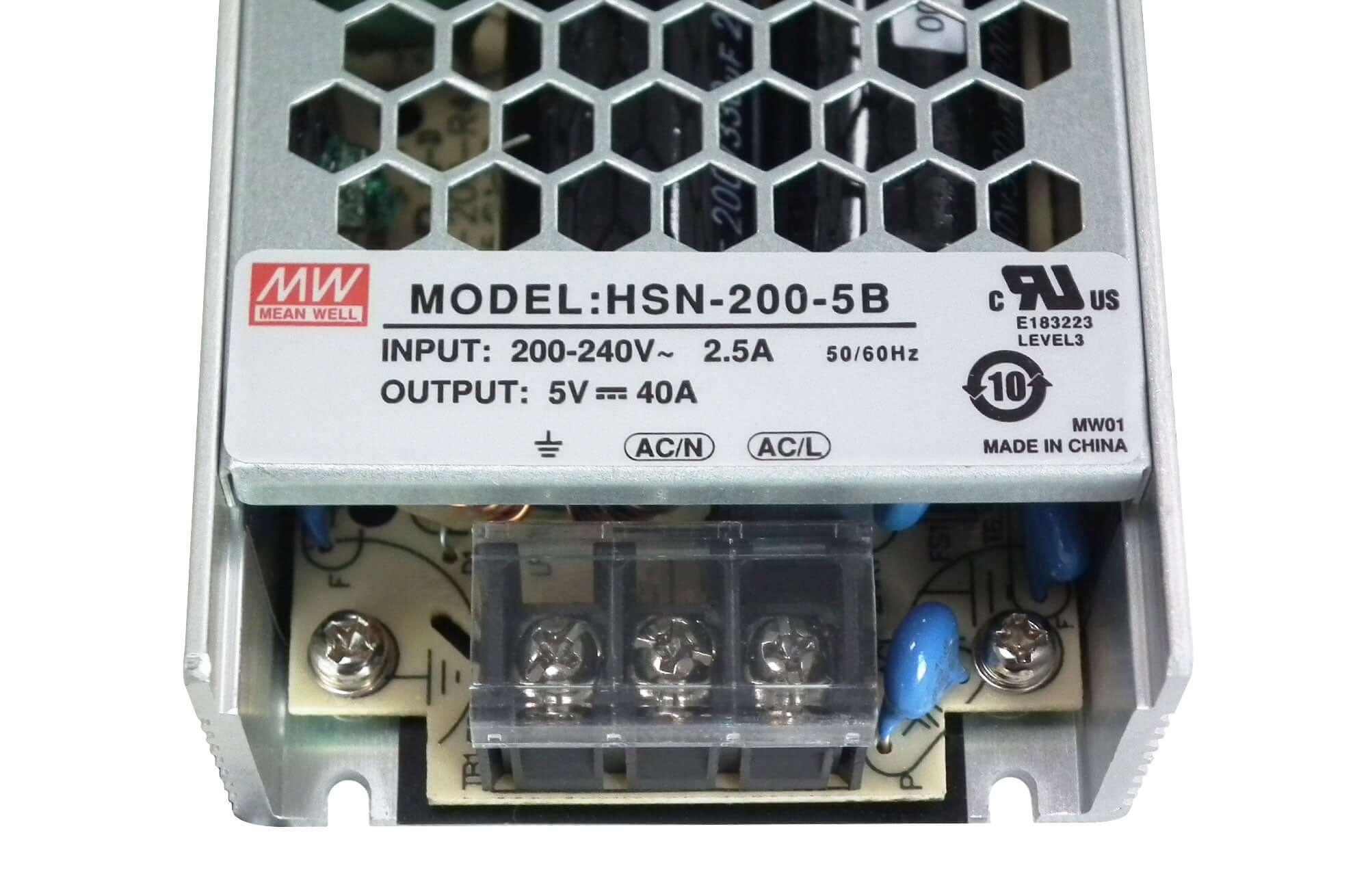

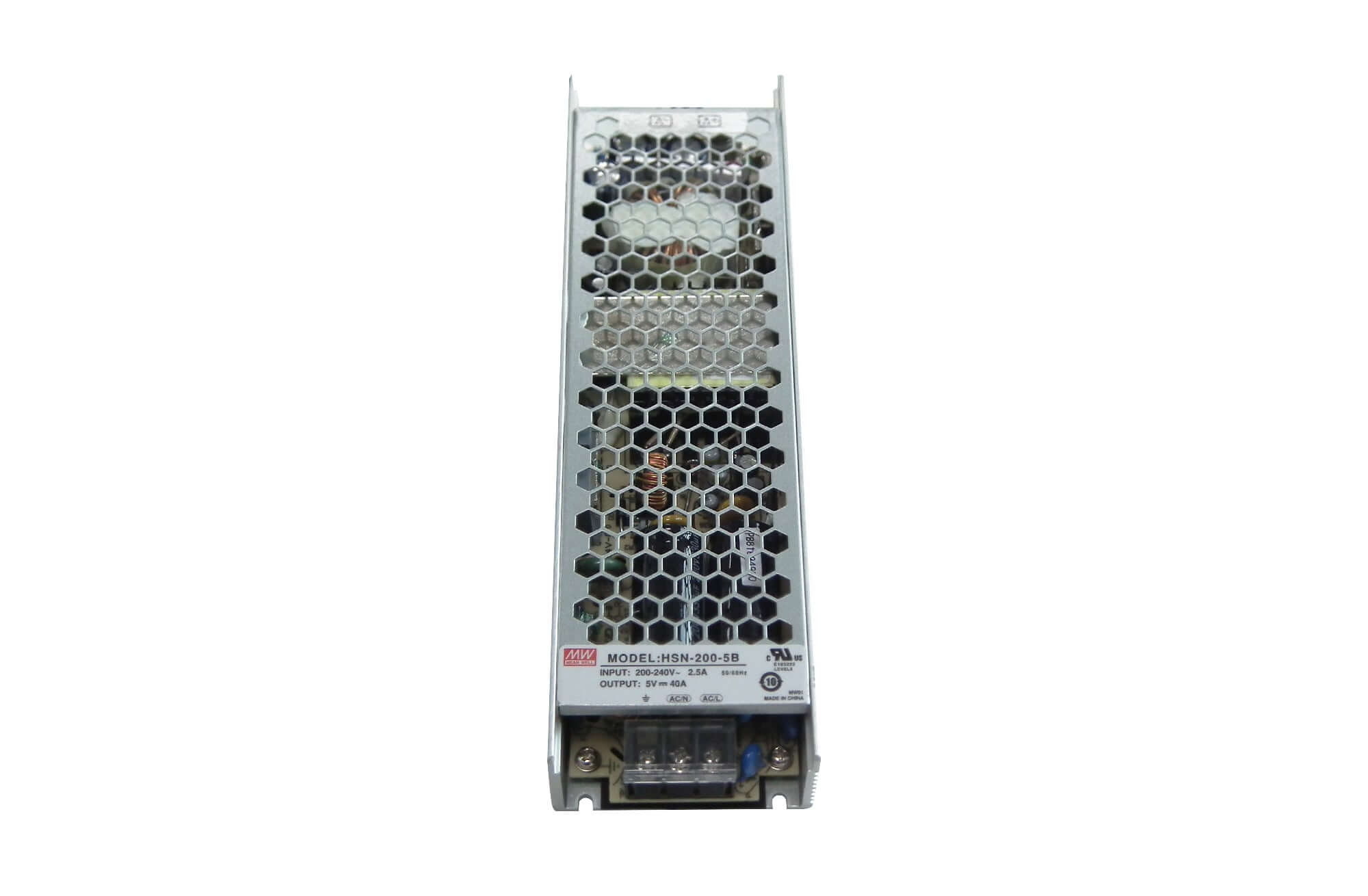

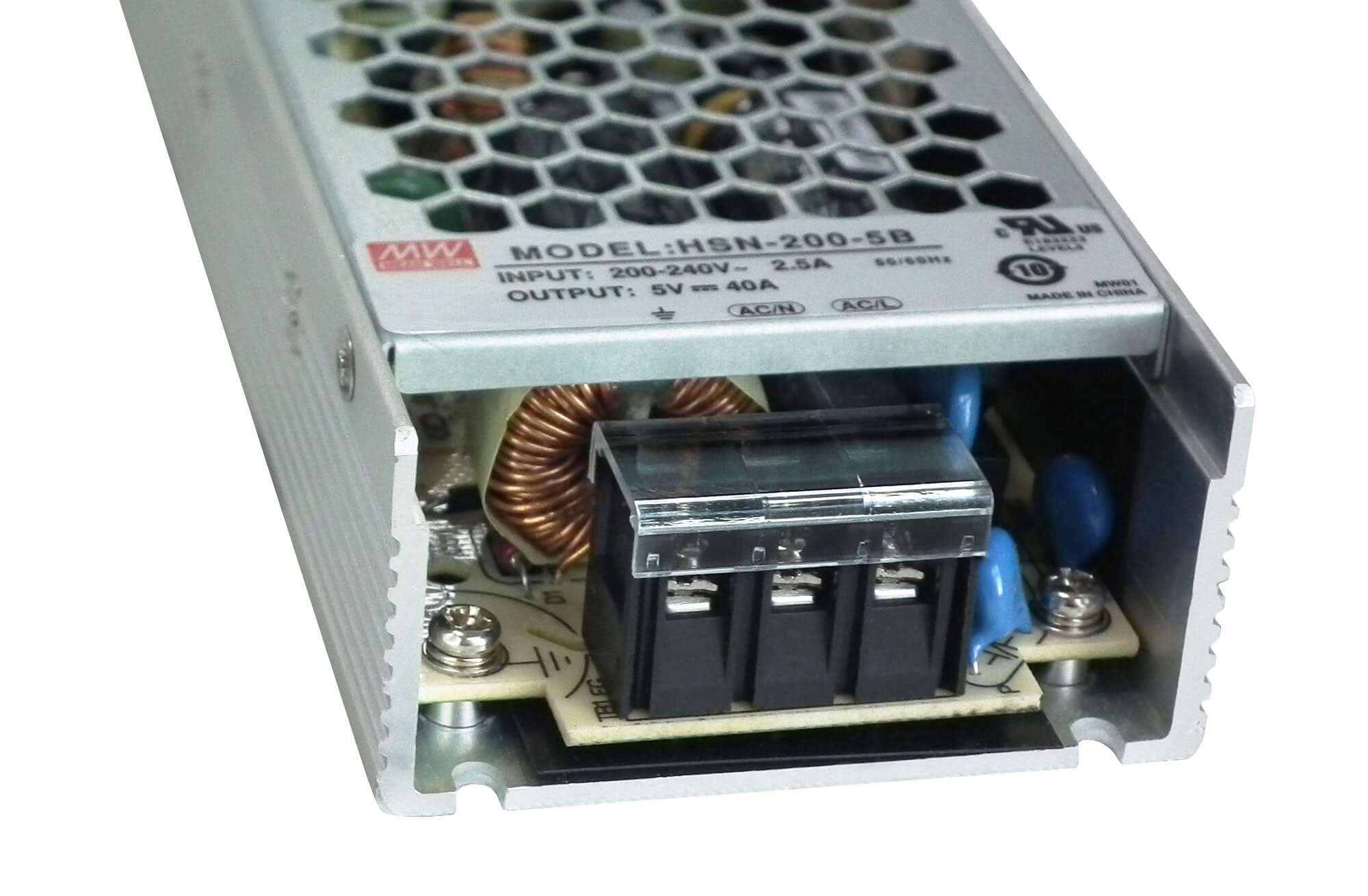

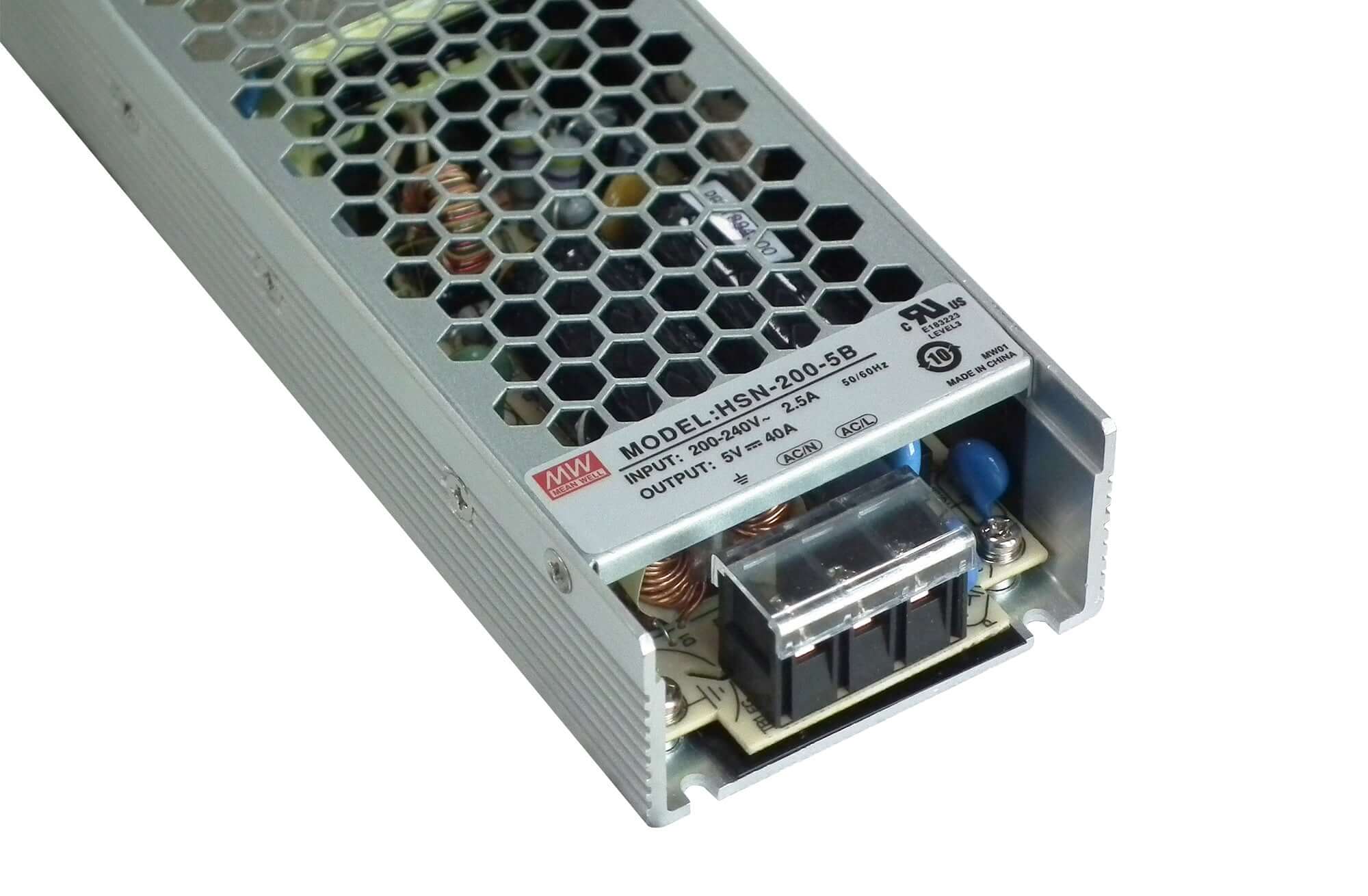

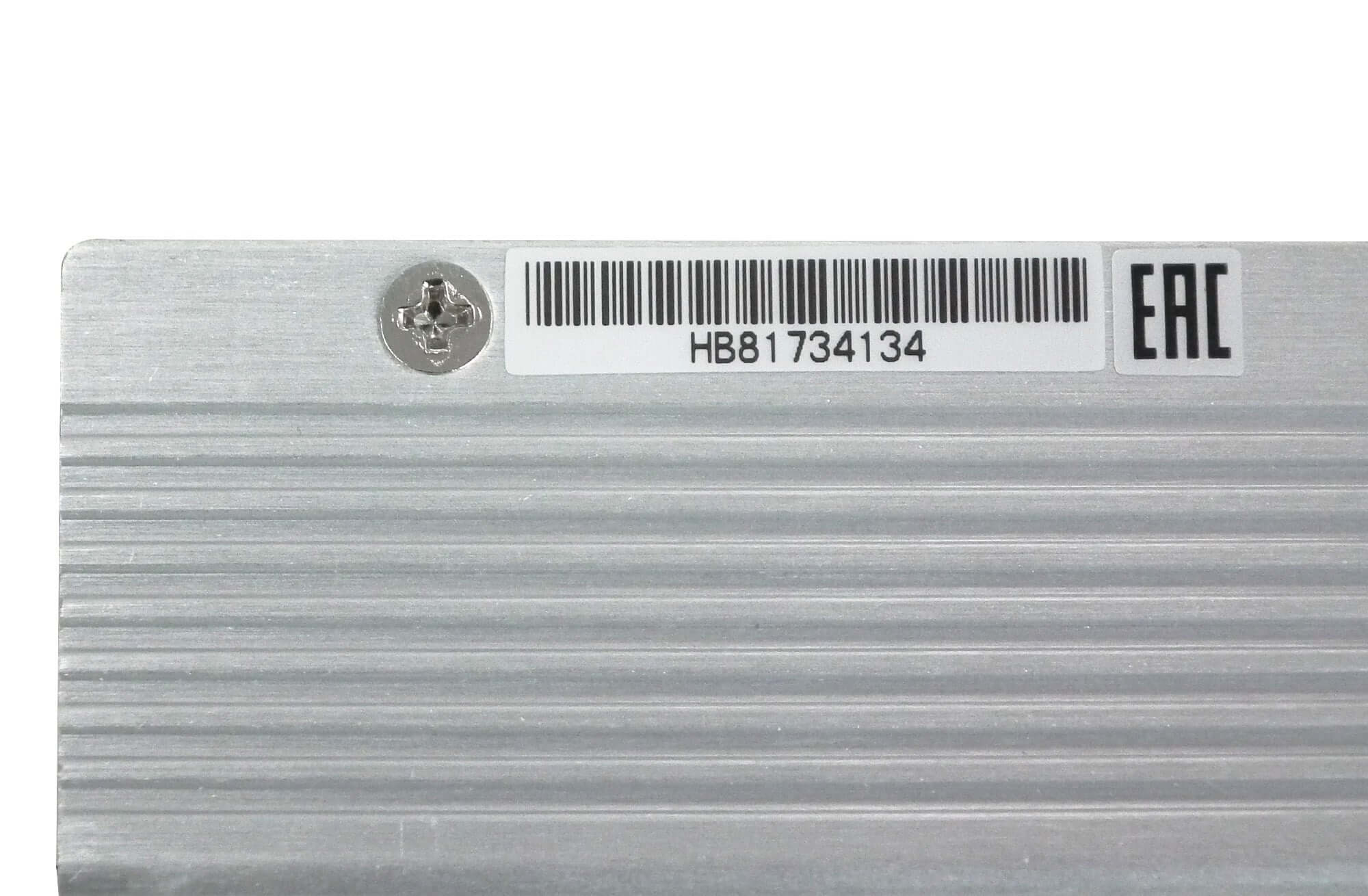

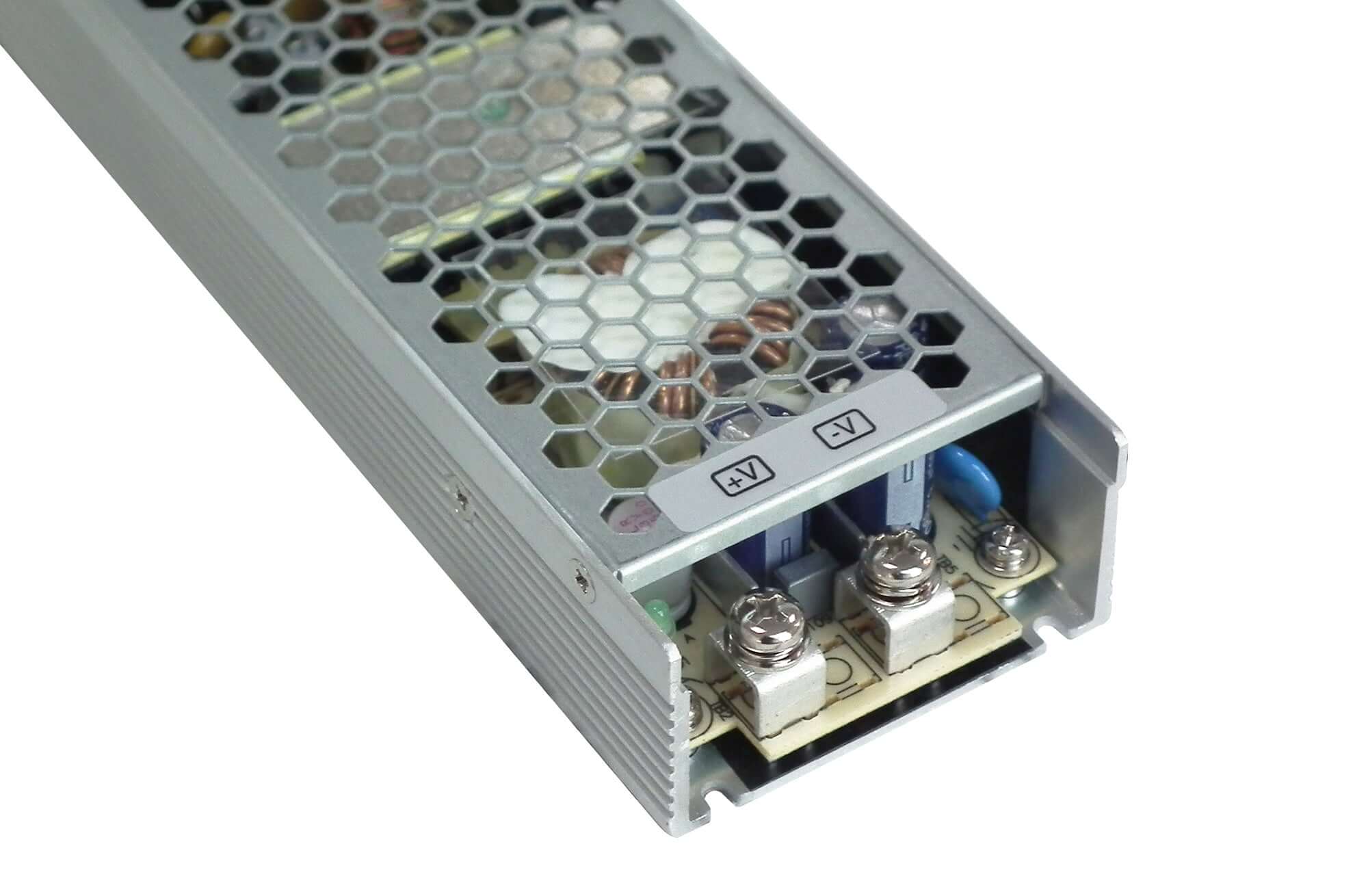

More pictures of Meanwell HSN-200-5B Switching Power supply:

HSN-200-5B

Download Specification:
Meanwell HSN-200-5B Switching Power supply Specification

Weight	0.66 kg
