NovaStar MRV208 HUB75E LED Receiving Card
$ 13.40
NovaStar MRV208 LED receiving card with eight HUB75E connectors, 16 parallel RGB data groups and a 256 × 256-pixel reference capacity. Check MRV208 versus MRV208-1 and the cabinet configuration before replacement.

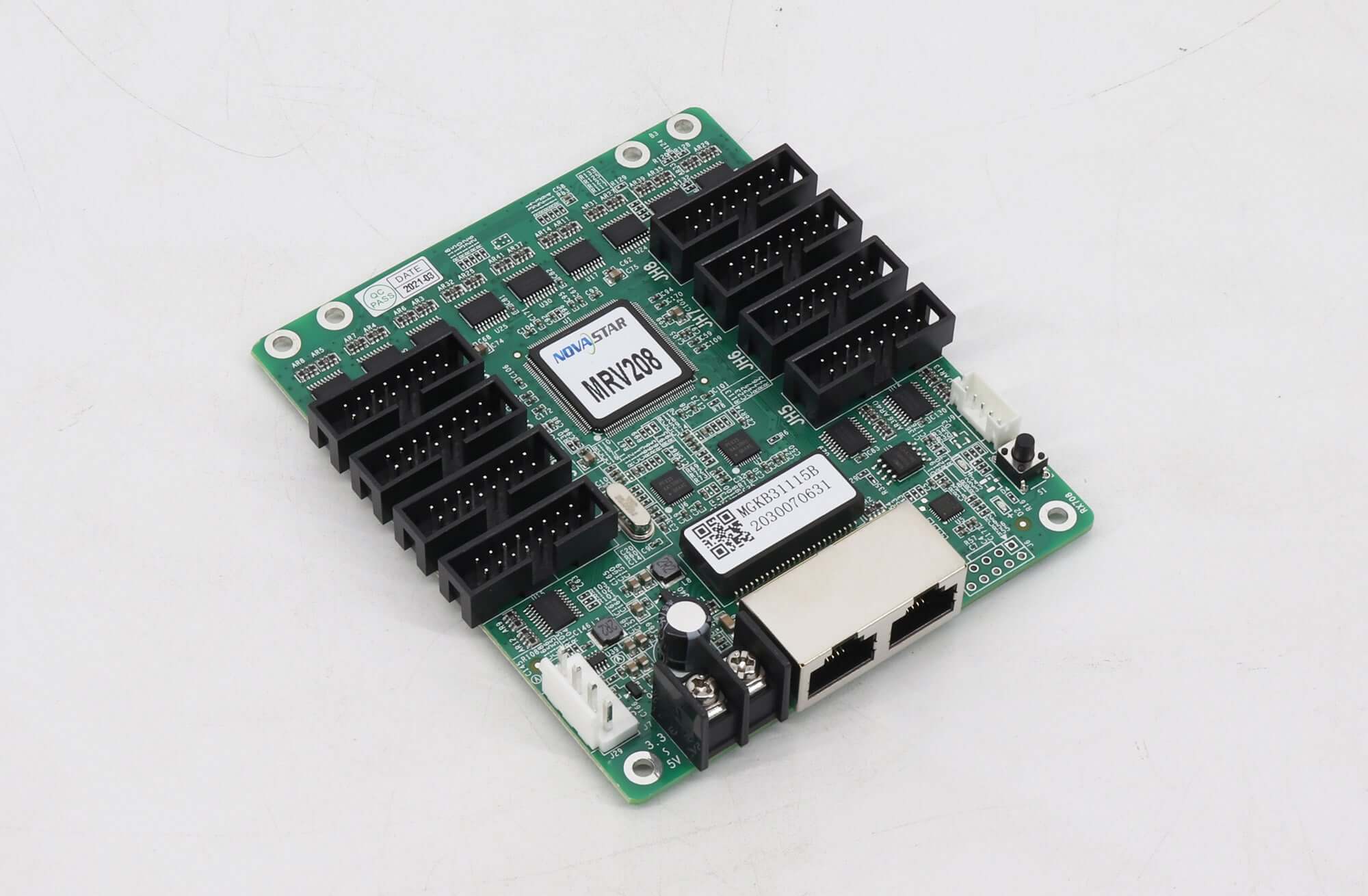

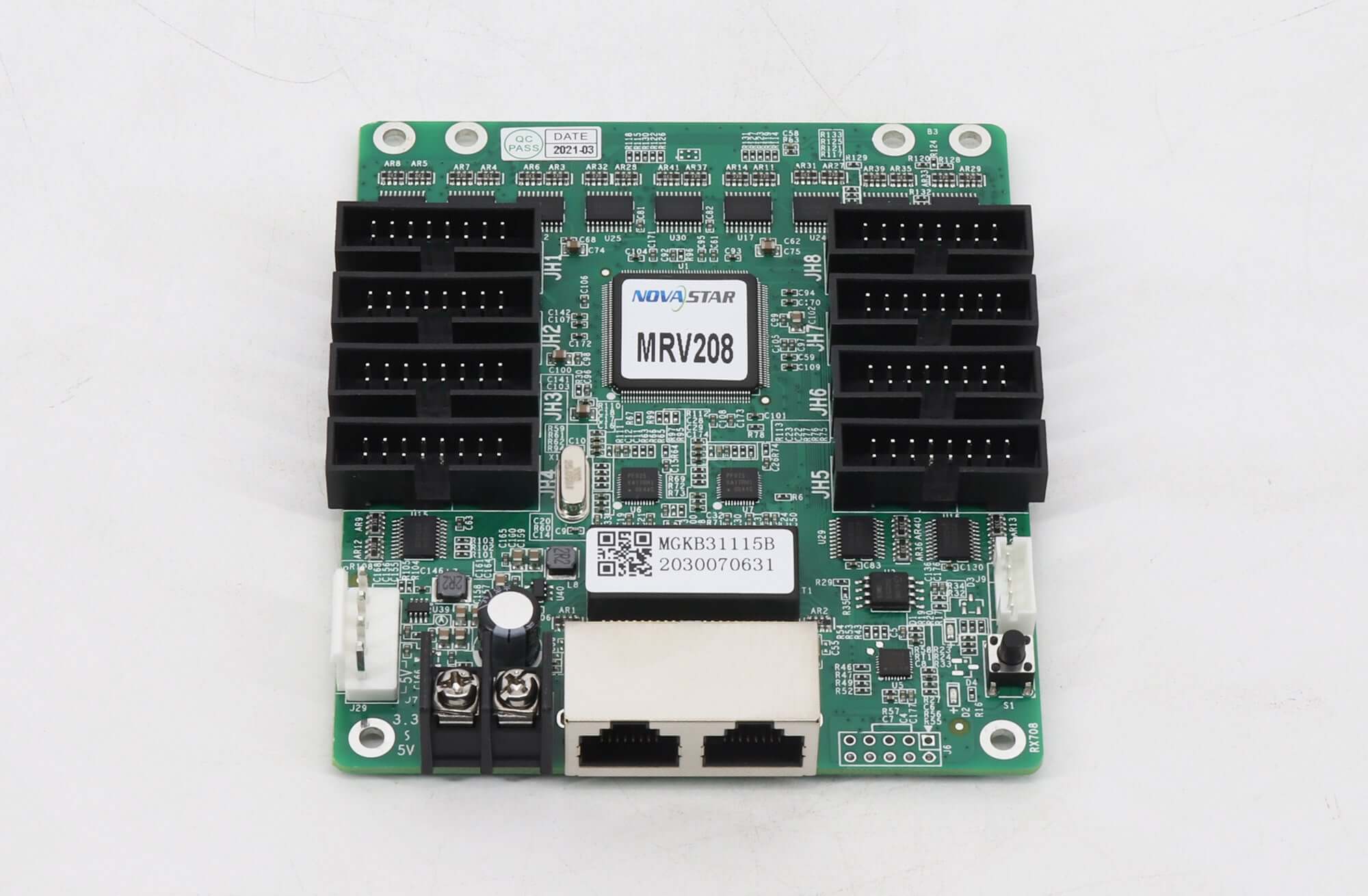

NovaStar MRV208 LED Receiving Card
The NovaStar MRV208 is a receiving card for LED video displays, with eight HUB75E connectors and up to 16 groups of parallel RGB data. Use the exact model and cabinet configuration when selecting a replacement card.
Availability notice retained from the original listing: MRV416 and MRV412 are listed as out of production and unavailable. This notice concerns those two models, not the MRV208 title of this product page.
MRV208 Parameter Table
| Parameter | Specification |
|---|---|
| Maximum resolution | 256 × 256 pixels at 60 Hz |
| RGB data | Up to 16 parallel groups |
| Module connectors | 8 × standard HUB75E |
| Certification listed | RoHS; EMC Class A |
Check MRV208 Versus MRV208-1
MRV208 and MRV208-1 have separate specifications. The MRV208-1 V1.1.0 document states a maximum of 256 × 256 pixels at 60 Hz for PWM driver ICs. A similar model name or connector count is not enough to confirm interchangeability.
The original listing identifies MRV208 as a replacement option for MRV328. Before ordering, compare the module driver IC, scan configuration, connector pinout and receiving-card configuration with the existing installation.
Related Models in the Original Listing
| Model | Original connector / RGB-group reference | Original replacement reference |
|---|---|---|
| MRV416 | 16 HUB75 connectors / 32 RGB groups | MRV366 |
| MRV412 | 12 HUB75 connectors / 24 RGB groups | MRV336 |
| MRV208 | 8 HUB75E connectors / 16 RGB groups | MRV328 |
These are different receiving-card models. Use each model’s own document for resolution and compatibility; the older family comparison is not a shared specification.
Product Image
Original Download
Original MRV412 receiving-card specification link (PDF)
This retained link is labelled MRV412 and is not an MRV208 datasheet. If it does not open, or you need the MRV208 or MRV208-1 document, contact EagerLED with the exact card model.
Frequently Asked Questions
What resolution does one MRV208 receiving card support?
NovaStar’s MRV208 V1.0.2 specification lists up to 256 × 256 pixels at 60 Hz. Confirm the module configuration for the intended cabinet.
Are MRV208 and MRV208-1 the same card?
They are separately documented models. In particular, MRV208-1 V1.1.0 qualifies its loading specification for PWM driver ICs. Match the complete model name before choosing a replacement.
How many HUB75E connectors does the MRV208 have?
It has eight standard HUB75E connectors and supports up to 16 groups of parallel RGB data.
Can I replace an MRV328 with an MRV208?
The original listing presents MRV208 as a replacement option. Confirm the module wiring, driver IC, scan settings and configuration file before changing cards; it should not be treated as an unconditional plug-in replacement.
Why does this page link to an MRV412 PDF?
The original page covered several MRV models and included that document. The link has been retained for reference. Request the MRV208 document when checking this product’s specifications.
